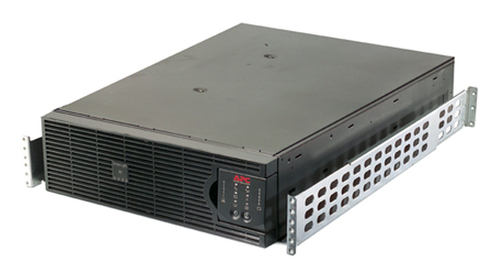

APC Smart-UPS RT 6000VA uninterruptible power supply (UPS) Double-conversion (Online) 6 kVA 4200 W 6 AC outlet(s)
Part number SURTD6000RMXLP3U
SMART-UPS RT 6000VA RM 208V L14-30P 6OUT CUST PAYS FRT
Replacement battery (1) is available
6kVA/4.2kW double-conversion on-line pure sine wave 3U rackmount UPS
Rack/Tower convertible (rail kit included)
Manufacturer
APC BY SCHNEIDER ELECTRIC
Part number
SURTD6000RMXLP3U
Condition
New
Category
Power & Rack Equipment › Power Equipment
1GPA category
Hardware
Overview
Smart-UPS On-Line provides high-density, true double-conversion online power protection for servers, voice/data networks, medical labs, and light industrial applications. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute™ management software provides unattended graceful shutdown of network operating systems. All models 6 kVA and above include an integrated network management card for remote management (optional on models below 6 kVA). The entire Smart-UPS On-Line family provides value to customers with demanding power conditions, including a very wide input voltage window, extremely tight output voltage regulation, internal bypass, and input power factor correction.
Specifications
Features
UPS topology
Double-conversion (Online)
Output power capacity
6 kVA
Output power
4200 W
Waveform
Sine
Input operation voltage (min)
85 V
Input operation voltage (max)
236 V
Input frequency
50/60 Hz
Output frequency
50/60 Hz
Output voltage regulation
5%
Surge energy rating
480 J
Heat dissipation
1780 BTU/h
Efficiency
90%
Crest factor
3:1
Emergency Power Off (EPO)
Yes
Output voltage Total Harmonic Distortion (THD)
2%
Noise level
55 dB
Audible alarm(s)
Yes
Audible alarm modes
Alarm when on battery, Low battery alarm

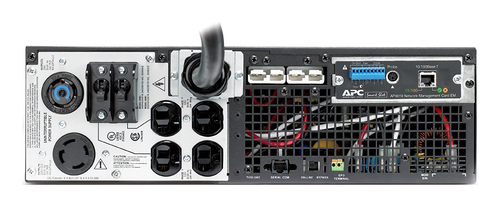

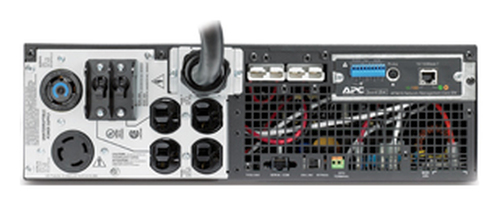

Ports & interfaces
AC outlet types
NEMA 5-20R, NEMA L6-30R, NEMA L14-30R
Power plug
NEMA L14-30P
AC outlets quantity
6 AC outlet(s)
USB port
Yes
Serial interface
Yes
Serial interface type
RS-232
Network card slot
Yes
Emergency Power Off (EPO) connector
Yes
Battery
Battery technology
Lead-Acid
Number of batteries included
2 pc(s)
Battery life (max)
5 year(s)
Battery recharge time
2.5 h
Replacement battery cartridge
APCRBC140
Design
Form factor
Rackmount
Rack capacity
3U
Cable length
3.05 m
Product colour
Black
International Protection (IP) code
IP20
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 15240 m
Certificates
Certification
CSA,FCC Part 15 Class A,UL 1778
Packaging content
Rack mount kit
Yes
Management card included
Yes
Manual
Yes
Weight & dimensions
Width
432 mm
Depth
660 mm
Height
130 mm
Weight
58.1 kg
Packaging data
Package width
980 mm
Package depth
603 mm
Package height
347 mm
Package weight
72.3 kg
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
