APC BY SCHNEIDER ELECTRIC

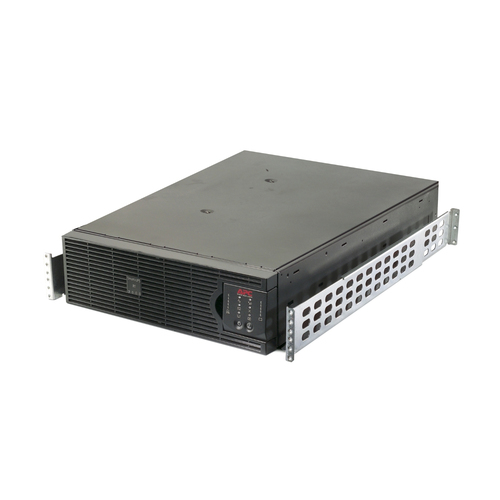

APC Smart-UPS RT 3000VA 230V - Marine
Part number SURTD3000XLIM
SMART-UPS MARINE RT 3000VA 230V ONLINE IEC 320 C19
- Double-conversion (Online)
- 3 kVA 2100 W
- 10 AC outlet(s)
- Sealed Lead Acid (VRLA)
- Rackmount Black
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- SURTD3000XLIM
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
High density, double-conversion on-line power protection with scalable runtime.
Specifications
Features
| UPS topology | Double-conversion (Online) |
|---|
| Output power capacity | 3 kVA |
|---|
| Output power | 2100 W |
|---|
| Input operation voltage (min) | 100 V |
|---|
| Input operation voltage (max) | 280 V |
|---|
| Input frequency | 50/60 Hz |
|---|
| Output operation voltage (min) | 220 V |
|---|
| Output operation voltage (max) | 240 V |
|---|
| Surge energy rating | 480 J |
|---|
| Efficiency | 92% |
|---|
| Crest factor | 3:1 |
|---|
| Emergency Power Off (EPO) | Yes |
|---|
| Output voltage Total Harmonic Distortion (THD) | 3% |
|---|
| Noise level | 55 dB |
|---|

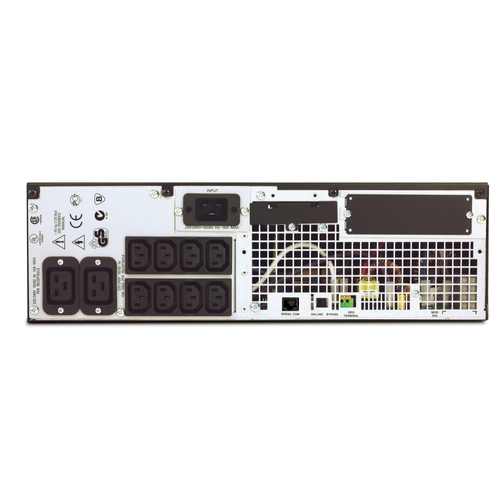

Ports & interfaces
| AC outlet types | C13 coupler, C19 coupler |
|---|
| AC outlets quantity | 10 AC outlet(s) |
|---|
| Number of output IEC jumpers | 2 |
|---|
| Ethernet LAN (RJ-45) ports | 1 |
|---|
Battery
| Battery technology | Sealed Lead Acid (VRLA) |
|---|
| Battery recharge time | 2.5 h |
|---|
Design
| Form factor | Rackmount |
|---|
| Rack capacity | 3U |
|---|
| Cable length | 2.44 m |
|---|
| Product colour | Black |
|---|
| LED indicators | Yes |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 55 °C |
|---|
| Storage temperature (T-T) | -15 - 45 °C |
|---|
| Operating relative humidity (H-H) | 0 - 95% |
|---|
| Storage relative humidity (H-H) | 0 - 95% |
|---|
| Operating altitude | 0 - 3000 m |
|---|
| Non-operating altitude | 0 - 15000 m |
|---|
Certificates
| Compliance certificates | RoHS |
|---|
Weight & dimensions
| Width | 130 mm |
|---|
| Depth | 660 mm |
|---|
| Height | 432 mm |
|---|
| Weight | 54.5 kg |
|---|
Packaging data
| Package weight | 63.6 kg |
|---|
Logistics data
| Harmonized System (HS) code | 85078000 |
|---|
Other features
| Dimensions (WxDxH) | 130 x 660 x 432 mm |
|---|
| Nominal output voltage | 230 V |
|---|
| Nominal input voltage | 230 V |
|---|
| Package dimensions (WxDxH) | 603 x 980 x 347 mm |
|---|
