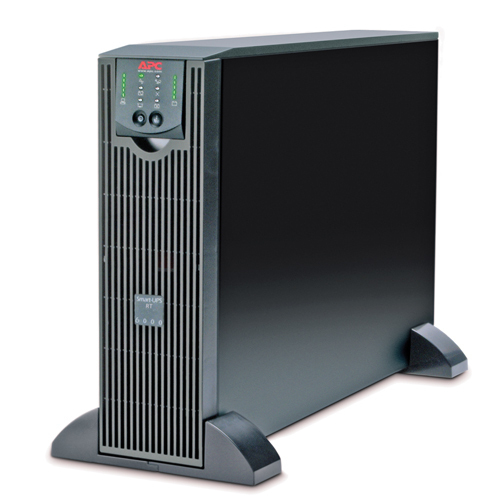

APC Smart-UPS RT 6000VA 230V uninterruptible power supply (UPS) 6 kVA 4200 W 14 AC outlet(s)
Part number SURT6000XLICH
APC SMART-UPS RT 6000VA 230V FOR CHINA
- 6 kVA 4200 W
- 14 AC outlet(s)
- Rackmount Black
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- SURT6000XLICH
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS overload condition or fault.
Scalable runtime
Allows additional run time to be quickly added as needed.
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Network manageable
Provides remote management of the UPS over the network.
InfraStruXure Manager
Compatible Enables centralized management via the APC InfraStruXure Manager.
SmartSlot Customize
UPS capabilities with management cards.
LED status indicators
Quickly understand unit and power status with visual indicators.
Serial Connectivity
Provides management of the UPS via a serial port.
Plug-and-Play external batteries
Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.
Rack/Tower convertible
Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
Flash upgradeable firmware
Install maintenance releases of firmware remotely using FTP.
User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Specifications
| Output power capacity | 6 kVA |
|---|---|
| Output power | 4200 W |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 280 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 480 J |
| Efficiency | 92% |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Noise level | 55 dB |
| AC outlet types | C13 coupler, C19 coupler, Type J |
|---|---|
| AC outlets quantity | 14 AC outlet(s) |
| Serial ports quantity | 1 |
| RS-232 ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Number of battery cells | 2 |
|---|---|
| Battery recharge time | 2.5 h |
| Form factor | Rackmount |
|---|---|
| Rack capacity | 3U |
| Product colour | Black |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Certification | C-tick, CE, EN 50091-1, EN 50091-2, EN 55022 Class A, EN 60950, EN 61000-3-2, GOST, VDE |
|---|
| Width | 130 mm |
|---|---|
| Depth | 698 mm |
| Height | 432 mm |
| Weight | 54.5 kg |
| Package weight | 63.6 kg |
|---|
| Battery type | RBC44 |
|---|---|
| Package dimensions (WxDxH) | 603 x 980 x 347 mm |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
