Products › Power & Rack Equipment
APC BY SCHNEIDER ELECTRIC

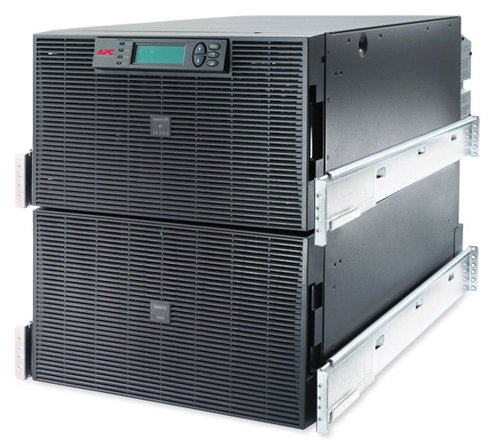

APC SURT20KRMXLT uninterruptible power supply (UPS) 20 kVA 16000 W
Part number SURT20KRMXLT
SMART UPS 20KVA RT RM 208V
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- SURT20KRMXLT
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
APC Smart-UPS RT 20kVA RM 208V
LCD display:
Alpha-Numeric Display which displays system parameters and alarms.

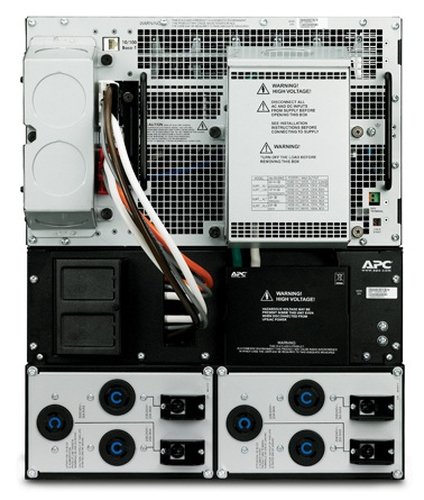

Removable input/output wiring tray:
Allows quick and easy installation and maintenance of the UPS.
Rack/Tower convertible:
Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
Manageable external batteries:
Reduces preventative maintenance service needs by monitoring the health and status of the external batteries and their expected runtime.
Specifications
| Output power capacity | 20 kVA |
|---|---|
| Output power | 16000 W |
| Input frequency | 40/70 Hz |
| Emergency Power Off (EPO) | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
|---|
| Battery recharge time | 2.5 h |
|---|
| Product colour | Black |
|---|
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Weight | 247.7 kg |
|---|
| Battery type | Lead-Acid |
|---|---|
| Interface | DB-9 RS-232, RJ-45 10/100 |
| Output connections | 2PH + G NEMA L6-20R |
| Input connection type | 2PH + G |
| Dimensions (WxDxH) | 432 x 773 x 533 mm |
| Nominal output voltage | 208 V |
| Output voltage note | 208/240 |
| Nominal input voltage | 208 V |
| Package dimensions (WxDxH) | 610 x 1003 x 990 mm |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
