Overview

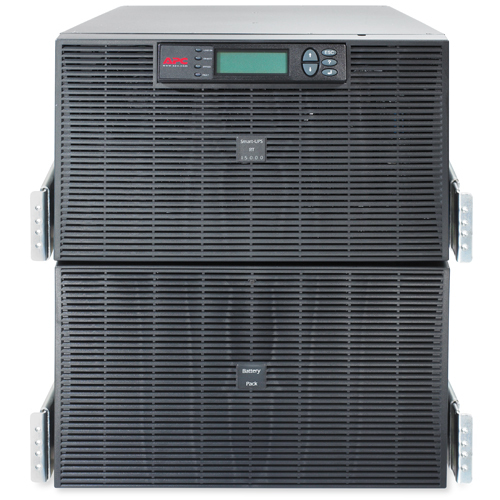

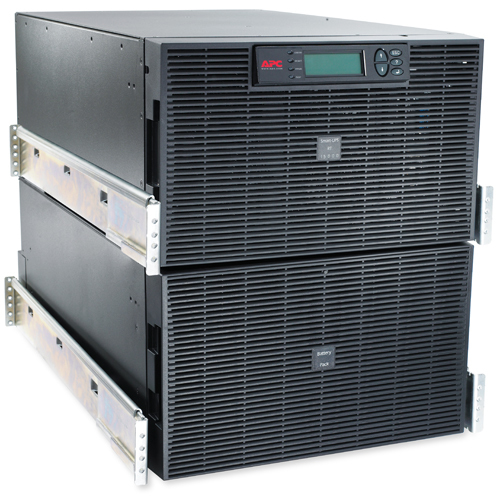

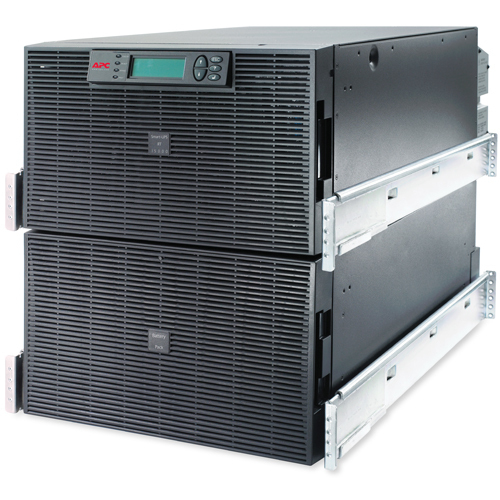

High density, double-conversion on-line power protection with scalable runtime.
Specifications
Features
| UPS topology | Double-conversion (Online) |
|---|
| Output power capacity | 15 kVA |
|---|
| Output power | 12000 W |
|---|
| Waveform | Sine |
|---|
| Input frequency | 40 - 70 Hz |
|---|
| Output operation voltage (min) | 220 V |
|---|
| Output operation voltage (max) | 240 V |
|---|
| Output frequency regulation | 50/60 Hz |
|---|
| Maximum current | 90 A |
|---|
| Number of output phases | 1 |
|---|
| Efficiency | 95% |
|---|
| Crest factor | 3:1 |
|---|
| Emergency Power Off (EPO) | Yes |
|---|
| Noise level | 50 dB |
|---|
| Surge protection | Yes |
|---|
| Audible alarm(s) | Yes |
|---|
| Auto-restart | Yes |
|---|
Ports & interfaces

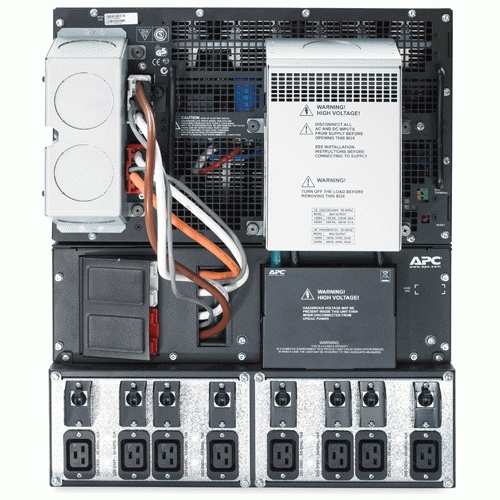

| AC outlet types | C19 coupler |
|---|
| Power plug | Terminal |
|---|
| AC outlets quantity | 8 AC outlet(s) |
|---|
| Number of output IEC jumpers | 2 |
|---|
| Serial interface | Yes |
|---|
| Serial interface type | RS-232 |
|---|
| Cabling technology | 10/100Base-T |
|---|
| SmartSlot | Yes |
|---|
| SmartConnect port | No |
|---|
Battery
| Battery technology | Sealed Lead Acid (VRLA) |
|---|
| Battery capacity | 3840 VAh |
|---|

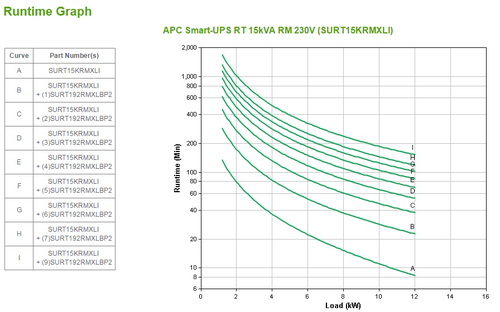

| Typical backup time at full load | 8.3 min |
|---|
| Typical backup time at half load | 22.3 min |
|---|
| Battery life (max) | 5 year(s) |
|---|
| Battery recharge time | 2.5 h |
|---|

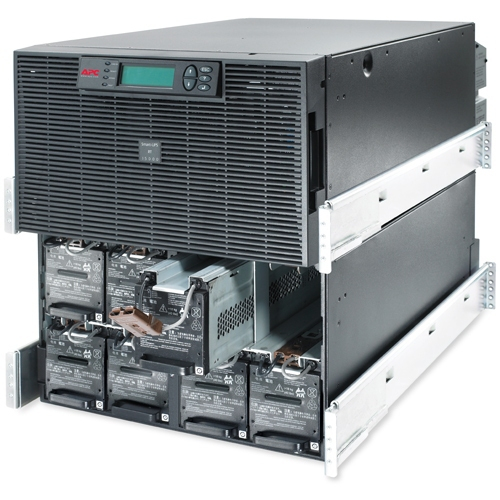

| Hot-swap battery | Yes |
|---|
| Automatic battery test | Yes |
|---|
| Cold start | Yes |
|---|
Design
| Form factor | Rackmount/Tower |
|---|
| Rack capacity | 12U |
|---|
| Product colour | Black |
|---|
| Display type | LCD |
|---|
| LED indicators | Yes |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Storage temperature (T-T) | -15 - 45 °C |
|---|
| Operating relative humidity (H-H) | 0 - 95% |
|---|
| Storage relative humidity (H-H) | 0 - 95% |
|---|
| Operating altitude | 0 - 3000 m |
|---|
| Non-operating altitude | 0 - 15000 m |
|---|
Certificates
| Compliance certificates | RoHS |
|---|
| Certification | EN/IEC 62040-2, EN/IEC 62040-1-1, VDE, PEP, EOLI |
|---|
Packaging content
| Rack mount kit | Yes |
|---|
| Cables included | RS-232 |
|---|
| Management card included | Yes |
|---|
| Manual | Yes |
|---|
Weight & dimensions
| Width | 432 mm |
|---|
| Depth | 773 mm |
|---|
| Height | 533 mm |
|---|
| Weight | 247.7 kg |
|---|
Packaging data

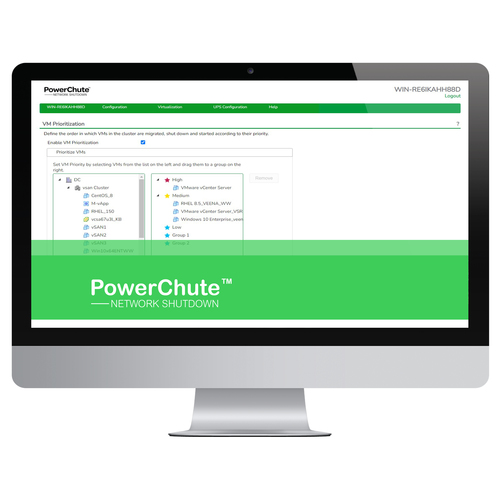

| Software CD | Yes |
|---|
| Package width | 610 mm |
|---|
| Package depth | 1003 mm |
|---|
| Package height | 990 mm |
|---|
| Package weight | 314.1 kg |
|---|
Logistics data
| Products per pallet | 1 pc(s) |
|---|
| Harmonized System (HS) code | 85078000 |
|---|
| Total carbon footprint (kg of CO2e) | 29383.71 |
|---|
Other features
| Nominal output voltage | 230 V |
|---|
| Nominal input voltage | 230 V |
|---|
