APC BY SCHNEIDER ELECTRIC

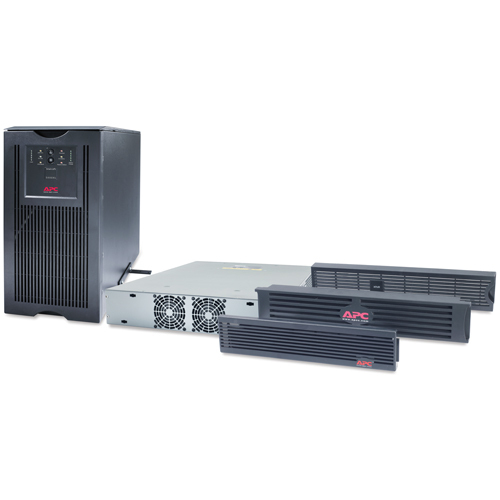

APC Smart-UPS 5000VA RM w/Transformer uninterruptible power supply (UPS) 5 kVA 4000 W
Part number SUA5000R5TXFMR
PTO KIT SMART UPS 5KVA RM W/TRNSFORMER FREIGHT
- 5 kVA 4000 W
- Sealed Lead Acid (VRLA)
- Black
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- SUA5000R5TXFMR
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
Includes: CD with software, Rack Mounting support rails, Smart UPS signalling RS-232 cable, User Manual.
Specifications
Features
| Output power capacity | 5 kVA |
|---|
| Output power | 4000 W |
|---|
| Noise level | 53 dB |
|---|
| Audible alarm(s) | Yes |
|---|
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
|---|
Battery
| Battery technology | Sealed Lead Acid (VRLA) |
|---|
| Typical backup time at full load | 9.4 min |
|---|
| Typical backup time at half load | 26.7 min |
|---|
Design
| Cable length | 2.44 m |
|---|
| Product colour | Black |
|---|
| LED indicators | Yes |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Storage temperature (T-T) | -15 - 45 °C |
|---|
| Operating relative humidity (H-H) | 0 - 95% |
|---|
| Storage relative humidity (H-H) | 0 - 95% |
|---|
| Operating altitude | 0 - 3000 m |
|---|
| Non-operating altitude | 0 - 15000 m |
|---|
Certificates
| Certification | CSA,FCC 15 A,UL 1778 |
|---|
Weight & dimensions
| Weight | 145.4 kg |
|---|
Other features
| Interface | DB-9 RS-232,RJ-45 10 Base-T ethernet / SNMP/ Telnet,SmartSlot |
|---|
| Output connections | (2) NEMA 5-15R .
(12) NEMA 5-20R.
(2) NEMA L6-20R.
(1) NEMA L6-30R. |
|---|
| Input connection type | NEMA L6-30P |
|---|
| Dimensions (WxDxH) | 483 x 635 x 311 mm |
|---|
| Filtering description | 0.3% IEEE |
|---|
| Nominal input voltage | 208 V |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
