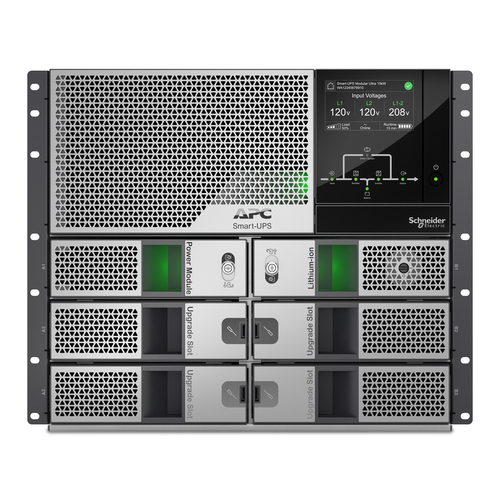

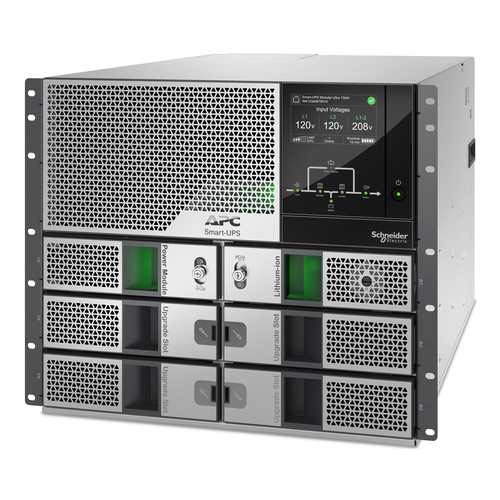

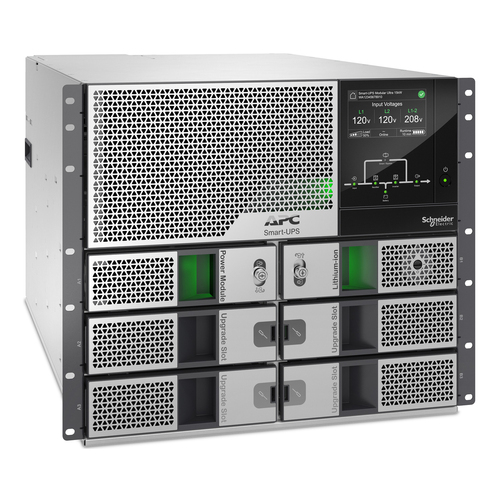

Smart-UPS™ Modular Ultra provides up to 2.5x more power density in half the size and weight of comparable UPSs. Its modular design allows you to scale power or runtime as your business needs change*. The 100A chassis supports backward compatibility with your existing Symmetra LX wiring, supporting up to 15kW of power protection. The most sustainable modular UPS of its kind, featuring best-in-class embodied carbon reduction, allows you to save money on Total Cost of Ownership compared to VRLA UPSs. *Additional 5kW power (SRYL5KPMT) and battery (SRYLBM) modules sold separately. Compatible with Genuine APC battery modules only.
Specifications
Features
UPS topology
Double-conversion (Online)
Output power capacity
5 kVA
Output power
5000 W
Waveform
Sine
Input operation voltage (min)
120 V
Input operation voltage (max)
240 V
Input frequency
40 - 70 Hz
Output operation voltage (min)
120 V
Output operation voltage (max)
240 V
Maximum current
27 A
Number of input phases
1
Number of output phases
1
Power factor
0.5
Emergency Power Off (EPO)
Yes
Noise level
68 dB
Ports & interfaces
USB port
Yes
Serial interface
Yes
Network card slot
Yes
SmartSlot
Yes
Battery
Battery technology
Lithium-Ion (Li-Ion)
Number of batteries included
1 pc(s)
Battery life (max)
10 year(s)
Design
Form factor
Rackmount
Rack capacity
9U
Product colour
Black, Silver
Display type
LCD
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 15000 m
Certificates
Compliance certificates
CE, cULus
Packaging content
Batteries included
Yes
Rack mount kit
Yes
Management card included
Yes
Sustainability
Sustainability certificates
ENERGY STAR
Weight & dimensions
Width
440 mm
Depth
700 mm
Height
390 mm
Weight
72.5 kg
Packaging data
Package width
600 mm
Package depth
580 mm
Package height
982 mm
Package weight
91.3 kg
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
