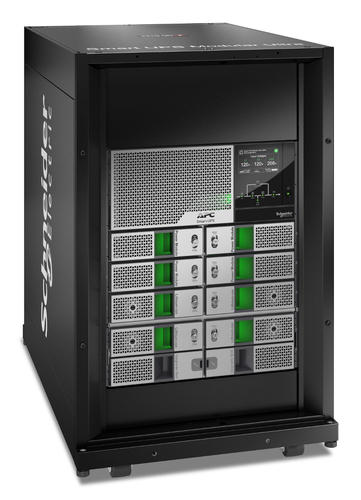

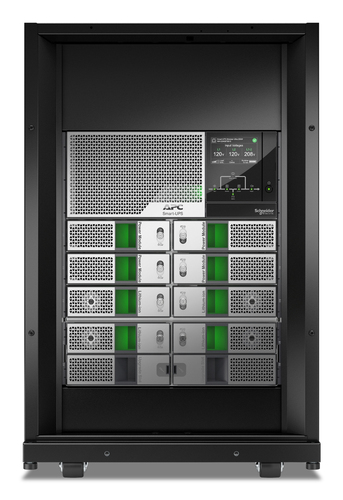

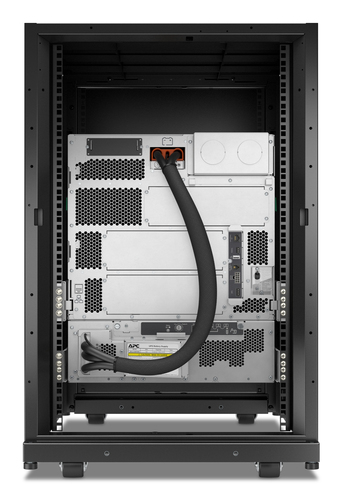

APC SRYL20K20XLT18 uninterruptible power supply (UPS) Double-conversion (Online) 20000 W
Part number SRYL20K20XLT18
APC SMART-UPS MODULAR ULTRA 20KW SCALABLE TO 20KW N+1 REDUNDANT, TOWER, 208/240V
- 18U Tower UPS chassis, scalable to 20kW with 4 (5kW) Power and 4 Battery Modules
- Modular UPS up to 50% smaller for more power and usable rack space in the same footprint
- Preconfigured design with liveswap capability
- The most sustainable modular UPS of its kind, featuring best-in-class embodied carbon reduction
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- SRYL20K20XLT18
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
Smart-UPS Modular Ultra Tower provides 2.5x more power protection and available U-space in a standalone UPS for a flexible installation to accommodate power needs where necessary. Scale up to 20kW of single-phase power protection with a smaller, lighter and more powerful modular UPS to free up enclosure space for more equipment. Designed for local edge environments, the Smart-UPS Modular Ultra rackmount and tower solutions provide consistent and reliable connectivity at the most critical moments.
Specifications
| UPS topology | Double-conversion (Online) |
|---|---|
| Output power | 20000 W |
| Waveform | Sine |
| Input operation voltage (min) | 240 V |
| Input operation voltage (max) | 240 V |
| Input frequency | 40 - 70 Hz |
| Output operation voltage (min) | 120 V |
| Output operation voltage (max) | 240 V |
| Power factor | 0.5 |
| Emergency Power Off (EPO) | Yes |
| USB port | Yes |
|---|---|
| Serial interface | Yes |
| Form factor | Rackmount |
|---|---|
| Product colour | Black |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -15 - 45 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 1000 m |
| Width | 600 mm |
|---|---|
| Depth | 900 mm |
| Height | 942 mm |
| Weight | 242.4 kg |
| Package width | 750 mm |
|---|---|
| Package depth | 995 mm |
| Package height | 106 mm |
| Package weight | 264.8 kg |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
