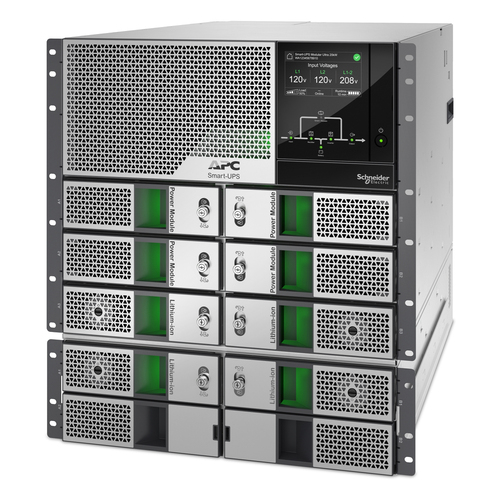

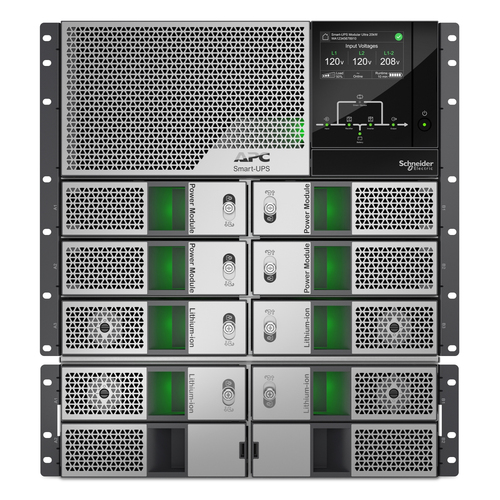

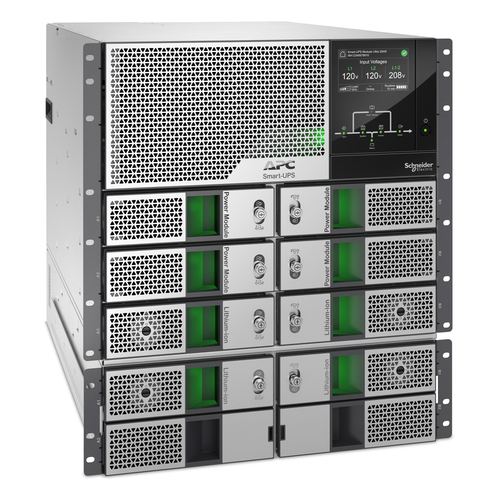

APC SRYL20K20RMXLT uninterruptible power supply (UPS) Double-conversion (Online) 20 kVA 20000 W
Part number SRYL20K20RMXLT
APC SMART-UPS MODULAR ULTRA 20KW SCALABLE TO 20KW N+1 REDUNDANT
9U Rackmount UPS Chassis, 3U XBP Frame, scalable to 20kW N+1 with 4 (5kW) Power and 4 Battery Module
125A chassis allows you to scale power protection up to 20kW N+1
At 50% smaller & 60% lighter, fewer people are required to install
The most sustainable modular UPS of its kind, featuring best-in-class embodied carbon reduction
1-Year Secure Network Management Card subscription included
Manufacturer
APC BY SCHNEIDER ELECTRIC
Part number
SRYL20K20RMXLT
Condition
New
Category
Power & Rack Equipment › Power Equipment
1GPA category
Hardware
Overview
Smart-UPS™ Modular Ultra provides up to 2.5x more power density in half the size and weight of comparable UPSs. Its modular design allows you to scale power or runtime as your business needs change*. The 125A supports up to 20kW of power protection. The most sustainable modular UPS of its kind, featuring best-in-class embodied carbon reduction, allows you to save money on Total Cost of Ownership compared to VRLA UPSs. *Additional 5kW power (SRYL5KPMT) and battery (SRYLBM) modules sold separately. Compatible with Genuine APC battery modules only.
Specifications
Features
UPS topology
Double-conversion (Online)
Output power capacity
20 kVA
Output power
20000 W
Waveform
Sine
Input operation voltage (min)
120 V
Input operation voltage (max)
240 V
Input frequency
40 - 70 Hz
Output operation voltage (min)
120 V
Output operation voltage (max)
240 V
Power factor
0.5
Emergency Power Off (EPO)
Yes
Noise level
68 dB
Ports & interfaces
USB port
Yes
Serial interface
Yes
Network card slot
Yes
SmartSlot
Yes
Battery
Battery technology
Lithium-Ion (Li-Ion)
Number of batteries included
4 pc(s)
Battery life (max)
10 year(s)
Design
Form factor
Rackmount
Rack capacity
12U
Product colour
Black, Silver
Display type
LCD
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 15000 m
Certificates
Compliance certificates
CE, cULus
Packaging content
Batteries included
Yes
Rack mount kit
Yes
Management card included
Yes
Sustainability
Sustainability certificates
ENERGY STAR
Weight & dimensions
Width
440 mm
Depth
740 mm
Height
520 mm
Weight
148.5 kg
Packaging data
Package width
600 mm
Package depth
580 mm
Package height
982 mm
Package weight
167 kg
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
