APC SRYL10K15RMXLT uninterruptible power supply (UPS) Double-conversion (Online) 10 kVA 10000 W 8 AC outlet(s)
Part number SRYL10K20RMXLT

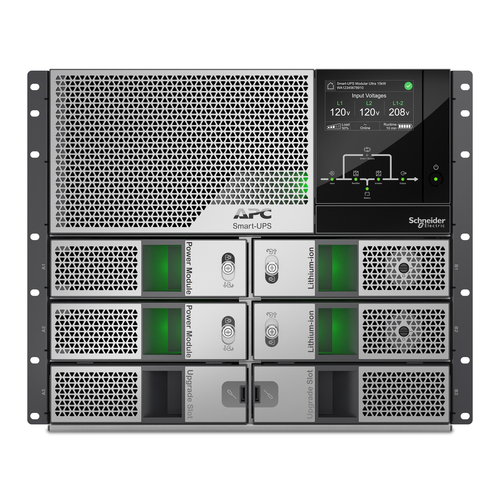

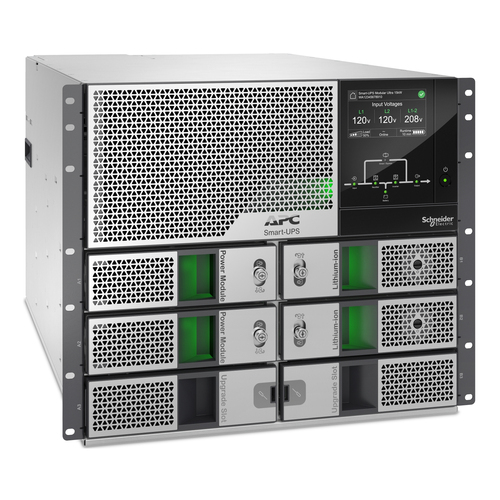

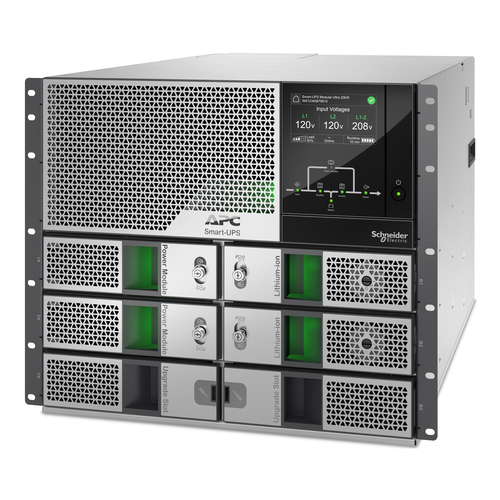

APC SMART-UPS MODULAR ULTRA 10KW SCALABLE TO 20KW N+1 REDUNDANT
9U Rackmount UPS Chassis, scalable to 20kW with 2 (5kW) Power and 2 Battery Modules
100A chassis backward compatible with existing Symmetra LX wiring
At 50% smaller & 60% lighter, fewer people are required to install
The most sustainable modular UPS of its kind, featuring best-in-class embodied carbon reduction
1-Year Secure Network Management Card subscription included
Manufacturer
APC BY SCHNEIDER ELECTRIC
Part number
SRYL10K20RMXLT
Condition
New
Category
Power & Rack Equipment › Power Equipment
1GPA category
Hardware
Overview
Smart-UPS™ Modular Ultra provides up to 2.5x more power density in half the size and weight of comparable UPSs. Its modular design allows you to scale power or runtime as your business needs change*. The 125A supports up to 20kW of power protection. The most sustainable modular UPS of its kind, featuring best-in-class embodied carbon reduction, allows you to save money on Total Cost of Ownership compared to VRLA UPSs. *Additional 5kW power (SRYL5KPMT) and battery (SRYLBM) modules sold separately. Compatible with Genuine APC battery modules only.
Specifications
Features
UPS topology
Double-conversion (Online)
Output power capacity
10 kVA
Output power
10000 W
Waveform
Sine
Input operation voltage (min)
120 V
Input operation voltage (max)
240 V
Input frequency
40 - 70 Hz
Output operation voltage (min)
220 V
Maximum current
51 A
Heat dissipation
703 BTU/h
Number of input phases
1
Number of output phases
1
Power factor
0.5
Emergency Power Off (EPO)
Yes
Noise level
68 dB
Ports & interfaces
AC outlets quantity
8 AC outlet(s)
USB port
Yes
Serial interface
Yes
Network card slot
Yes
SmartSlot
Yes
Battery
Battery technology
Lithium-Ion (Li-Ion)
Number of batteries included
2 pc(s)
Battery life (max)
10 year(s)
Battery recharge time
3 h
Design
Form factor
Tower
Cable length
2.4 m
Product colour
Black, Silver
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 15000 m
Certificates
Compliance certificates
CE, cULus
Sustainability
Sustainability certificates
ENERGY STAR
Weight & dimensions
Width
440 mm
Depth
700 mm
Height
390 mm
Weight
91.5 kg
Packaging data
Package width
600 mm
Package depth
580 mm
Package height
982 mm
Package weight
112.5 kg
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
