APC SRYL10K15RMXLT uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 2700 W 8 AC outlet(s)
Part number SRYL10K15RMXLT

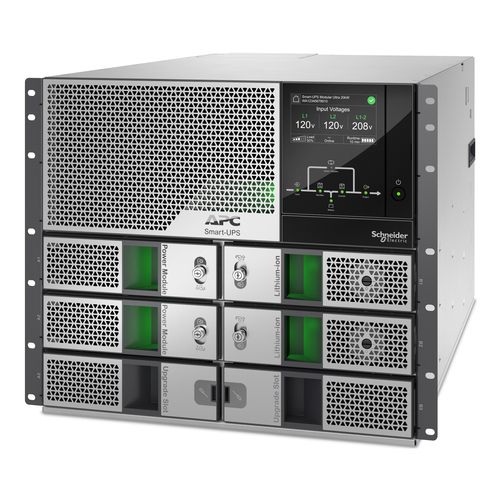

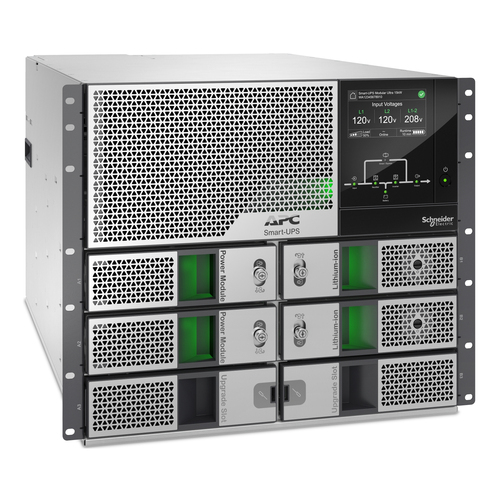

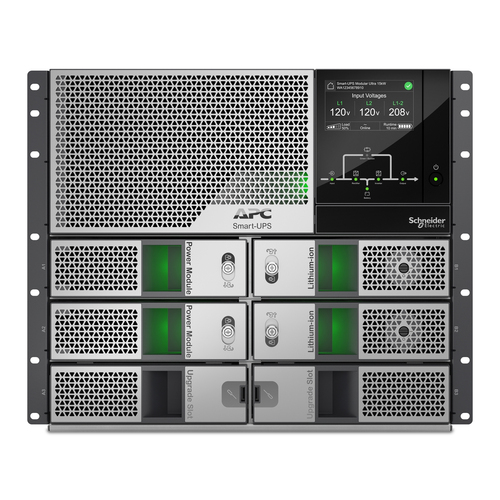

APC SMART-UPS MODULAR ULTRA 10KW SCALABLE TO 15KW N+1
9U Rackmount UPS Chassis, scalable to 15kW with 2 (5kW) Power and 2 Battery Modules
100A chassis backward compatible with existing Symmetra LX wiring
At 50% smaller & 60% lighter, fewer people are required to install
The most sustainable modular UPS of its kind, featuring best-in-class embodied carbon reduction
1-Year Secure Network Management Card subscription included
Manufacturer
APC BY SCHNEIDER ELECTRIC
Part number
SRYL10K15RMXLT
Condition
New
Category
Power & Rack Equipment › Power Equipment
1GPA category
Hardware
Overview
Smart-UPS™ Modular Ultra provides up to 2.5x more power density in half the size and weight of comparable UPSs. Its modular design allows you to scale power or runtime as your business needs change*. The 100A chassis supports backward compatibility with your existing Symmetra LX wiring, supporting up to 15kW of power protection. The most sustainable modular UPS of its kind, featuring best-in-class embodied carbon reduction, allows you to save money on Total Cost of Ownership compared to VRLA UPSs. *Additional 5kW power (SRYL5KPMT) and battery (SRYLBM) modules sold separately. Compatible with Genuine APC battery modules only.
Specifications
Features
UPS topology
Double-conversion (Online)
Output power capacity
3 kVA
Output power
2700 W
Waveform
Sine
Input operation voltage (min)
100 V
Input operation voltage (max)
275 V
Input frequency
40 - 70 Hz
Output operation voltage (min)
220 V
Output frequency
50/60 Hz
Output frequency regulation
3 Hz
Heat dissipation
703 BTU/h
Number of input phases
1
Number of output phases
1
Crest factor
3:1
Emergency Power Off (EPO)
Yes
Output voltage Total Harmonic Distortion (THD)
2%
Noise level
55 dB
Ports & interfaces
AC outlet types
IEC 60320
Power plug
BS1363A
AC outlets quantity
8 AC outlet(s)
USB port
Yes
Serial interface
Yes
Network card slot
Yes
SmartSlot
Yes
Battery
Battery technology
Lead-Acid
Battery voltage
96 V
Battery life (max)
5 year(s)
Battery recharge time
3 h
Design
Form factor
Tower
Cable length
2.4 m
Product colour
Black
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 10000 m
Non-operating altitude
0 - 15240 m
Certificates
Compliance certificates
CE, cULus
Sustainability
Sustainability certificates
ENERGY STAR
Weight & dimensions
Width
85 mm
Depth
635 mm
Height
432 mm
Weight
31.3 kg
Packaging data
Package width
871 mm
Package depth
599 mm
Package height
246 mm
Package weight
36.7 kg
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
