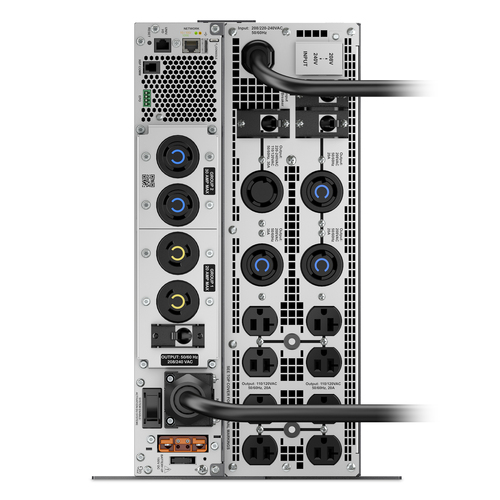

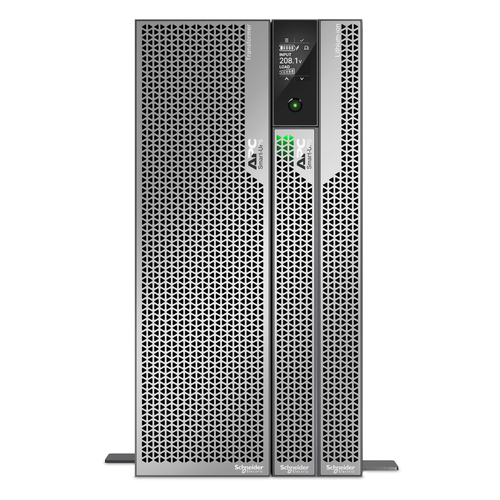

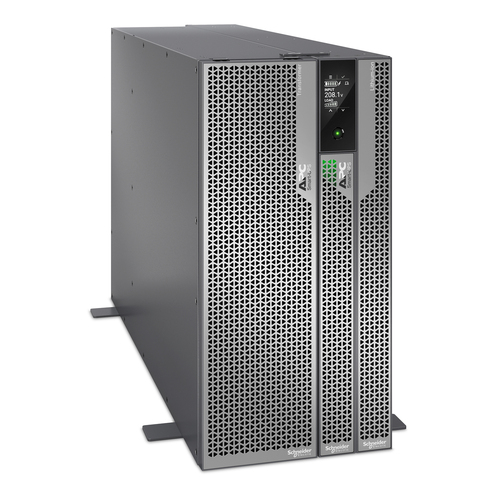

Smart-UPS Ultra 5kW UPS and SRTL 5kVA Step-Down Transformer bundle. Including the Smart-UPS Ultra 5kVA/4.9kW double-conversion on-line pure sine wave 2U rack/tower convertable UPS. Including Smart-UPS Ultra SRTL 5kW, 3U rack/tower convertible, Step-Down Transformer lets you connect multiple voltage equipment to your existing SRTL5K power protection. UPS Connections: (2) L6-20R, (2) L6-30R Step Down Transformer Connections: (2) L6-20R, (8) 5-20R, (1) L6-30R, (1) L14-30R Standard warranty, 5 years repair or replace.
Specifications
Features
UPS topology
Double-conversion (Online)
Output power capacity
4.9 kVA
Output power
4900 W
Waveform
Sine
Input operation voltage (min)
208 V
Input operation voltage (max)
240 V
Input frequency
40 - 70 Hz
Output operation voltage (min)
120 V
Output operation voltage (max)
240 V
Output frequency
50/60 Hz
Surge energy rating
1260 J
Heat dissipation
1047 BTU/h
Crest factor
3:1
Output voltage Total Harmonic Distortion (THD)
2%
Noise level
55 dB
Audible alarm(s)
Yes
Ports & interfaces
AC outlet types
NEMA L14-30R, NEMA L5-20R, NEMA L6-20R, NEMA L6-30R
Power plug
NEMA L6-30P
AC outlets quantity
16 AC outlet(s)
USB port
Yes
USB 2.0 ports quantity
1
USB port type
USB Type-A
Ethernet LAN (RJ-45) ports
1
Emergency Power Off (EPO) connector
Yes
Battery
Battery technology
Lithium-Ion (Li-Ion)
Battery voltage
180 V
Battery life (max)
10 year(s)
Battery recharge time
1.5 h
Design
Form factor
Rackmount
Rack capacity
3U
Cable length
3.05 m
Product colour
Silver
International Protection (IP) code
IP20
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 15240 m
Packaging content
Rack mount kit
Yes
Cables included
USB cable
Sustainability
Sustainability certificates
ENERGY STAR
Weight & dimensions
Width
220 mm
Depth
719 mm
Height
435 mm
Weight
85.9 kg
Packaging data
Package width
980 mm
Package depth
610 mm
Package height
278 mm
Package weight
92.7 kg
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
