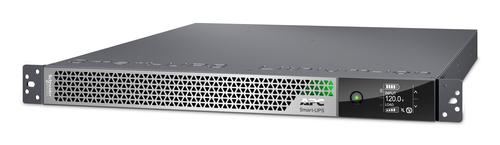

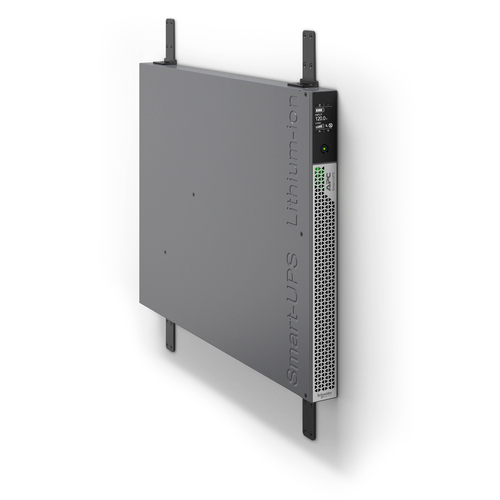

APC Smart-UPS Ultra 2200VA 1U 120V Rack/ Tower/ Wall/ Ceiling/ Desk Under Mount with Embedded Network Port This 2.2kVA on-line 1U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRTL comes with a NEMA 5-20P inlet, (5) NEMA 5-20R and L5-20R with Pigtail cable outlets. This Smart-UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Serial Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 5-year warranty on the UPS and Lithium-ion battery.
Specifications
Features
UPS topology
Double-conversion (Online)
Output power capacity
2.2 kVA
Output power
1950 W
Waveform
Sine
Input operation voltage (min)
120 V
Input operation voltage (max)
125 V
Input frequency
50/60 Hz
Output operation voltage (min)
120 V
Output operation voltage (max)
125 V
Output frequency
50/60 Hz
Crest factor
3:1
Output voltage Total Harmonic Distortion (THD)
2%
Noise level
55 dB
Audible alarm(s)
Yes
Ports & interfaces

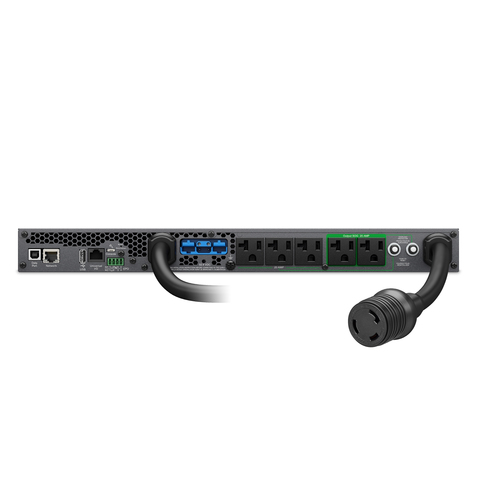

AC outlet types
NEMA 5–20R, NEMA L5-20R
Power plug
NEMA 5-20P
AC outlets quantity
6 AC outlet(s)
USB port
Yes
USB 2.0 ports quantity
2
USB port type
USB Type-A/USB Type-B
Serial interface
Yes
Serial ports quantity
1
Ethernet LAN (RJ-45) ports
1
Emergency Power Off (EPO) connector
Yes
SmartSlot
Yes
Battery
Battery technology
Lithium-Ion (Li-Ion)
Battery voltage
50 V
Battery recharge time
1.5 h
Replacement battery cartridge
APCRBC173-LI
Design

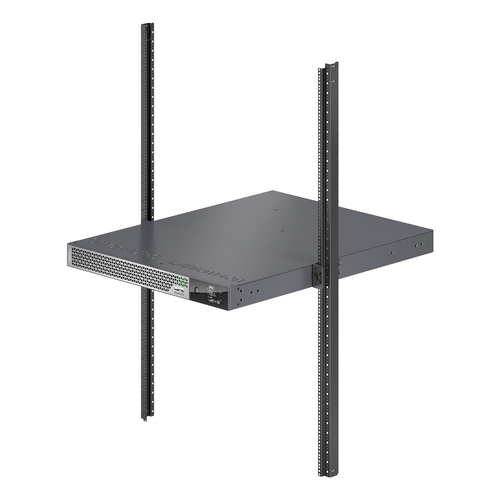

Form factor
Rackmount
Rack capacity
1U
Cable length
2.4 m
Product colour
Silver
Display type
LCD
International Protection (IP) code
IP20
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 15240 m
Certificates
Compliance certificates
Federal Communications Commission (FCC), UL, cUL
Packaging content
Rack mount kit
Yes
Cables included
RJ-45, USB cable
Weight & dimensions
Width
432 mm
Depth
560 mm
Height
43 mm
Weight
15.9 kg
Packaging data
Package width
564 mm
Package depth
764 mm
Package height
278.2 mm
Package weight
24.2 kg
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
