Overview
With Smart-UPS™ Ultra you can put up to 10000W of power protection in places never before possible. Make installation effortless with a 10kW UPS that is 30% smaller and lighter than any comparable UPS. The auto-rotating touch screen display makes switching between horizontal and vertical mounting options instantaneous. EcoStruxure Ready Smart-UPS provides visibility anywhere, anytime. Standard warranty, 5 years repair or replace.
Specifications
Features
| UPS topology | Double-conversion (Online) |
|---|
| Output power capacity | 10 kVA |
|---|
| Output power | 10000 W |
|---|
| Waveform | Sine |
|---|
| Input operation voltage (min) | 208 V |
|---|
| Input operation voltage (max) | 240 V |
|---|
| Input frequency | 40/70 Hz |
|---|
| Output operation voltage (min) | 208 V |
|---|
| Output operation voltage (max) | 240 V |
|---|
| Output frequency | 50/60 Hz |
|---|
| Surge energy rating | 1410 J |
|---|
| Crest factor | 3:1 |
|---|
| Emergency Power Off (EPO) | Yes |
|---|
| Output voltage Total Harmonic Distortion (THD) | 5% |
|---|
| Noise level | 55 dB |
|---|
| Audible alarm(s) | Yes |
|---|
| Audible alarm modes | Alarm when on battery, Low battery alarm |
|---|

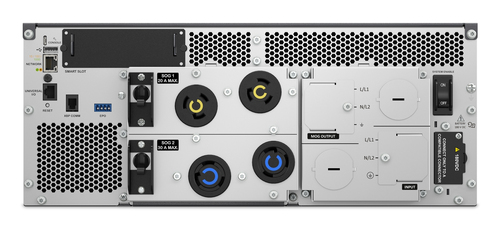

Ports & interfaces
| AC outlet types | NEMA L6-20R, NEMA L6-30R |
|---|
| Power plug | Hardwire |
|---|
| AC outlets quantity | 4 AC outlet(s) |
|---|
| USB port | Yes |
|---|
| Serial interface | Yes |
|---|
| Network card slot | Yes |
|---|
Battery
| Battery technology | Lithium-Ion (Li-Ion) |
|---|
| Battery voltage | 180 V |
|---|
| Battery life (max) | 10 year(s) |
|---|
| Battery recharge time | 1.5 h |
|---|
Design
| Form factor | Rackmount/Tower |
|---|
| Rack capacity | 4U |
|---|
| Product colour | Grey |
|---|
| Display type | LCD |
|---|
| LED indicators | Yes |
|---|
| International Protection (IP) code | IP20 |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Storage temperature (T-T) | -15 - 45 °C |
|---|
| Operating relative humidity (H-H) | 0 - 95% |
|---|
| Storage relative humidity (H-H) | 0 - 95% |
|---|
| Operating altitude | 0 - 10000 m |
|---|
| Non-operating altitude | 0 - 15240 m |
|---|
Certificates
| Compliance certificates | CE, REACH, UKCA, VDE |
|---|
Packaging content
| Rack mount kit | Yes |
|---|
| Cables included | USB cable |
|---|
| Management card included | Yes |
|---|
| Manual | Yes |
|---|
Sustainability
| Sustainability certificates | Green Premium |
|---|
Weight & dimensions
| Width | 432 mm |
|---|
| Depth | 832 mm |
|---|
| Height | 175 mm |
|---|
| Weight | 55 kg |
|---|
Packaging data
| Package width | 650 mm |
|---|
| Package depth | 1000 mm |
|---|
| Package height | 630 mm |
|---|
| Package weight | 88.5 kg |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
