Overview

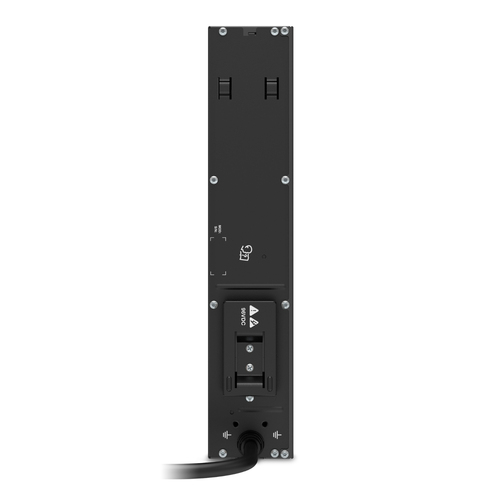

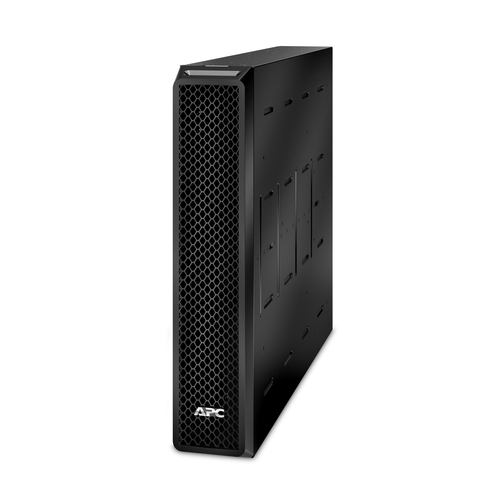

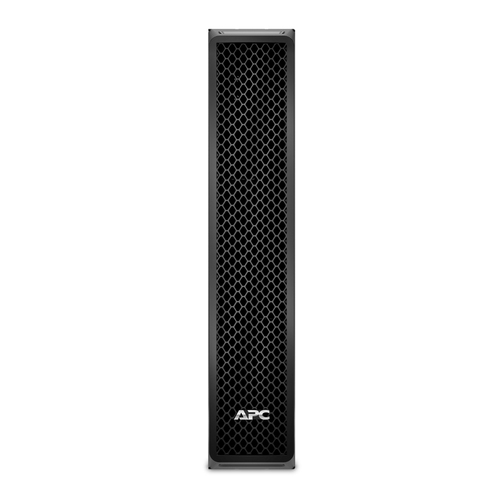

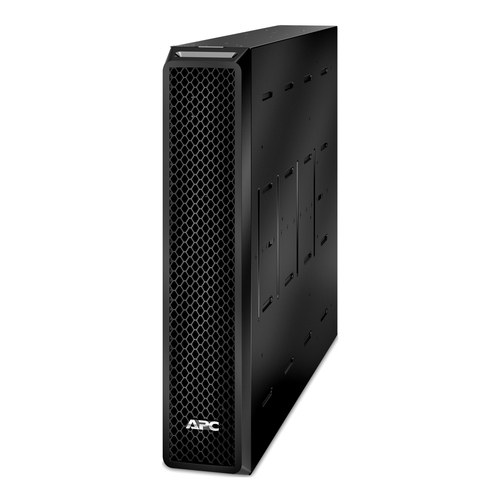

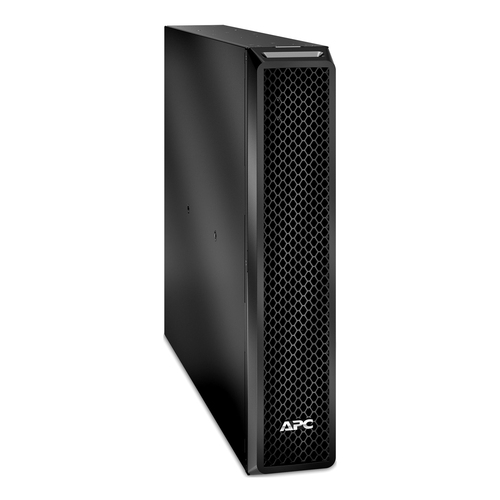

This APC Smart-UPS battery pack connected with SRT On-Line UPS, provides extended runtime to SRT mission critical applications. This 96V SRT extendable runtime battery pack is compatible with 3kVA SRT Smart-UPS extended runtime models. Embedded monitoring at the cell, module, and cabinet level provides data of battery runtime and health. It is a lead-acid battery with a 2-year warranty. It is a lead-acid battery with a 2-year warranty. Its dimensions are 594mm (depth) x 432mm (height) x 85mm (width) and weighs 40.6kg. Ideal for Smart-UPS on-line mission critical applications.
Specifications
Features
| Battery voltage | 96 V |
|---|
| Number of batteries included | 1 pc(s) |
|---|
| Product colour | Black |
|---|
| Hot-swap battery | Yes |
|---|
| Rack capacity | 2U |
|---|
Certificates
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
|---|
| Compliance certificates | RoHS, REACH, WEEE |
|---|
Battery
| Battery replacement accessibility | End-user |
|---|
| Battery technology | Lead acid |
|---|
Technical details
| Sustainable packaging | No |
|---|
| Packaging recycled materials | Recycled cardboard |
|---|
| SCIP number | 488c31fb-3af8-42cf-9558-1362d000a07e |
|---|
| Proposition 65 | Yes |
|---|
| Take-back system | No |
|---|
| Packaging without single use plastic | No |
|---|
Weight & dimensions
| Weight | 40.6 kg |
|---|
| Width | 85 mm |
|---|
| Height | 432 mm |
|---|
| Depth | 594 mm |
|---|
Packaging data
| Package width | 599 mm |
|---|
| Package height | 239 mm |
|---|
| Package depth | 831 mm |
|---|
| Package weight | 44.5 kg |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Storage temperature (T-T) | -15 - 45 °C |
|---|
| Operating relative humidity (H-H) | 0 - 95% |
|---|
| Storage relative humidity (H-H) | 0 - 95% |
|---|
| Non-operating altitude | 0 - 15000 m |
|---|
Logistics data
| Customs product code (TARIC) | 8507208090 |
|---|
| Harmonized System (HS) code | 85044095 |
|---|
| Total carbon footprint (kg of CO2e) | 203.7635270936 |
|---|
| Country of origin | Vietnam |
|---|
