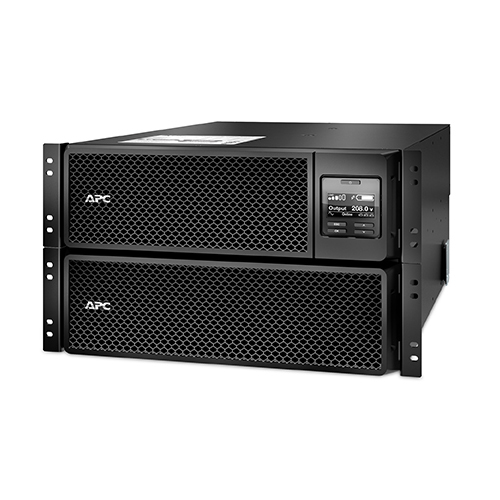

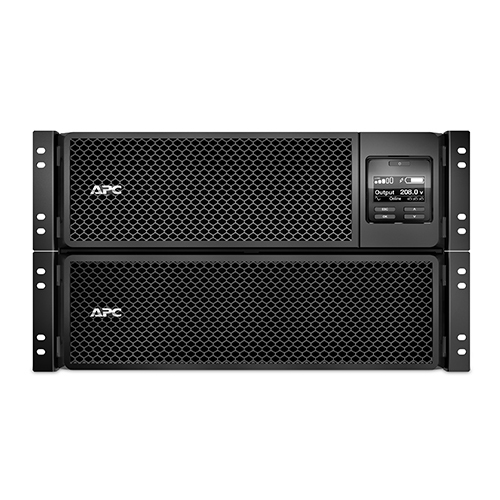

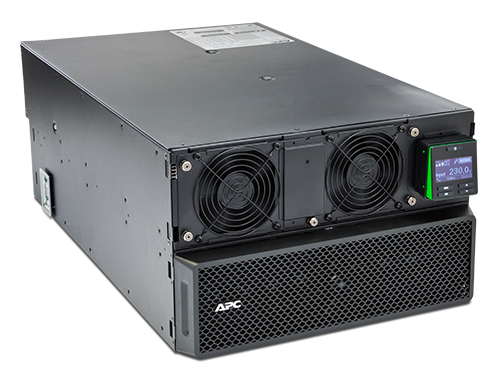

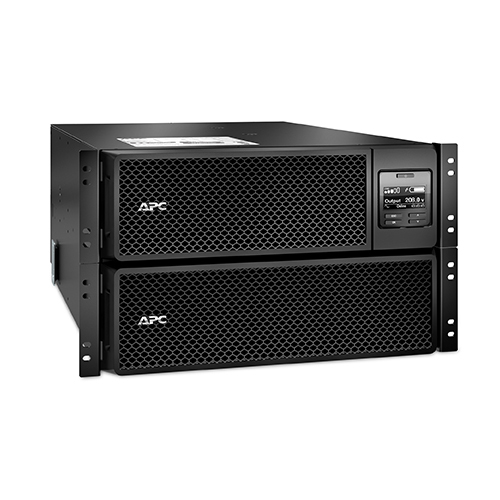

APC SRT8KRMXLT-IEC uninterruptible power supply (UPS) Double-conversion (Online) 8 kVA 8000 W 14 AC outlet(s)
Part number SRT8KRMXLT-IEC
SMART UPS SRT 8000VA RM 208V IEC
- Double-conversion (Online)
- 8 kVA 8000 W
- Waveform: Sine
- 14 AC outlet(s)
- Sealed Lead Acid (VRLA)
- Rackmount/Tower Black
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- SRT8KRMXLT-IEC
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
Marketing Features
- Avoids costly power problems by keeping your IT equipment and data protected and available.
Network grade power conditioning protects from damaging surges and disruptive noise. The double conversion architecture provides tight voltage regulation, frequency regulation ,and zero transfer time to battery during power events.
- Low operating and maintenance costs with proven reliability and intelligent battery management.
Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Automatic self tests insure battery reliability and warn customers in advance of battery replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down.
- Save time with easy and convenient remote accessibility.
Network manageable via serial, USB or optional Ethernet. Includes Powerchute® Network Shutdown Software for convenient monitoring and control, safe operating system shutdown, and innovative energy management capabilities.
- Peace of mind that comes with full equipment compatibility and reliability of a leader
Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.
Specifications
| UPS topology | Double-conversion (Online) |
|---|---|
| Output power capacity | 8 kVA |
| Output power | 8000 W |
| Waveform | Sine |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 275 V |
| Input frequency | 40 - 70 Hz |
| Output operation voltage (max) | 208 V |
| Output frequency | 50/60 Hz |
| Surge energy rating | 480 J |
| Crest factor | 3:1 |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Noise level | 55 dB |
| Surge protection | Yes |
| Audible alarm(s) | Yes |
| Web-based management | Yes |

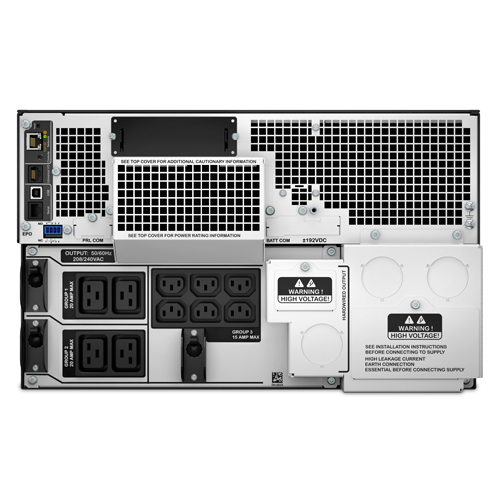

| AC outlet types | C13 coupler, C19 coupler |
|---|---|
| AC outlets quantity | 14 AC outlet(s) |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RJ-45 |
| Ethernet LAN (RJ-45) ports | 1 |
| Cabling technology | 10/100Base-T |
| SmartSlot | Yes |
| Battery technology | Sealed Lead Acid (VRLA) |
|---|---|
| Battery capacity | 1716 VAh |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 1.5 h |
| Hot-swap battery | Yes |
| Automatic battery test | Yes |
| Cold start | Yes |
| Form factor | Rackmount/Tower |
|---|---|
| Rack capacity | 6U |
| Product colour | Black |
| Display type | LCD |
| LED indicators | Status |
| International Protection (IP) code | IP20 |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Compliance certificates | RoHS |
|---|---|
| Certification | CSA C22.2 No.107.3-05, ENERGY STAR (USA), FCC Part 15 Class A, OSHPD, UL 1778, REACH |
| Rack mount kit | Yes |
|---|---|
| Cables included | USB cable |
| Quick installation guide | Yes |
| Width | 432 mm |
|---|---|
| Depth | 715 mm |
| Height | 263 mm |
| Weight | 111.6 kg |
| Temperature sensor | Yes |
|---|---|
| Resource CD | Yes |
| Warranty card | Yes |
| Software CD | Yes |
| Package width | 600 mm |
| Package depth | 1000 mm |
| Package height | 461 mm |
| Package weight | 129.7 kg |
| Products per pallet | 1 pc(s) |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
