APC Smart-UPS uninterruptible power supply (UPS) Double-conversion (Online) 6 kVA 6000 W 17 AC outlet(s)
Part number SRT6KRMXLT-5KTF
SMART UPS SRT 6000VA RM WITH 208V TO 120V 2U
- Double-conversion (Online)
- 6 kVA 6000 W
- Waveform: Sine
- 17 AC outlet(s)
- Sealed Lead Acid (VRLA)
- Rackmount/Tower Black
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- SRT6KRMXLT-5KTF
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview

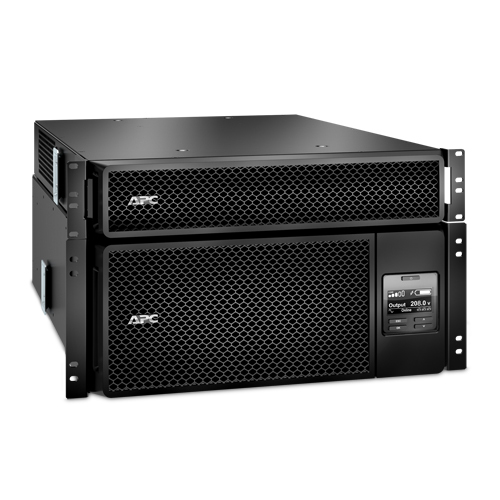

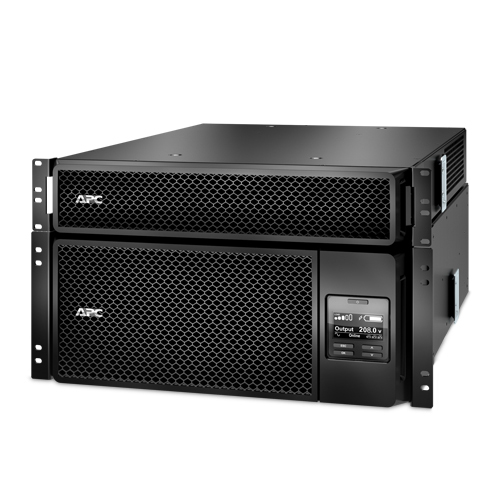

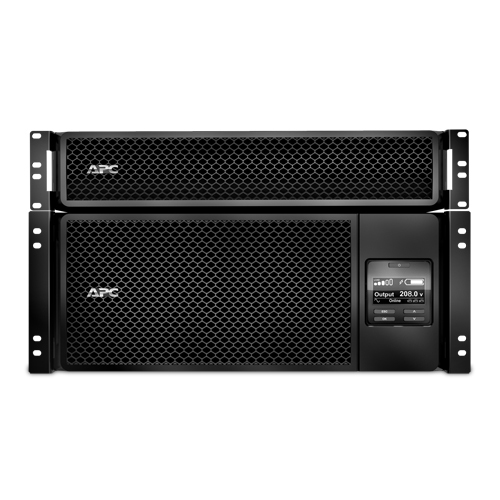

APC Smart-UPS SRT 6000VA RM with 208V to 120V 2U Step-Down Transformer
High density, double-conversion on-line power protection with scalable runtime
Includes : CD with software , Documentation CD , Installation guide , Rack Mounting brackets , Rack mounting hardware , Rack Mounting support rails , Temperature Probe , USB cable , Warranty card , Web/SNMP Management Card
- 10/100 BaseT Connection
Connect the device to a network using a 10 or 100 BaseT connection
- Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
- Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- Hard Wire Input
UPS requires a hard wire input in order to deliver maximum output wattage to protected equipment

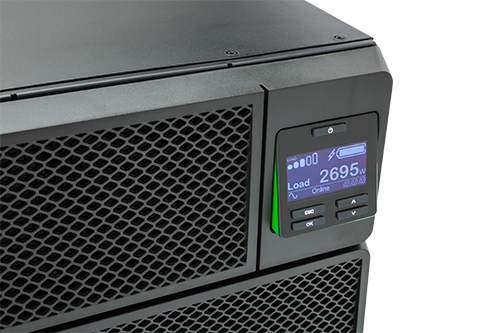

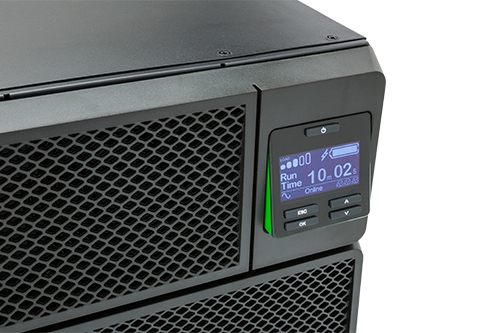

- LCD graphics display
Text and mimic diagrams that display modes of operation, system parameters and alarms.
- Rack/Tower convertible
Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
Specifications
| UPS topology | Double-conversion (Online) |
|---|---|
| Output power capacity | 6 kVA |
| Output power | 6000 W |
| Waveform | Sine |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 275 V |
| Input frequency | 40 - 70 Hz |
| Output operation voltage (min) | 120 V |
| Output operation voltage (max) | 208 V |
| Output frequency | 50/60 Hz |
| Surge energy rating | 480 J |
| Crest factor | 3:1 |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Noise level | 55 dB |
| Surge protection | Yes |
| Audible alarm(s) | Yes |
| Auto-restart | Yes |

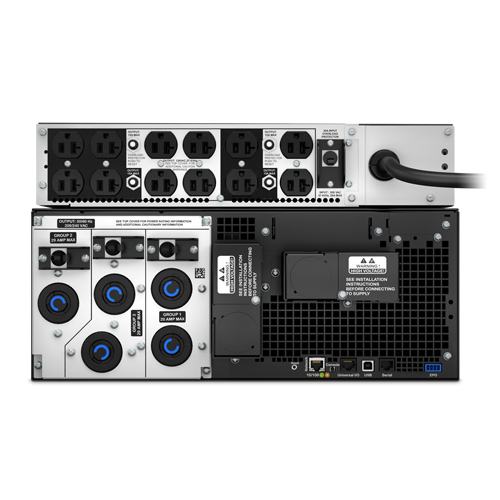

| AC outlet types | NEMA 5–20R, NEMA L6-20R, NEMA L6-30R |
|---|---|
| AC outlets quantity | 17 AC outlet(s) |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RJ-45 |
| Ethernet LAN (RJ-45) ports | 1 |
| Cabling technology | 10/100Base-T |
| SmartSlot | Yes |
| Battery technology | Sealed Lead Acid (VRLA) |
|---|---|
| Battery capacity | 875 VAh |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 1.5 h |
| Hot-swap battery | Yes |
| Automatic battery test | Yes |
| Cold start | Yes |
| Replacement battery cartridge | APCRBC140 |
| Form factor | Rackmount/Tower |
|---|---|
| Rack capacity | 6U |
| Product colour | Black |
| Display type | LCD |
| International Protection (IP) code | IP20 |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Compliance certificates | RoHS |
|---|---|
| Certification | CSA C22.2 No.107.3-05, FCC Part 15 Class A, UL 1778, REACH |
| Rack mount kit | Yes |
|---|---|
| Cables included | USB cable |
| Manual | Yes |
| Sustainability certificates | ENERGY STAR |
|---|
| Width | 432 mm |
|---|---|
| Depth | 719 mm |
| Height | 263 mm |
| Weight | 104.3 kg |
| Bracket | Yes |
|---|---|
| Temperature sensor | Yes |
| Resource CD | Yes |
| Warranty card | Yes |
| Package width | 622 mm |
| Package depth | 960 mm |
| Package height | 624 mm |
| Package weight | 117.9 kg |
| Products per pallet | 6 pc(s) |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
