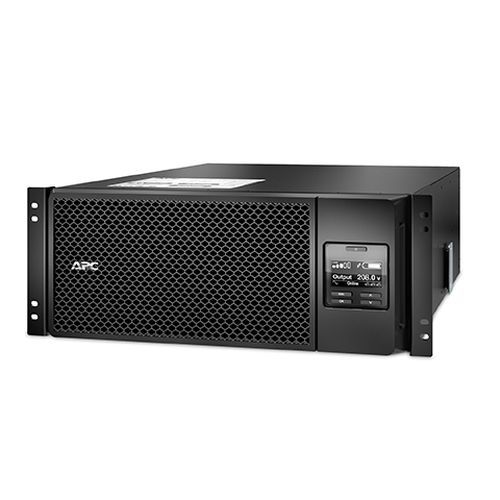

APC SRT6KRMXLT uninterruptible power supply (UPS) Double-conversion (Online) 6 kVA 6000 W 6 AC outlet(s)
Part number SRT6KRMXLT
SMART UPS SRT 6000VA RM 208V
- Double-conversion (Online)
- 6 kVA 6000 W
- Waveform: Sine
- 6 AC outlet(s)
- Sealed Lead Acid (VRLA)
- Rackmount Black
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- SRT6KRMXLT
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
APC Smart-UPS On-Line,6000 Watts /6000 VA,Input 208V /Output 208V, Interface Port Contact Closure, RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB, Extended runtime model, Rack Height 4 U
Includes: CD with software, Documentation CD, Installation guide, Rack Mounting brackets, Rack mounting hardware, Rack Mounting support rails, Temperature Probe, USB cable, Warranty card, Web/SNMP Management Card.
Specifications
| UPS topology | Double-conversion (Online) |
|---|---|
| Output power capacity | 6 kVA |
| Output power | 6000 W |
| Waveform | Sine |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 275 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 480 J |
| Crest factor | 3:1 |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| AC outlet types | NEMA L6-20R, NEMA L6-30R |
|---|---|
| AC outlets quantity | 6 AC outlet(s) |
| USB 2.0 ports quantity | 1 |
| Serial ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Battery technology | Sealed Lead Acid (VRLA) |
|---|---|
| Battery recharge time | 1.50 h |
| Form factor | Rackmount |
|---|---|
| Rack capacity | 4U |
| Product colour | Black |
| Display type | LCD |
| LED indicators | Yes |
| International Protection (IP) code | IP20 |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Operating relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Compliance certificates | RoHS |
|---|---|
| Certification | CSA, FCC, NOM, UL |
| Sustainability certificates | ENERGY STAR |
|---|
| Width | 432 mm |
|---|---|
| Depth | 719 mm |
| Height | 174 mm |
| Weight | 61.2 kg |
| Package width | 610 mm |
|---|---|
| Package depth | 960 mm |
| Package height | 370 mm |
| Package weight | 68 kg |
| Products per pallet | 6 pc(s) |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
