Products › Power & Rack Equipment

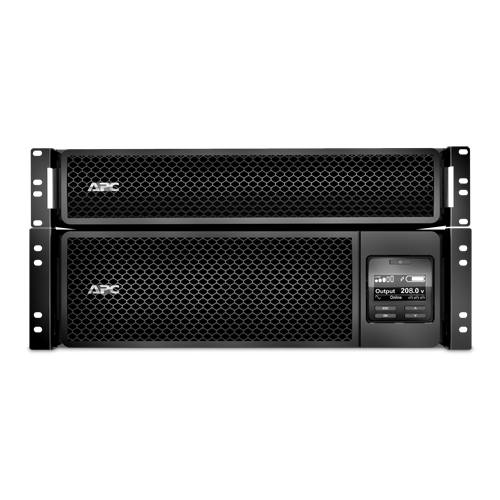

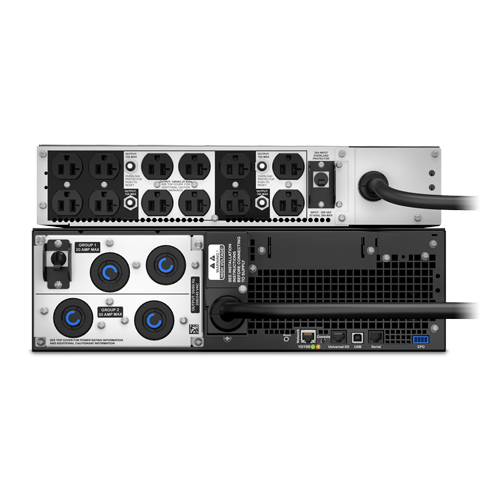

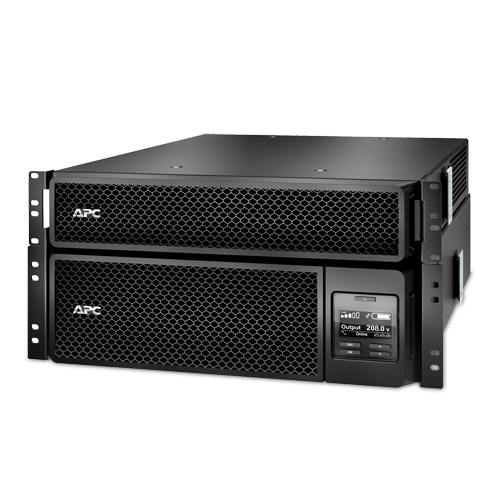

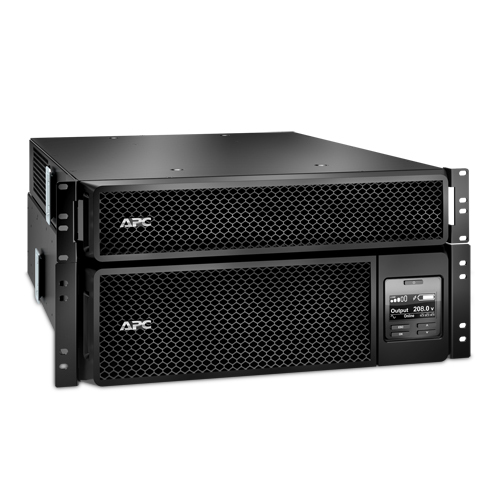

APC Smart-UPS SRT 5000VA 208V - 120V Step-Down Transformer uninterruptible power supply (UPS) Double-conversion (Online) 5 kVA 4.25 W 15 AC outlet(s)
Part number SRT5KRMXLT-5KTF
SMARTUPS SRT 5000VA RM 208V TO 120V 2U STEPDOWN TRANSF DS ONLY
- Double-conversion (Online)
- 5 kVA 4.25 W
- Waveform: Sine
- 15 AC outlet(s)
- Sealed Lead Acid (VRLA) 840 Ah
- Rackmount/Tower Black
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- SRT5KRMXLT-5KTF
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
High density, double-conversion on-line power protection with scalable runtime.
- Generator compatible
- Cold-start capable
- Power conditioning
- Frequency and voltage regulation
- 208/240V to 120V Step-Down Transformer
- Resettable circuit breaker
- Safety-agency approved
- Network manageable
- Low operating and maintenance costs with proven reliability and intelligent battery management
- Avoids costly power problems by keeping your IT equipment and data protected and available
- Peace of mind that comes with full equipment compatibility and reliability of a leader
- Save time with easy and convenient remote accessibility
Specifications
| UPS topology | Double-conversion (Online) |
|---|---|
| Output power capacity | 5 kVA |
| Output power | 4.25 W |
| Waveform | Sine |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 275 V |
| Input frequency | 40 - 70 Hz |
| Output operation voltage (min) | 120 V |
| Output operation voltage (max) | 208 V |
| Output frequency | 50/60 Hz |
| Automatic Voltage Regulation (AVR) | Yes |
| Surge energy rating | 480 J |
| Efficiency | 93.4% |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Noise level | 55 dB |
| Surge protection | Yes |
| Power protection features | Overload |
| Audible alarm(s) | Yes |
| Auto-restart | Yes |
| AC outlet types | NEMA L5-20R, NEMA L6-20R, NEMA L6-30R |
|---|---|
| Power plug | NEMA L6-30P |
| AC outlets quantity | 15 AC outlet(s) |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 3 |
| Battery technology | Sealed Lead Acid (VRLA) |
|---|---|
| Battery capacity | 840 Ah |
| Typical backup time at full load | 5 min |
| Typical backup time at half load | 14 min |
| Battery recharge time | 1.5 h |
| Hot-swap battery | Yes |
| Automatic battery test | Yes |
| Cold start | Yes |
| Form factor | Rackmount/Tower |
|---|---|
| Housing material | Steel |
| Rack capacity | 5U |
| Cable length | 3.05 m |
| Product colour | Black |
| Display type | LCD |
| LED indicators | Battery replacement |
| International Protection (IP) code | IP20 |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Operating relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Compliance certificates | RoHS |
|---|
| Rack mount kit | Yes |
|---|---|
| Cables included | USB cable |
| Quick installation guide | Yes |
| Sustainability certificates | ENERGY STAR |
|---|
| Width | 432 mm |
|---|---|
| Depth | 719 mm |
| Height | 218 mm |
| Weight | 98.9 kg |
| Bracket | Yes |
|---|---|
| Resource CD | Yes |
| Package width | 622 mm |
| Package depth | 960 mm |
| Package height | 584 mm |
| Package weight | 117.9 kg |
| Products per pallet | 3 pc(s) |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
