Products › Power & Rack Equipment

APC BY SCHNEIDER ELECTRIC

APC Smart-UPS On-Line, 3kVA, Tower, 208V/230V, 6x C13+2x C19 IEC outlets, SmartSlot, Extended runtime, W/O rail kit

Part number SRT3000XLW-IEC

SMART-UPS SRT 3000VA 208/230V IEC

  • Double-conversion (Online)
  • 3 kVA 2700 W
  • Waveform: Sine
  • 8 AC outlet(s)
  • Sealed Lead Acid (VRLA)
  • Tower Black
Manufacturer
APC BY SCHNEIDER ELECTRIC
Part number
SRT3000XLW-IEC
Condition
New
Category
Power & Rack Equipment › Power Equipment
1GPA category
Hardware

Overview

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with BS1363A British, IEC 320 C20, and Schuko CEE 7/EU1-16P inputs, 6x IEC 320 C13 and 2x IEC 320 C19 outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This On-Line UPS features Unity Power Factor for best-in-class power density. With 10 outlets and a compatibility with external battery packs, this server UPS provides uninterrupted and scalable battery power to connected electronics. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. Use the intuitive LCD interface and PowerChute Business software to configure settings and monitor usage. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTRK4 (4-post) and SRTRK3 (2-post) rail kits sold separately. A built-in energy meter measures energy use and displays UPS efficiency in various modes of operation for easy energy tracking. Two switchable outlet groups are included for individual load management. Predictive battery management provides an estimated date of when battery replacement is recommended. Package Contains UPS, CD with software, Documentation CD, Installation guide, Removable support feet, Smart UPS signalling RS-232 cable, USB cable.

Specifications

Features
UPS topologyDouble-conversion (Online)
Output power capacity3 kVA
Output power2700 W
WaveformSine
Input operation voltage (min)100 V
Input operation voltage (max)275 V
Input frequency40/70 Hz
Output operation voltage (min)220 V
Output operation voltage (max)240 V
Output frequency regulation50/60 Hz
Surge energy rating340 J
Efficiency92.4%
Emergency Power Off (EPO)Yes
Noise level55 dB
Surge protectionYes
Audible alarm(s)Yes
Web-based managementYes
Auto-restartYes
Ports & interfaces

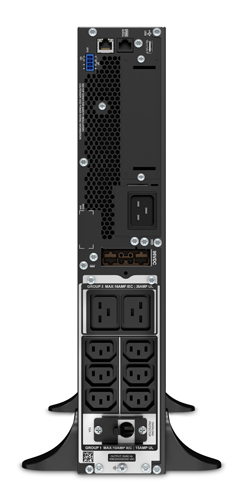

AC outlet typesC13 coupler, C19 coupler
Power plugC20 coupler
AC outlets quantity8 AC outlet(s)
USB portYes
Serial interfaceYes
Serial interface typeRJ-45
SmartSlotYes
SmartConnect portNo
Battery
Battery technologySealed Lead Acid (VRLA)
Battery capacity505 VAh

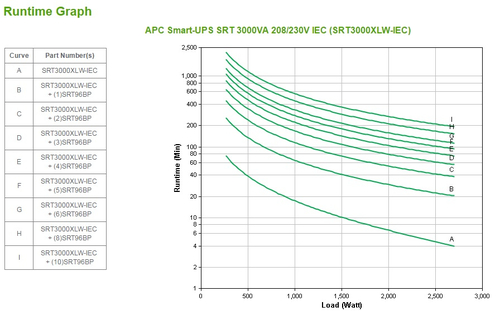

Typical backup time at full load4 min
Typical backup time at half load11.8 min
Battery life (max)5 year(s)
Battery recharge time3 h
Hot-swap batteryYes
Automatic battery testYes
Cold startYes
Design

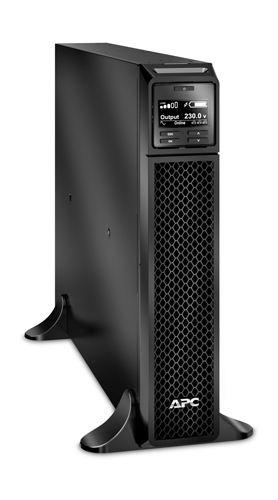

Form factorTower
Cable length2.44 m
Product colourBlack

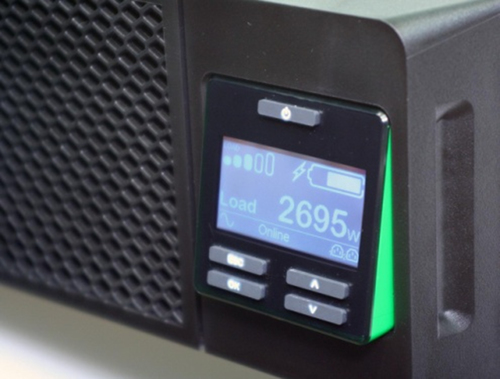

Display typeLCD
LED indicatorsYes
International Protection (IP) codeIP20
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 45 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 15000 m
Certificates
Compliance certificatesRoHS
CertificationCE, CE Mark, CSA C22.2 No.107.3-05, EAC, EN/IEC 62040-1, EN/IEC 62040-2, FCC Part 15 Class A, RCM, UL 1778, VDE, REACH
Packaging content
Cables includedRS-232, USB cable
Management card includedNo
Quick installation guideYes
Sustainability
Sustainability certificatesENERGY STAR
Weight & dimensions
Width85 mm
Depth635 mm
Height432 mm
Weight31.3 kg
Packaging data
Software CDYes
Package width599 mm
Package depth871 mm
Package height246 mm
Package weight36.7 kg
Logistics data
Products per pallet6 pc(s)
Harmonized System (HS) code85078000
Total carbon footprint (kg of CO2e)4961.68
Other features
Packaging contentRemovable support feet

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
