APC SRT3000XLT uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 2700 W 3 AC outlet(s)
Part number SRT3000XLT
APC SMART-UPS SRT 3000VA 208V
- Double-conversion (Online)
- 3 kVA 2700 W
- Waveform: Sine
- 3 AC outlet(s)
- Sealed Lead Acid (VRLA) 96 V
- Tower Black
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- SRT3000XLT
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
APC Smart-UPS SRT 3000VA 208V
High density, double-conversion on-line power protection with scalable runtime
Includes : CD with software , Documentation CD , Installation guide , Removable support feet , USB cable , Warranty card
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
ECO Mode
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
LCD graphics display
Text and mimic diagrams that display modes of operation, system parameters and alarms.
Rack/Tower convertible
Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
Smart-UPS On-Line Features & Benefits
Availability
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS power overload or fault.
Scalable runtime
Allows additional run time to be quickly added as needed.
Manageability
Network manageable
Provides remote power management of the UPS over the network.
Specifications
| UPS topology | Double-conversion (Online) |
|---|---|
| Output power capacity | 3 kVA |
| Output power | 2700 W |
| Waveform | Sine |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 275 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 208 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 340 J |
| Efficiency | 91% |
| Crest factor | 3:1 |
| Emergency Power Off (EPO) | Yes |
| Noise level | 55 dB |
| Audible alarm(s) | Yes |
| Audible alarm modes | Battery replacement |

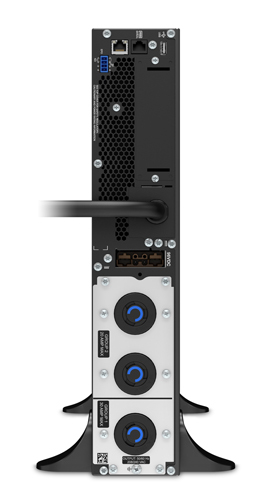

| AC outlet types | NEMA L6-20R, NEMA L6-30P |
|---|---|
| Power plug | NEMA L6-20P |
| AC outlets quantity | 3 AC outlet(s) |
| USB 2.0 ports quantity | 1 |
| Serial ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Battery technology | Sealed Lead Acid (VRLA) |
|---|---|
| Battery voltage | 96 V |
| Number of batteries supported | 1 |
| Typical backup time at full load | 2.3 min |
| Typical backup time at half load | 8.3 min |
| Battery recharge time | 3 h |
| Form factor | Tower |
|---|---|
| Product colour | Black |
| International Protection (IP) code | IP20 |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Certification | CSA C22.2 No.107.3-05, FCC Part 15 Class A, UL 1778 |
|---|
| Sustainability certificates | ENERGY STAR |
|---|
| Width | 85 mm |
|---|---|
| Depth | 635 mm |
| Height | 432 mm |
| Weight | 31.3 kg |
| Package width | 599 mm |
|---|---|
| Package depth | 871 mm |
| Package height | 246 mm |
| Package weight | 36.7 kg |
| Package type | Box |
| Products per pallet | 6 pc(s) |
|---|
