Products › Power & Rack Equipment

APC BY SCHNEIDER ELECTRIC

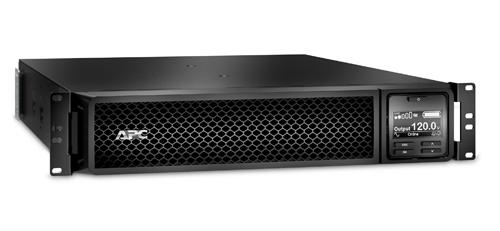

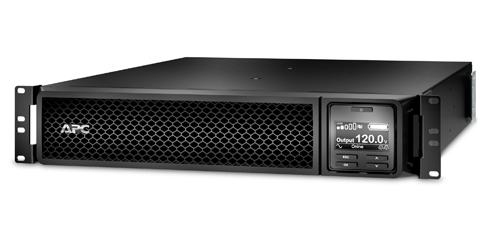

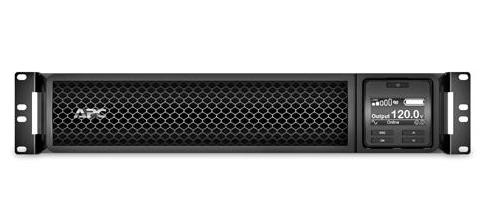

APC Smart-UPS On-Line, 3kVA, Rackmount 2U, 120V, 8x 5-20R+1x L5-30R NEMA outlets, SmartSlot, Extended runtime, W/ rail kit

Part number SRT3000RMXLA

APC SMART-UPS SRT 3000VA RM 120V

  • Double-conversion (Online)
  • 3 kVA 2700 W
  • Waveform: Sine
  • Sealed Lead Acid (VRLA) 454 Ah
  • Rackmount/Tower Black
Manufacturer
APC BY SCHNEIDER ELECTRIC
Part number
SRT3000RMXLA
Condition
New
Category
Power & Rack Equipment › Power Equipment
1GPA category
Hardware

Overview

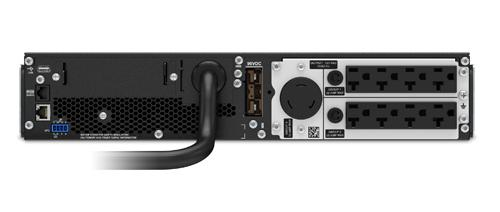

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with NEMA 5-30P input, 8x NEMA 5-20R and 1x NEMA L5-30R outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This On-Line UPS features Unity Power Factor for best-in-class power density. With 9 outlets and a compatibility with external battery packs, this server UPS provides uninterrupted and scalable battery power to connected electronics. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. Use the intuitive LCD interface and PowerChute Business software to configure settings and monitor usage. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This 2700 watt UPS offers a green mode to ensure you are operating at the highest level of efficiency while it’s smart battery management maximizes performance. A built-in energy meter measures energy use and displays UPS efficiency in various modes of operation for easy energy tracking. Two switchable outlet groups are included for individual load management. Predictive battery management provides an estimated date of when battery replacement is recommended. Package Contains UPS, CD with software, Documentation CD, Installation guide, Rack mounting brackets, Rack mounting support rails, USB cable, Warranty card.

Specifications

Features
UPS topologyDouble-conversion (Online)
Output power capacity3 kVA
Output power2700 W
WaveformSine
Input operation voltage (min)108 V
Input operation voltage (max)150 V
Input frequency40 - 70 Hz
Output operation voltage (min)120 V
Output operation voltage (max)120 V
Output frequency50/60 Hz
Surge energy rating340 J
Crest factor3:1
Emergency Power Off (EPO)Yes
Output voltage Total Harmonic Distortion (THD)2%
Noise level55 dB
Surge protectionYes
Audible alarm(s)Yes
Auto-restartYes
Ports & interfaces
AC outlet typesNEMA 5–20R, NEMA L5-20R
Power plugNEMA L5-30P
USB portYes
Serial interfaceYes
Serial interface typeRJ-45
SmartSlotYes
Battery
Battery technologySealed Lead Acid (VRLA)
Battery capacity454 Ah
Typical backup time at full load3.3 min
Typical backup time at half load10.3 min
Battery life (max)5 year(s)
Hot-swap batteryYes
Automatic battery testYes
Cold startYes
Replacement battery cartridgeAPCRBC152
Design
Form factorRackmount/Tower
Rack capacity2U
Cable length2.44 m
Product colourBlack
Display typeLCD
LED indicatorsAlarm, Status
International Protection (IP) codeIP20
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 45 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Certificates
Compliance certificatesRoHS
CertificationCSA C22.2 No.107.3-05, FCC Part 15 Class A, OSHPD, UL 1778
Packaging content
Cables includedUSB cable
Quick installation guideYes
Sustainability
Sustainability certificatesENERGY STAR
Weight & dimensions
Width432 mm
Depth635 mm
Height85 mm
Weight31.3 kg
Packaging data
BracketYes
Resource CDYes
Warranty cardYes
Software CDYes
Package width599 mm
Package depth871 mm
Package height246 mm
Package weight39.9 kg
Logistics data
Products per pallet6 pc(s)

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
