APC BY SCHNEIDER ELECTRIC

APC Smart-UPS On-Line, 2200VA, Tower, 230V, 8x C13+2x C19 IEC outlets, SmartSlot, Extended runtime, W/O rail kit

Part number SRT2200XLI

SRT2200XLI - UPS - RACK-MOUNTABLE - ONLINE - 230 V - 1980WATT - RJ-45 SERIAL, SM

  • Double-conversion (Online)
  • 2.2 kVA 1980 W
  • Waveform: Sine
  • 10 AC outlet(s)
  • Sealed Lead Acid (VRLA)
  • Rackmount/Tower Black
Manufacturer
APC BY SCHNEIDER ELECTRIC
Part number
SRT2200XLI
Condition
New
Category
Power & Rack Equipment › Power Equipment
1GPA category
Hardware

Overview

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 2200VA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with BS1363A British, IEC 320 C20, and Schuko CEE 7/EU1-16P inputs, 8x IEC 320 C13 and 2x IEC 320 C19 outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. It comes with BS1363A British, IEC 60320 C20, and Schuko CEE 7/EU1-16P inputs, 8x IEC 320 C13/60320 C13 and 2x IEC 320 C19/60320 C19 outlets. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTRK4 (4-post) and SRTRK3 (2-post) rail kits sold separately. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

Specifications

Features
UPS topologyDouble-conversion (Online)
Output power capacity2.2 kVA
Output power1980 W
WaveformSine
Input operation voltage (min)100 V
Input operation voltage (max)275 V
Input frequency40/70 Hz
Output operation voltage (min)220 V
Output operation voltage (max)240 V
Output frequency50/60 Hz
Surge energy rating340 J
Efficiency92.2%
Crest factor3:1
Emergency Power Off (EPO)Yes
Noise level55 dB
Surge protectionYes
Audible alarm(s)Yes
Web-based managementYes
Auto-restartYes
Ports & interfaces

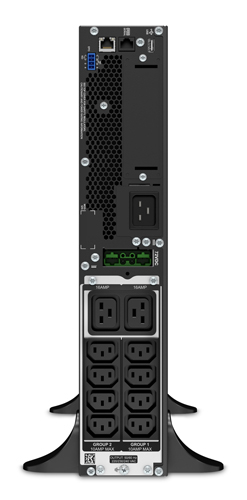

AC outlet typesC13 coupler, C19 coupler
Power plugC20 coupler
AC outlets quantity10 AC outlet(s)
Number of output IEC jumpers2
USB portYes
Serial interfaceYes
Serial interface typeRJ-45
SmartSlotYes
SmartConnect portNo
Battery
Battery technologySealed Lead Acid (VRLA)
Battery capacity367 VAh
Number of batteries supported1

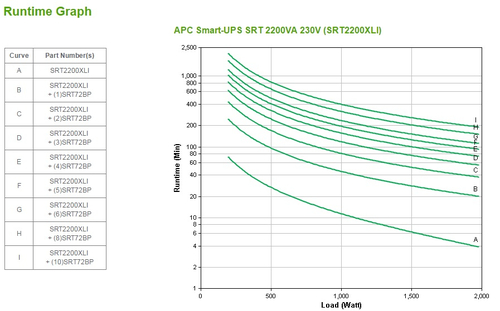

Typical backup time at full load3.9 min
Typical backup time at half load11.6 min
Battery life (max)5 year(s)
Battery recharge time3 h
Hot-swap batteryYes
Automatic battery testYes
Cold startYes
Design
Form factorRackmount/Tower
Cable length2.44 m
Product colourBlack

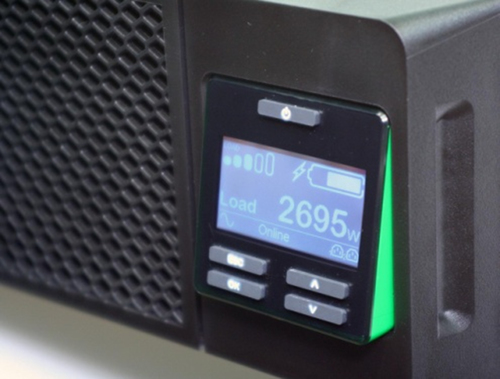

Display typeLCD
LED indicatorsYes
International Protection (IP) codeIP20
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 45 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 15000 m
Certificates
Compliance certificatesRoHS
CertificationCE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH
Packaging content
Cables includedUSB cable
Management card includedNo
Quick installation guideYes
Sustainability
Sustainability certificatesENERGY STAR, Green Premium
Weight & dimensions
Width85 mm
Depth584 mm
Height432 mm
Weight25 kg
Packaging data
BracketYes
Warranty cardYes
Software CDYes
Package width599 mm
Package depth810 mm
Package height246 mm
Package weight30.8 kg
Logistics data
Products per pallet12 pc(s)
Harmonized System (HS) code85078000
Total carbon footprint (kg of CO2e)3634.43
Other features
InterfaceSmartSlot
Nominal output voltage230 V
Nominal input voltage230 V
Packaging contentPower cord Removable support feet

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
