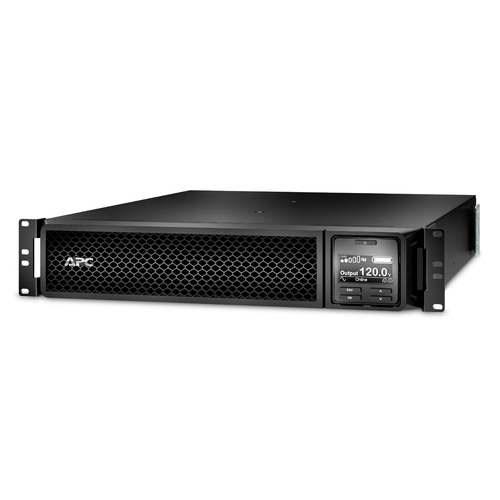

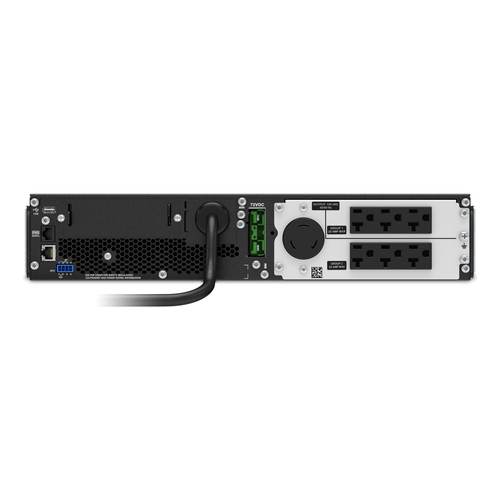

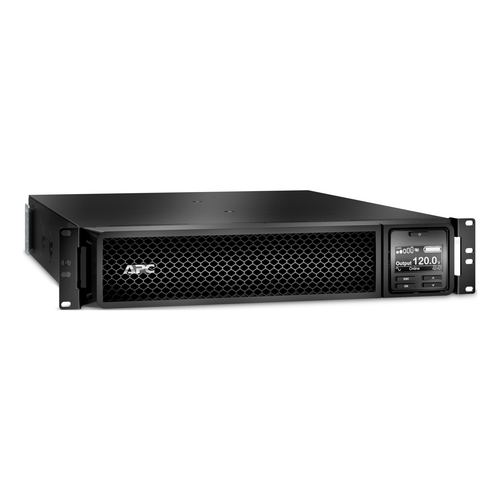

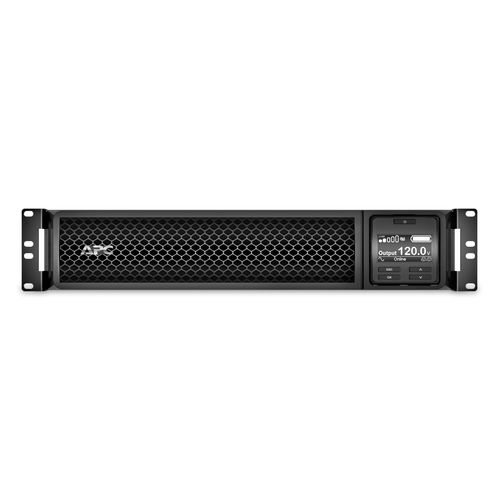

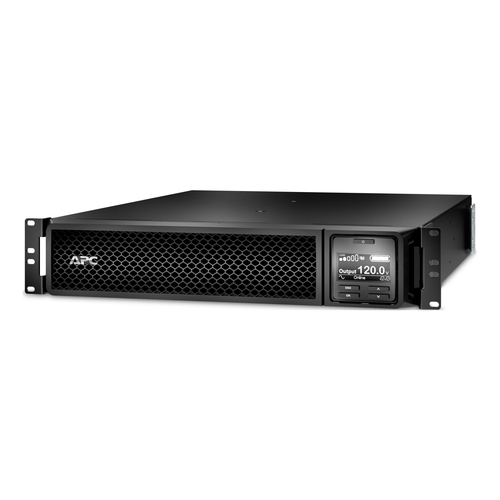

APC SRT2200RMXLA uninterruptible power supply (UPS) Double-conversion (Online) 2.2 kVA 1800 W
Part number SRT2200RMXLA
APC SMART UPS SRT 2200VA RM 120V
- Double-conversion (Online)
- 2.2 kVA 1800 W
- Waveform: Sine
- Sealed Lead Acid (VRLA) 306 Ah
- Rackmount/Tower Black
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- SRT2200RMXLA
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
APC Smart-UPS SRT 2200VA RM 120V
- High density, double-conversion on-line power protection with scalable runtime
- Includes : CD with software , Documentation CD , Installation guide , Rack Mounting brackets , Rack mounting hardware , Rack Mounting support rails , USB cable , Warranty card
- Battery failure notification
- Provides early-warning fault analysis on batteries enabling timely preventive maintenance
- ECO Mode
- Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
- LCD graphics display
- Text and mimic diagrams that display modes of operation, system parameters and alarms.
- Rack/Tower convertible
Availability
Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Scalable runtime
Allows additional run time to be quickly added as needed.
Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS power overload or fault.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
Manageability
SmartSlot
Customize UPS capabilities with management cards.
LED status indicators
Quickly understand unit and power status with visual indicators.
InfraStruXure Manager Compatible
Specifications
| UPS topology | Double-conversion (Online) |
|---|---|
| Output power capacity | 2.2 kVA |
| Output power | 1800 W |
| Waveform | Sine |
| Input operation voltage (min) | 108 V |
| Input operation voltage (max) | 150 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 120 V |
| Output operation voltage (max) | 120 V |
| Output frequency | 50/60 Hz |
| Surge energy rating | 340 J |
| Crest factor | 3:1 |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Noise level | 55 dB |
| Surge protection | Yes |
| Audible alarm(s) | Yes |
| Auto-restart | Yes |
| AC outlet types | NEMA 5–20R, NEMA L5-20R |
|---|---|
| Power plug | NEMA 5-20P |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RJ-45 |
| Serial ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| SmartSlot | Yes |
| Battery technology | Sealed Lead Acid (VRLA) |
|---|---|
| Battery capacity | 306 Ah |
| Typical backup time at full load | 3.3 min |
| Typical backup time at half load | 10.3 min |
| Battery life (max) | 5 year(s) |
| Hot-swap battery | Yes |
| Automatic battery test | Yes |
| Cold start | Yes |
| Replacement battery cartridge | APCRBC141 |
| Form factor | Rackmount/Tower |
|---|---|
| Rack capacity | 2U |
| Cable length | 1.83 m |
| Product colour | Black |
| Display type | LCD |
| LED indicators | Alarm, Status |
| International Protection (IP) code | IP20 |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Compliance certificates | RoHS |
|---|---|
| Certification | CSA C22.2 No.107.3-05, FCC Part 15 Class A, OSHPD, UL 1778 |
| Cables included | USB cable |
|---|---|
| Quick installation guide | Yes |
| Sustainability certificates | ENERGY STAR |
|---|
| Width | 432 mm |
|---|---|
| Depth | 584 mm |
| Height | 85 mm |
| Weight | 24.9 kg |
| Screws included | Yes |
|---|---|
| Bracket | Yes |
| Resource CD | Yes |
| Warranty card | Yes |
| Software CD | Yes |
| Package width | 599 mm |
| Package depth | 810 mm |
| Package height | 246 mm |
| Package weight | 34 kg |
| Products per pallet | 12 pc(s) |
|---|---|
| Harmonized System (HS) code | 85078000 |
