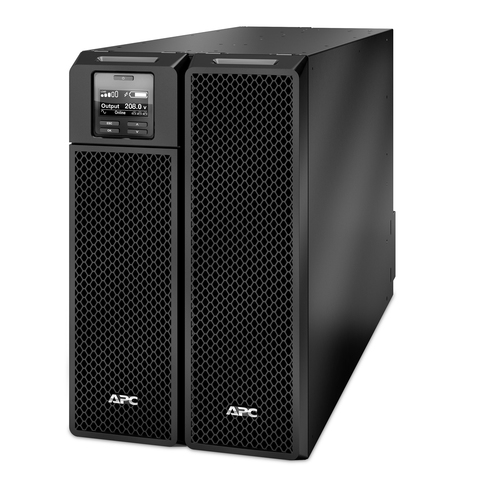

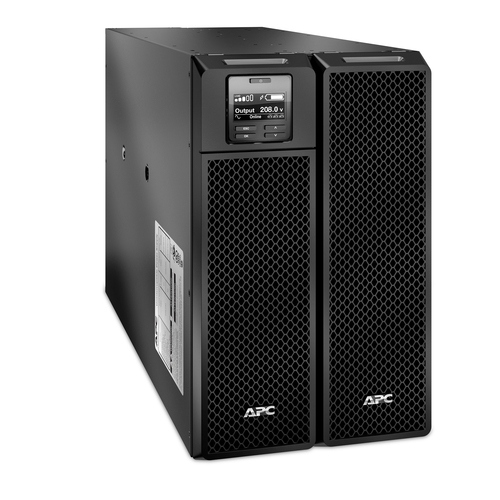

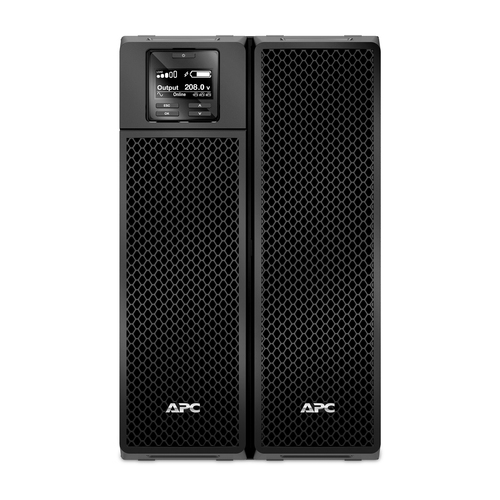

APC SRT10KXLTUS uninterruptible power supply (UPS) Double-conversion (Online) 10 kVA 10000 W
Part number SRT10KXLTUS
SMART UPS SRT 10000VA 208V TAA
- Double-conversion (Online)
- 10 kVA 10000 W
- Waveform: Sine
- Sealed Lead Acid (VRLA) 1799 Ah
- Rackmount/Tower Black
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- SRT10KXLTUS
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
Features
High density, double-conversion on-line power protection with scalable runtime
Includes: CD with software, Documentation CD, Installation guide, Temperature Probe, USB cable, Warranty card, Web/SNMP Management Card
Avoids costly power problems by keeping your IT equipment and data protected and available.
Network grade power conditioning protects from damaging surges and disruptive noise. The double conversion architecture provides tight voltage regulation, frequency regulation ,and zero transfer time to battery during power events.
Low operating and maintenance costs with proven reliability and intelligent battery management.
Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Automatic self tests insure battery reliability and warn customers in advance of battery replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down.
Save time with easy and convenient remote/network accessibility.
Network manageable via serial, USB or Ethernet. Includes Powerchute® Software for convenient monitoring and control, safe operating system shutdown, and innovative energy management capabilities.
Peace of mind that comes with full equipment compatibility and reliability of a leader.
Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.
Specifications
| UPS topology | Double-conversion (Online) |
|---|---|
| Output power capacity | 10 kVA |
| Output power | 10000 W |
| Waveform | Sine |
| Input frequency | 40/70 Hz |
| Surge energy rating | 480 J |
| Crest factor | 3:1 |
| Emergency Power Off (EPO) | Yes |
| Audible alarm(s) | Yes |

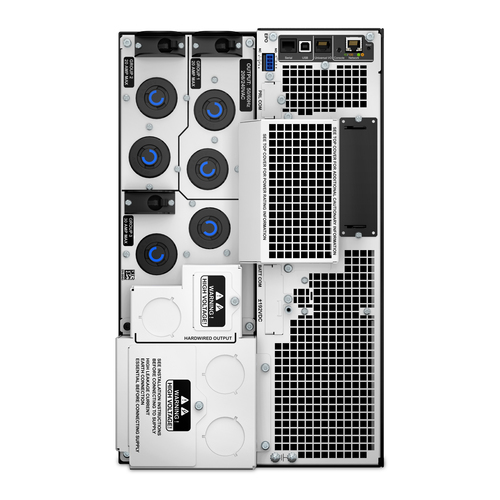

| AC outlet types | Hard Wire 3-wire (2PH + G), NEMA L6-20R, NEMA L6-30R |
|---|---|
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RJ-45 |
| Cabling technology | 10/100Base-T |
| SmartSlot | Yes |
| Battery technology | Sealed Lead Acid (VRLA) |
|---|---|
| Battery capacity | 1799 Ah |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 1.5 h |
| Replacement battery cartridge | APCRBC140 |
| Form factor | Rackmount/Tower |
|---|---|
| Product colour | Black |
| Display type | LCD |
| LED indicators | Yes |
| International Protection (IP) code | IP20 |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Compliance certificates | RoHS |
|---|---|
| Certification | CSA C22.2 No.107.3-05, ENERGY STAR V2.0 (USA), FCC Part 15 Class A, NOM, TAA compliance, UL 1778 |
| Cables included | USB cable |
|---|---|
| Manual | Yes |
| Width | 263 mm |
|---|---|
| Depth | 715 mm |
| Height | 432 mm |
| Weight | 111.6 kg |
| Package width | 600 mm |
|---|---|
| Package depth | 1000 mm |
| Package height | 461 mm |
| Package weight | 126.5 kg |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
