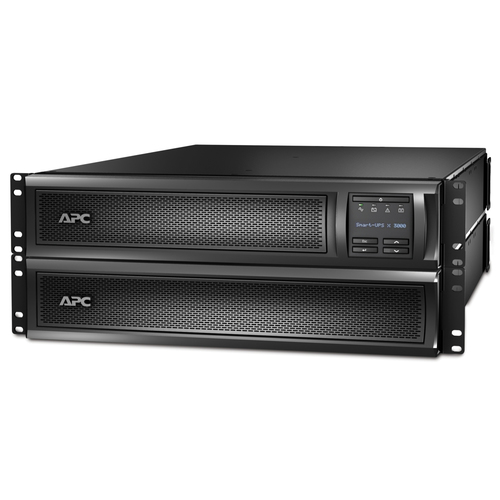

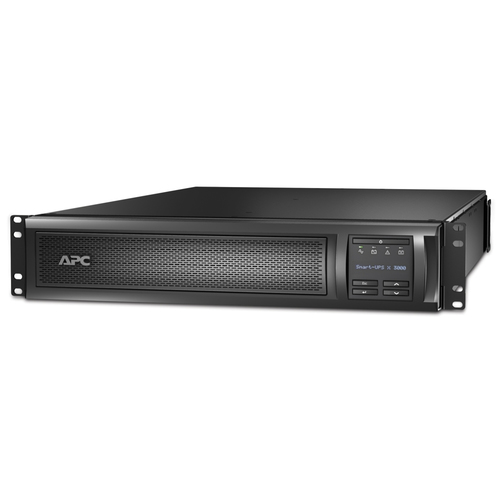

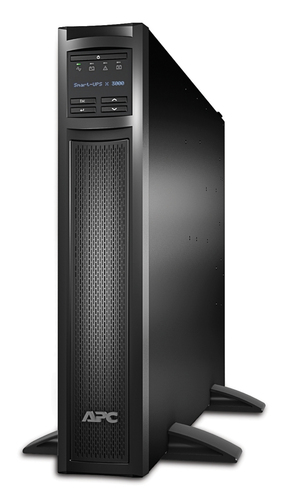

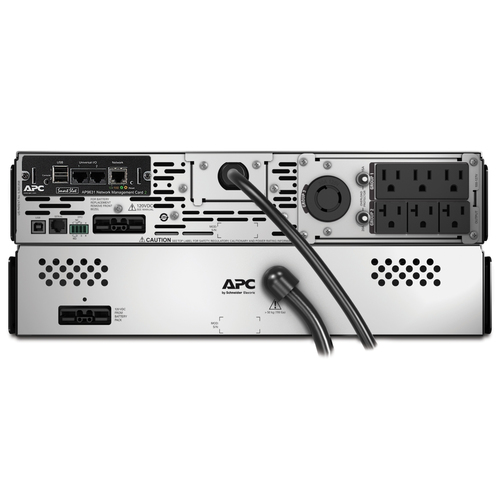

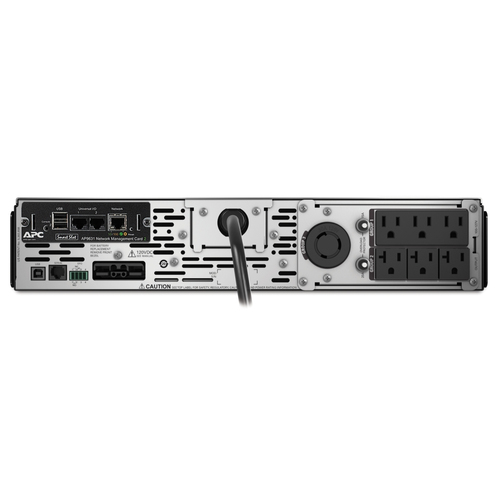

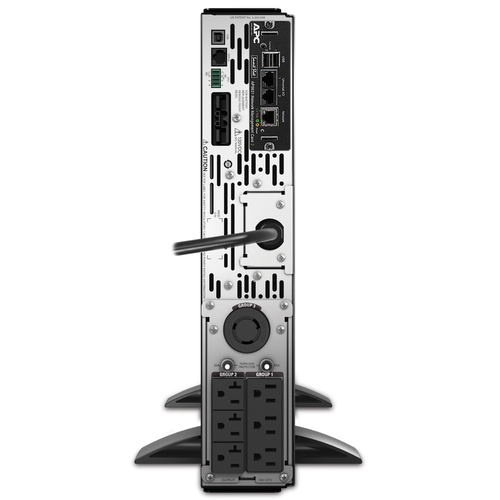

APC SMX3KR2UNCX145 uninterruptible power supply (UPS) Line-Interactive 2.88 kVA 2700 W 5 AC outlet(s)
Part number SMX3KR2UNCX145
SMX3KR2UNCX145 - UPS - RACK-MOUNTABLE - LINE-INTERACTIVE - 120 V - 2700WATT - NE
- Line-Interactive
- 2.88 kVA 2700 W
- Waveform: Sine
- 5 AC outlet(s)
- Sealed Lead Acid (VRLA)
- Rackmount/Tower Black
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- SMX3KR2UNCX145
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Specifications
| UPS topology | Line-Interactive |
|---|---|
| Output power capacity | 2.88 kVA |
| Output power | 2700 W |
| Waveform | Sine |
| Input operation voltage (min) | 70 V |
| Input operation voltage (max) | 153 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 100 V |
| Output operation voltage (max) | 127 V |
| Output frequency | 50/60 Hz |
| Maximum current | 15 A |
| Surge energy rating | 540 J |
| Response time | 4 ms |
| Emergency Power Off (EPO) | Yes |
| Noise level | 55 dB |
| Audible alarm(s) | Yes |
| Audible alarm modes | Low battery alarm |
| Detachable power cord | No |
| AC outlet types | NEMA 5-15R, NEMA 5–20R, NEMA L5-30R |
|---|---|
| Power plug | NEMA L5-30P |
| AC outlets quantity | 5 AC outlet(s) |
| USB port | Yes |
| USB 2.0 ports quantity | 3 |
| USB port type | USB Type-A/USB Type-B |
| Serial interface | Yes |
| Serial interface type | RJ-45 |
| Ethernet LAN (RJ-45) ports | 1 |
| Battery technology | Sealed Lead Acid (VRLA) |
|---|---|
| Battery life (max) | 5 year(s) |
| Battery recharge time | 3 h |
| Form factor | Rackmount/Tower |
|---|---|
| Rack capacity | 2U |
| Cable length | 3.05 m |
| Product colour | Black |
| Control type | Buttons |
| Display type | LED |
| LED indicators | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 15240 m |
| Compliance certificates | RoHS, WEEE |
|---|---|
| Certification | RoHS, WEEE, BSMI, CSA, NOM, TÜV, VCCI Class A |
| Manual | Yes |
|---|
| Width | 432 mm |
|---|---|
| Depth | 667 mm |
| Height | 85 mm |
| Weight | 38.4 kg |
| Package width | 869 mm |
|---|---|
| Package depth | 596 mm |
| Package height | 243 mm |
| Package weight | 45.3 kg |
| Warranty period | 3 year(s) |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
