Overview

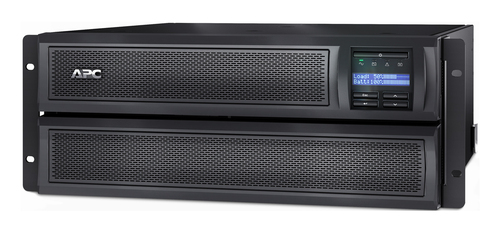

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 3kVA line interactive 4U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA L5-30P input, 6x NEMA 5-15R, 3x NEMA 5-20R and 1x NEMA L5-30R outlets. The Smart-UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.
Specifications
Features
| UPS topology | Line-Interactive |
|---|
| Output power capacity | 2.88 kVA |
|---|
| Output power | 2700 W |
|---|
| Waveform | Sine |
|---|
| Input operation voltage (min) | 70 V |
|---|
| Input operation voltage (max) | 153 V |
|---|
| Input frequency | 50/60 Hz |
|---|
| Output operation voltage (min) | 100 V |
|---|
| Output operation voltage (max) | 120 V |
|---|
| Output frequency | 50/60 Hz |
|---|
| Response time | 2 ms |
|---|
| Number of input phases | 1 |
|---|
| Number of output phases | 1 |
|---|
| Single-phase input voltage supported | 120 V |
|---|
| Emergency Power Off (EPO) | Yes |
|---|
| Noise level | 55 dB |
|---|
| Audible alarm(s) | Yes |
|---|
| Audible alarm modes | Low battery alarm |
|---|
| Detachable power cord | No |
|---|

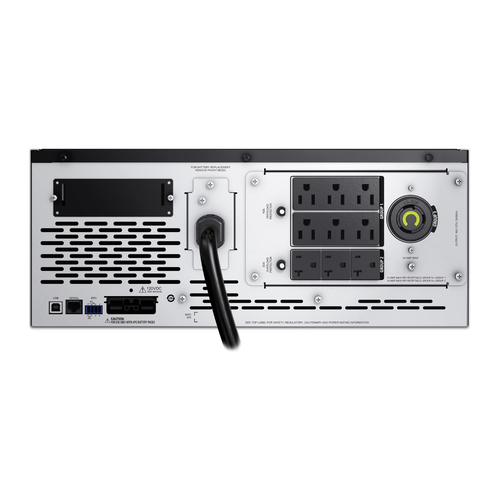

Ports & interfaces
| AC outlet types | NEMA 5-15R |
|---|
| Power plug | NEMA L5-30P |
|---|
| AC outlets quantity | 3 AC outlet(s) |
|---|
| USB port | Yes |
|---|
| USB port type | USB Type-B |
|---|
| Serial interface | Yes |
|---|
| Serial interface type | RJ-45 |
|---|
Battery
| Battery replacement accessibility | End-user |
|---|
| Battery technology | Sealed Lead Acid (VRLA) |
|---|
| Typical backup time at full load | 6.25 min |
|---|
| Typical backup time at half load | 18.3 min |
|---|
| Battery life (max) | 5 year(s) |
|---|
| Battery recharge time | 3 h |
|---|
| Replacement battery cartridge | APCRBC117 |
|---|
Design
| Form factor | Rackmount |
|---|
| Rack capacity | 4U |
|---|
| Cable length | 2.4 m |
|---|
| Product colour | Black |
|---|
| Control type | Buttons |
|---|
| Display type | LED |
|---|
| LED indicators | Yes |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Storage temperature (T-T) | -15 - 45 °C |
|---|
| Operating relative humidity (H-H) | 0 - 95% |
|---|
| Storage relative humidity (H-H) | 0 - 95% |
|---|
| Operating altitude | 0 - 3048 m |
|---|
| Non-operating altitude | 0 - 15240 m |
|---|
Technical details
| Sustainable packaging | No |
|---|
| Packaging recycled materials | Recycled cardboard |
|---|
| SCIP number | 0637234b-27c7-4e32-ae29-543dd4803a99 |
|---|
| Preferred mounting position | lower |
|---|
| Take-back system | No |
|---|
| Packaging without single use plastic | No |
|---|
Certificates
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
|---|
| Compliance certificates | RoHS, REACH, WEEE |
|---|
| Certification | BSMI |
|---|
Sustainability
| Doesn't contain | Mercury |
|---|
Weight & dimensions
| Width | 178 mm |
|---|
| Depth | 483 mm |
|---|
| Height | 432 mm |
|---|
| Weight | 38.6 kg |
|---|
Packaging data
| Package width | 588 mm |
|---|
| Package depth | 663 mm |
|---|
| Package height | 330 mm |
|---|
| Package weight | 47.6 kg |
|---|
Logistics data
| Customs product code (TARIC) | 8504409590 |
|---|
| Total carbon footprint (kg of CO2e) | 3240.8561754502 |
|---|
| Warranty period | 3 year(s) |
|---|
| Country of origin | United States |
|---|
Other features
| Input connection type | NEMA L5-30P |
|---|
| Output connection type | 3 NEMA5-15R |
|---|
| Output voltage | 120 V |
|---|
| Mounting | front |
|---|
| Equipment protection policy | lifetime : $150000 |
|---|
