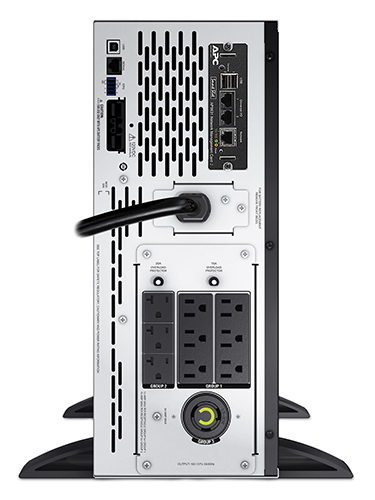

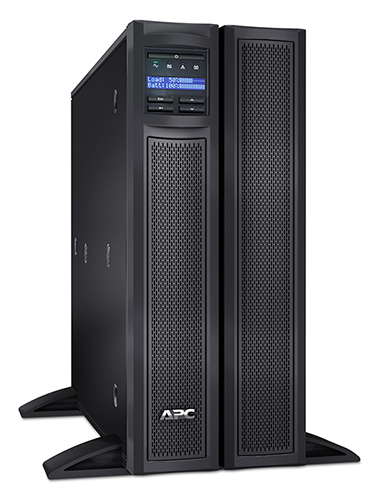

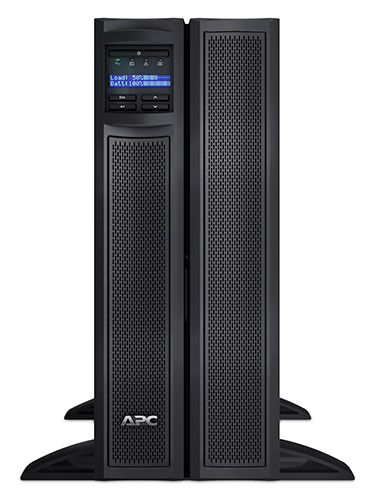

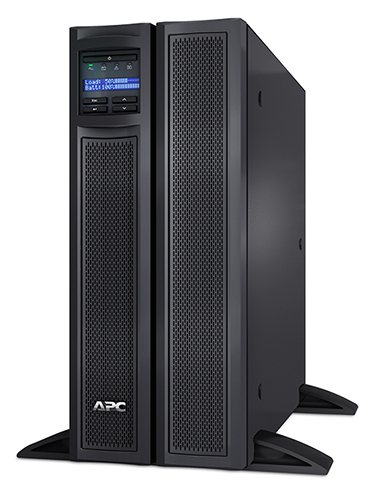

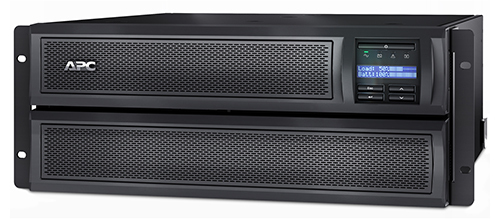

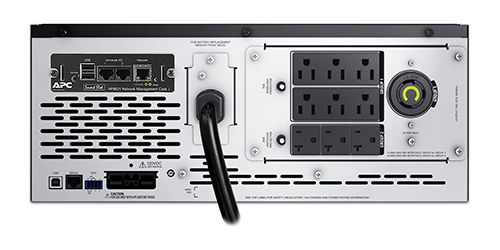

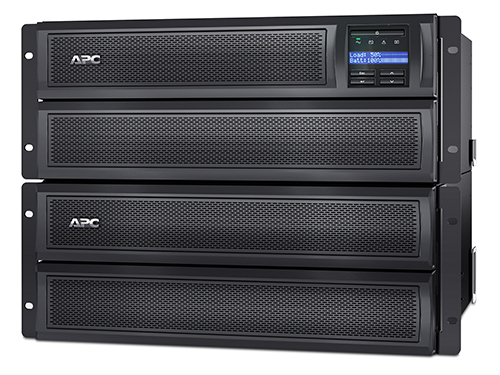

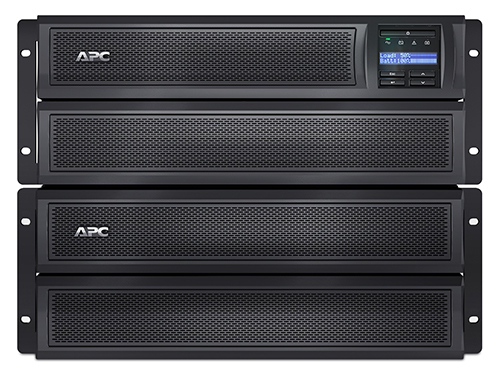

APC SMX3000LVNC uninterruptible power supply (UPS) 3 kVA 2700 W 7 AC outlet(s)
Part number SMX3000LVNC
SMART UPS X 3000VA RT 100/127V L5-30P LCD WITH NETWORK CARD
- 3 kVA 2700 W
- Waveform: Sine
- 7 AC outlet(s)
- Sealed Lead Acid (VRLA)
- Rackmount/Tower Black
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- SMX3000LVNC
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
High frequency design
Reduces or eliminates bulky transformers resulting in lighter units for ease of handling.
Auto recognition of external batteries
UPS recognizes when external battery packs are attached and automatically adjusts runtime.
Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
Energy meter
Provides actual kilowatt hours of usage for energy conscious users.
Outlet group control
Turn on/off, reboot or shut down select outlet groups to save dispatching technicians to remote locations (for UPSs with switched outlet groups).
Load shedding
Turn off select outlet groups in a pre-determined sequence to shed less critical equipment and conserve runtime (UPSs with switched outlet groups).
Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Multiple switched outlet groups
Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
Wide input voltage range
Designed for harsh electrical environments to save battery life.
StruxureWare Central compatible
Enables centralized management via StruxureWare Central.
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
High online efficiency
Reduces utlility costs, generates less heat.
LED Indicators
Provide easy-to-read status of the unit and utility power conditions.
Specifications
| Output power capacity | 3 kVA |
|---|---|
| Output power | 2700 W |
| Waveform | Sine |
| Input operation voltage (min) | 70 V |
| Input operation voltage (max) | 153 V |
| Input frequency | 50/60 Hz |
| Surge energy rating | 540 J |
| Efficiency | 97.5% |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 5% |
| Noise level | 55 dB |
| Audible alarm(s) | Yes |
| AC outlet types | NEMA 5–15R, NEMA 5–20R, NEMA L5-30R |
|---|---|
| Power plug | NEMA 5-30P |
| AC outlets quantity | 7 AC outlet(s) |
| USB 2.0 ports quantity | 1 |
| Battery technology | Sealed Lead Acid (VRLA) |
|---|---|
| Number of batteries supported | 1 |
| Battery recharge time | 3 h |
| Form factor | Rackmount/Tower |
|---|---|
| Rack capacity | 2U |
| Cable length | 2.44 m |
| Product colour | Black |
| Display type | LED |
| LED indicators | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Compliance certificates | RoHS |
|---|---|
| Certification | BSMI, CSA, EN 50091-2, EN 55022 Class A, FCC Part 15 Class A, NOM, TUV, UL 1778, VCCI Class A REACH |
| Width | 178 mm |
|---|---|
| Depth | 483 mm |
| Height | 432 mm |
| Weight | 38.6 kg |
| Package weight | 47.7 kg |
|---|
| Package dimensions (WxDxH) | 586 x 633 x 330 mm |
|---|
