APC Smart-UPS X SMX3000HVNC - 3000VA, 8x C13 + 2x C19 outlet, USB, expandable runtime, short depth, NMC
Part number SMX3000HVNC
SMART-UPS X 3000VA LCD RT 200-240V WITH NETWORK CARD
- Line-Interactive
- 3 kVA 2700 W
- Waveform: Sine
- 10 AC outlet(s)
- Sealed Lead Acid (VRLA)
- Rackmount/Tower Black
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- SMX3000HVNC
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
Stay always online and prevent data loss
As soon as the power fails, an APC Smart-UPS immediately supplies emergency power to all connected equipment. Because an APC UPS does this automatically, you prevent unwanted failure of, for example, a PC, server or switch. With the APC PowerChute Network shutdown software, you can even have critical IT hardware shut down automatically and in a controlled manner when the UPS battery is almost empty. This prevents data loss, downtime and physical damage to hardware.
Extend the runtime
You can easily increase the number of minutes that the APC SMX UPS can independently supply emergency power by connecting external battery packs (SMX120BP). A runtime of several hours is even possible.
Safety
In addition, a Smart-UPS protects connected devices against peak voltage caused by lightning, among other things. This APC emergency power supply is ideally suited for (small) business use.
Manage your Smart-UPS
Thanks to the pre-installed network card (ap9641), you can easily connect the APC UPS to the network. This allows you to monitor and manage the UPS remotely (SNMP) and the UPS can send a shutdown signal to multiple physical and/or virtual servers using PowerChute Network Shutdown software.

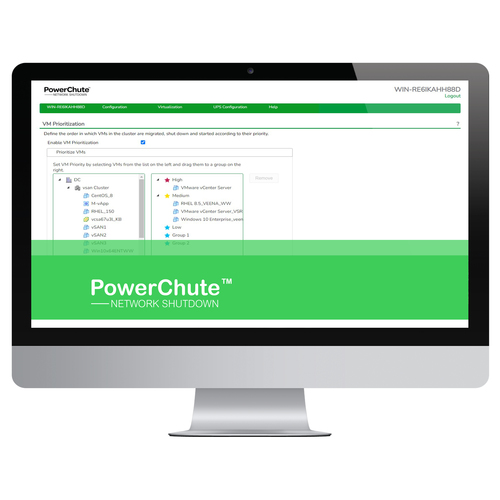

PowerChute Network Shutdown
PowerChute Network Shutdown is UPS management software that works with the UPS Network Management Card to protect Windows, Linux and Host ESXi, but also hyperconverged and virtual infrastructure*. In the event of a power failure, PowerChute can shut down your virtual machines correctly and the pre-configured boot sequence ensures that they are turned back on.
*For HCI and virtual machine support an additional license is required:
1 year: SWPCNS1Y-DIGI
3 years: SWPCNS3Y-DIGI
5 years: SWPCNS5Y-DIGI
Remote management and monitoring of your network
The network card can be managed remotely via the user-friendly web browser interface, remote management software EcoStruxure™ IT (SFTWES1-DIGI) or another SNMP-compatible system. Tip EcoStruxure™ IT also includes the functionalities of the support contract below.
Support contract
The optional network card support contract license* ensures that you are always up-to-date and secure and includes additional benefits such as frequent updates with:
• New and improved functions
• Security updates
• Advanced support
*The above license is available in the following variants:
1 year: SWNMC3SU-1Y-DIGI
3 years: SWNMC3SU-3Y-DIGI
5 years: SWNMC3SU-5Y-DIGI
Ease of use
The basic functionalities can be set and read using physical buttons and an LCD screen.

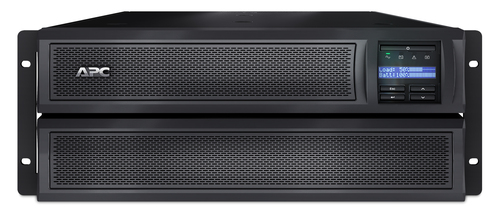

Rack/tower convertible
The APC Smart-UPS SMX is rack/tower convertible. Because both the feet and the front post rack brackets are included, you can mount it in a rack (4U) or place it upright. If you prefer to mount it on all four rack uprights, order the optional SU032A.
Extend the lifespan
Specifications
| UPS topology | Line-Interactive |
|---|---|
| Output power capacity | 3 kVA |
| Output power | 2700 W |
| Waveform | Sine |
| Input operation voltage (min) | 140 V |
| Input operation voltage (max) | 280 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 208 V |
| Output operation voltage (max) | 240 V |
| Automatic Voltage Regulation (AVR) | Yes |
| Surge energy rating | 645 J |
| Hold time (min) | 2 ms |
| Hold time (max) | 10 ms |
| Efficiency | 98.5% |
| Emergency Power Off (EPO) | Yes |
| Noise level | 55 dB |
| Surge protection | Yes |
| Audible alarm(s) | Yes |
| Auto-restart | Yes |
| AC outlet types | C13 coupler, C19 coupler |
|---|---|
| Power plug | C20 coupler |
| AC outlets quantity | 10 AC outlet(s) |
| Number of output IEC jumpers | 2 |
| SmartSlot | Yes |
| SmartConnect port | No |
| Battery technology | Sealed Lead Acid (VRLA) |
|---|---|
| Battery capacity | 738 VAh |

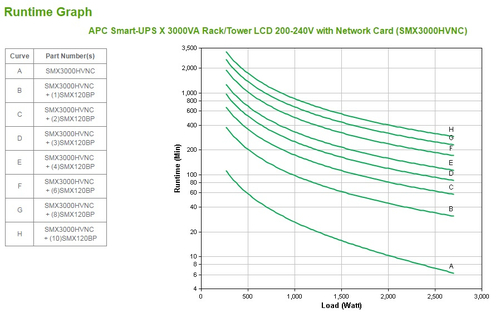

| Typical backup time at full load | 6.25 min |
| Typical backup time at half load | 18 min |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 3 h |
| Hot-swap battery | Yes |
| Automatic battery test | Yes |
| Form factor | Rackmount/Tower |
|---|---|
| Rack capacity | 4U |
| Cable length | 2.44 m |
| Product colour | Black |
| Display type | LCD |
| LED indicators | Status, Battery replacement |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Compliance certificates | RoHS |
|---|---|
| Certification | C-tick, CE, CSA, EN 50091-1, EN 50091-2, EN 55022 Class A, EN 60950, FCC Part 15 Class A, GOST, IRAM, UL 1778, VDE, REACH |
| Rack mount kit | Yes |
|---|---|
| Cables included | RS-232 |
| Management card included | Yes |
| Manual | Yes |
| Width | 178 mm |
|---|---|
| Depth | 483 mm |
| Height | 432 mm |
| Weight | 38.6 kg |
| Temperature sensor | Yes |
|---|---|
| Software CD | Yes |
| Package width | 586 mm |
| Package depth | 633 mm |
| Package height | 330 mm |
| Package weight | 47.7 kg |
| Products per pallet | 6 pc(s) |
|---|---|
| Harmonized System (HS) code | 85078000 |
| Total carbon footprint (kg of CO2e) | 2790.64 |
| Nominal output voltage | 230 V |
|---|---|
| Packaging content | Web/SNMP Management Card |
