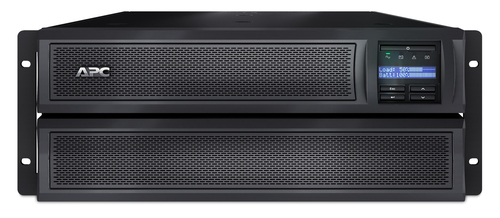

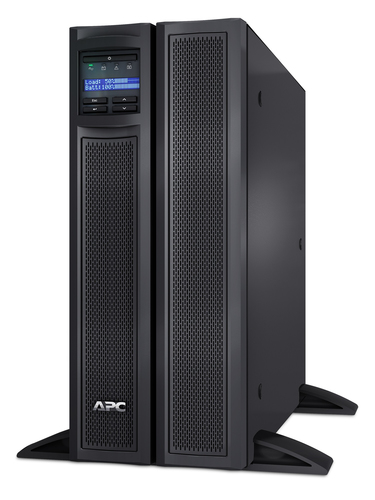

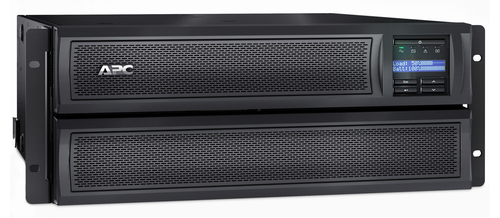

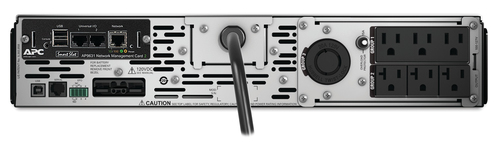

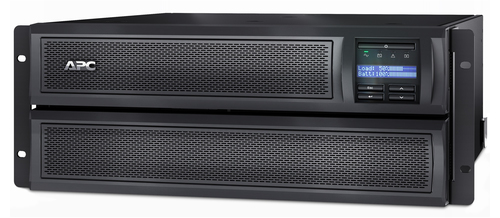

APC SMX2KRMLVNCUS uninterruptible power supply (UPS) Line-Interactive 1.92 kVA 1800 W
Part number SMX2KRMLVNCUS
THIS APC SMART-UPS IS DESIGNED FOR IT MANAGERS OR NETWORK ADMINISTRATORS TO MAIN
- Line-Interactive
- 1.92 kVA 1800 W
- Waveform: Sine
- Sealed Lead Acid (VRLA) 690 Ah
- Rackmount/Tower Black
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- SMX2KRMLVNCUS
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Specifications
| UPS topology | Line-Interactive |
|---|---|
| Output power capacity | 1.92 kVA |
| Output power | 1800 W |
| Waveform | Sine |
| Input operation voltage (min) | 70 V |
| Input operation voltage (max) | 154 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 100 V |
| Output operation voltage (max) | 127 V |
| Surge energy rating | 540 J |
| Audible alarm(s) | Yes |
| Audible alarm modes | Alarm when on battery, Battery replacement, Low battery alarm, Overload alarm |
| AC outlet types | NEMA 5–15R, NEMA 5–20R, NEMA L5-20R |
|---|---|
| Power plug | NEMA 5-20P |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RJ-45 |
| SmartSlot | Yes |
| Battery technology | Sealed Lead Acid (VRLA) |
|---|---|
| Battery capacity | 690 Ah |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 3 h |
| Hot-swap battery | Yes |
| Cold start | Yes |
| Form factor | Rackmount/Tower |
|---|---|
| Rack capacity | 2U |
| Cable length | 2.44 m |
| Product colour | Black |
| Display type | LCD |
| LED indicators | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Compliance certificates | RoHS |
|---|
| Rack mount kit | Yes |
|---|---|
| Cables included | RS-232, USB cable |
| Manual | Yes |
| Quick installation guide | Yes |
| Width | 432 mm |
|---|---|
| Depth | 667 mm |
| Height | 85 mm |
| Weight | 38.5 kg |
| Package width | 596 mm |
|---|---|
| Package depth | 869 mm |
| Package height | 243 mm |
| Package weight | 45.4 kg |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
