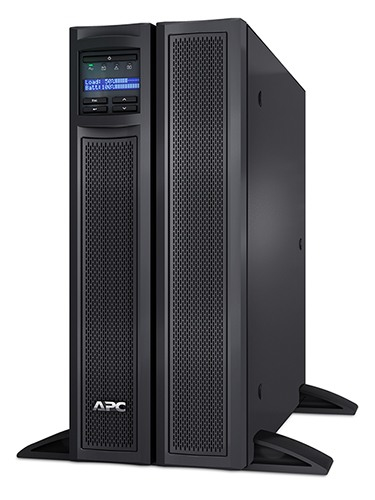

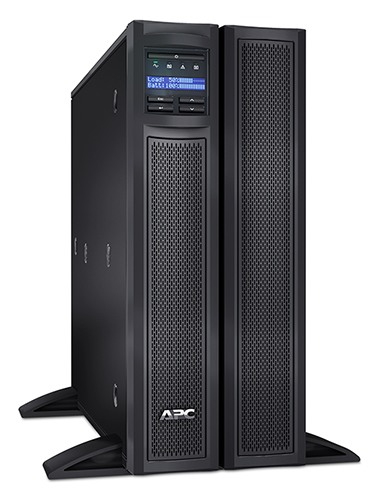

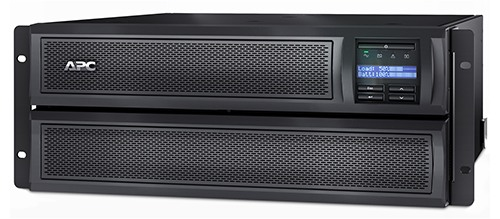

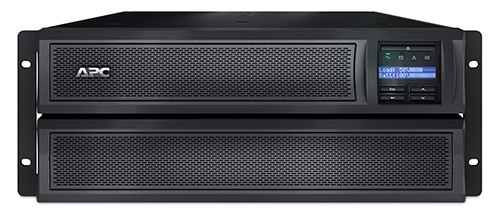

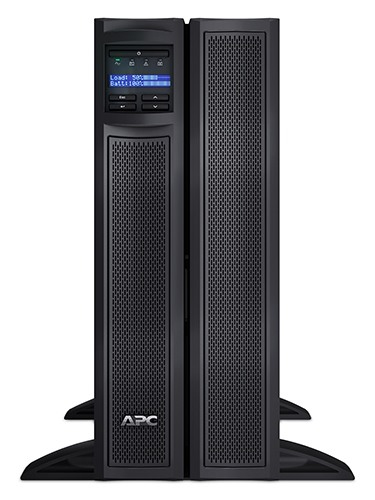

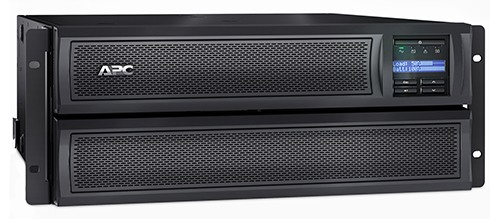

APC SMX2000LVUS uninterruptible power supply (UPS) Line-Interactive 1.92 kVA 1800 W 10 AC outlet(s)
Part number SMX2000LVUS
TAA APC SMART-UPS X, LINE INTERACTIVE, 2000VA, RACK/TOWER 4U, 100V-127V, 6X 5-
- Line-Interactive
- 1.92 kVA 1800 W
- Waveform: Sine
- 10 AC outlet(s)
- Sealed Lead Acid (VRLA)
- Rackmount/Tower Black
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- SMX2000LVUS
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
SMX2000LVUS
Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices. Includes : CD with software , Documentation CD , Installation guide , Rack Mounting brackets , Rack mounting hardware , Rack Mounting support rails , Removable support feet , Smart UPS signalling RS-232 cable , USB cable
Specifications
| UPS topology | Line-Interactive |
|---|---|
| Output power capacity | 1.92 kVA |
| Output power | 1800 W |
| Waveform | Sine |
| Input operation voltage (min) | 70 V |
| Input operation voltage (max) | 154 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (max) | 120 V |
| Output frequency | 50/60 Hz |
| Surge energy rating | 540 J |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 5% |
| Noise level | 55 dB |
| Audible alarm(s) | Yes |
| Web-based management | Yes |
| Audible alarm modes | Alarm when on battery, Low battery alarm, Overload alarm |
| Auto-restart | Yes |
| AC outlet types | NEMA 5-15R, NEMA 5–20R, NEMA L5-20R |
|---|---|
| Power plug | NEMA 5-20P |
| AC outlets quantity | 10 AC outlet(s) |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| SmartSlot | Yes |
| Battery technology | Sealed Lead Acid (VRLA) |
|---|---|
| Number of batteries supported | 1 |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 3 h |
| Hot-swap battery | Yes |
| Form factor | Rackmount/Tower |
|---|---|
| Rack capacity | 4U |
| Cable length | 2.44 m |
| Product colour | Black |
| Display type | LCD |
| LED indicators | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Compliance certificates | RoHS |
|---|---|
| Certification | BSMI, CSA, EN 50091-2, EN 55022 Class A, ENERGY STAR V1.0 (USA), FCC Part 15 Class A, NOM, TAA compliance, TUV, UL , REACH |
| Rack mount kit | Yes |
|---|---|
| Cables included | RS-232, USB cable |
| Quick installation guide | Yes |
| Sustainability certificates | ENERGY STAR |
|---|
| Width | 179 mm |
|---|---|
| Depth | 483 mm |
| Height | 432 mm |
| Weight | 38.6 kg |
| Resource CD | Yes |
|---|---|
| Software CD | Yes |
| Package width | 586 mm |
| Package depth | 633 mm |
| Package height | 330 mm |
| Package weight | 47.7 kg |
| Products per pallet | 8 pc(s) |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
