Products › Power & Rack Equipment
APC BY SCHNEIDER ELECTRIC

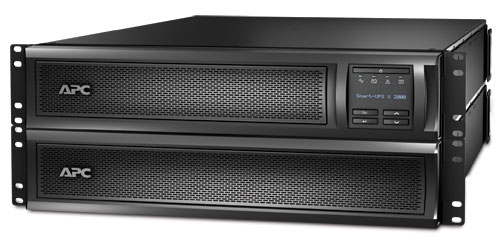

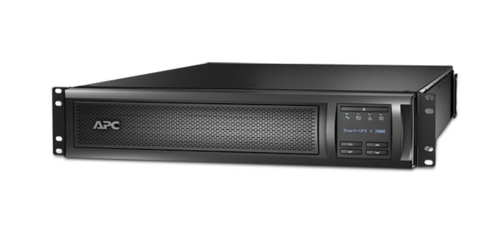

APC SMX2000LVNC uninterruptible power supply (UPS) 1.92 kVA 1800 W 7 AC outlet(s)
Part number SMX2000LVNC
SMART UPS X 2000VA RT 100/127V NEMA 5-20P LINE-INT LCD W/NTWK CARD
- 1.92 kVA 1800 W
- Waveform: Sine
- 7 AC outlet(s)
- Sealed Lead Acid (VRLA)
- Rackmount/Tower Black
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- SMX2000LVNC
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Specifications
| Output power capacity | 1.92 kVA |
|---|---|
| Output power | 1800 W |
| Waveform | Sine |
| Input operation voltage (min) | 70 V |
| Input operation voltage (max) | 154 V |
| Input frequency | 50/60 Hz |
| Surge energy rating | 540 J |
| Efficiency | 97.6% |
| Emergency Power Off (EPO) | Yes |
| Noise level | 55 dB |
| Audible alarm(s) | Yes |
| AC outlet types | NEMA 5–15R, NEMA 5–20R, NEMA L5-20R |
|---|---|
| Power plug | NEMA 5-20P |
| AC outlets quantity | 7 AC outlet(s) |
| USB 2.0 ports quantity | 1 |
| Battery technology | Sealed Lead Acid (VRLA) |
|---|---|
| Number of batteries supported | 1 |
| Battery recharge time | 3 h |

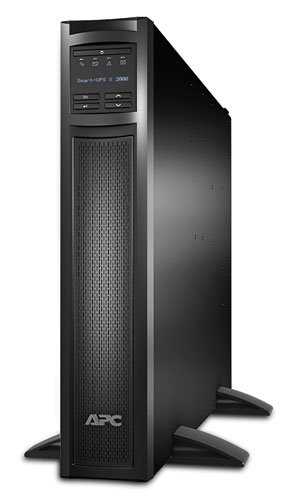

| Form factor | Rackmount/Tower |
|---|---|
| Rack capacity | 2U |
| Cable length | 2.44 m |
| Product colour | Black |
| Display type | LED |
| LED indicators | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Compliance certificates | RoHS |
|---|---|
| Certification | UL 1449 BSMI, CSA, EN 50091-2, EN 55022 Class A, FCC Part 15 Class A, NOM, TUV, UL 1778, VCCI Class A REACH |
| Width | 432 mm |
|---|---|
| Depth | 667 mm |
| Height | 85 mm |
| Weight | 38.5 kg |
| Package weight | 45.4 kg |
|---|
| Nominal output voltage | 120 V |
|---|---|
| Nominal input voltage | 120 V |

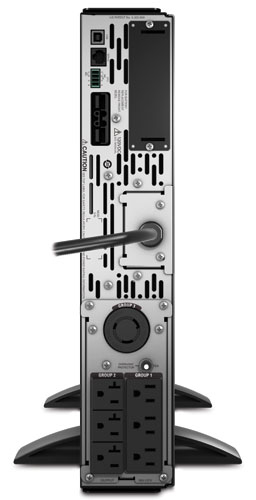

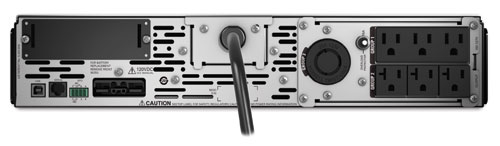

| Output connection type | 3 x NEMA 5-15R & 3 x NEMA 5-20R & 1 x NEMA L5-20R |
| Package dimensions (WxDxH) | 596 x 869 x 243 mm |
