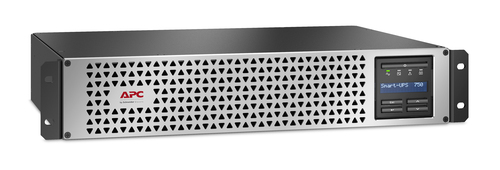

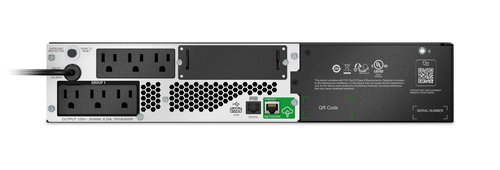

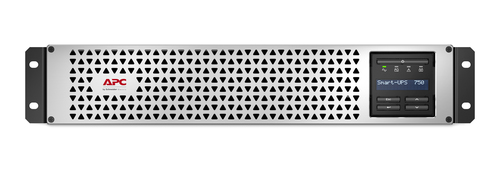

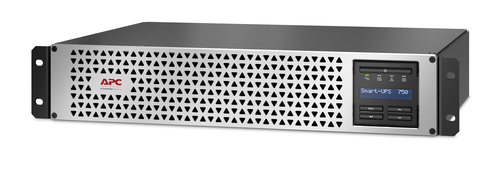

APC SMTL750RM2UC uninterruptible power supply (UPS) Line-Interactive 0.75 kVA 600 W 6 AC outlet(s)
Part number SMTL750RM2UC
SMART-UPS LI-ION SHORT DEPTH 750VA 120V WITH SMARTCONNECT
- Line-Interactive
- 0.75 kVA 600 W
- Waveform: Pure sine
- 6 AC outlet(s)
- Lithium-Ion (Li-Ion) 150 Ah
- Rackmount Black, Silver
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- SMTL750RM2UC
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
Features
Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Cold-start capable
Provides temporary battery power when the utility power is out.
Energy meter
Provides actual kilowatt hours of usage for energy conscious users.
Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
High online efficiency
Reduces utility costs, generates less heat.
Lithium-ion battery
Lithium-ion batteries provide twice the service life of a typical lead acid battery and are small, light and environmentally friendly.
Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Short-depth rack compatibility
Compact design fits comfortably in short-depth rack applications.
Single switched outlet group
Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
SmartConnect
Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services.
SmartSlot
Customize UPS capabilities with management cards.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Safety
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Adaptability
Specifications
| UPS topology | Line-Interactive |
|---|---|
| Output power capacity | 0.75 kVA |
| Output power | 600 W |
| Waveform | Pure sine |
| Input operation voltage (min) | 82 V |
| Input operation voltage (max) | 144 V |
| Input frequency | 50/60 Hz |
| Surge energy rating | 680 J |
| Response time | 6 ms |
| Efficiency | 96% |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 5% |
| Audible alarm(s) | Yes |
| Audible alarm modes | Alarm when on battery, Low battery alarm, Overload alarm |
| AC outlet types | NEMA 5-15R |
|---|---|
| Power plug | NEMA 5-15P |
| AC outlets quantity | 6 AC outlet(s) |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RJ-45 |
| SmartSlot | Yes |
| Battery technology | Lithium-Ion (Li-Ion) |
|---|---|
| Battery capacity | 150 Ah |
| Battery life (max) | 10 year(s) |
| Battery recharge time | 3 h |
| Hot-swap battery | Yes |
| Cold start | Yes |
| Form factor | Rackmount |
|---|---|
| Rack capacity | 2U |
| Cable length | 2.44 m |
| Product colour | Black, Silver |
| Display type | LCD |
| LED indicators | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Compliance certificates | RoHS |
|---|
| Rack mount kit | Yes |
|---|---|
| Cables included | RS-232, USB cable |
| Manual | Yes |
| Quick installation guide | Yes |
| Width | 438 mm |
|---|---|
| Depth | 318 mm |
| Height | 86 mm |
| Weight | 15.4 kg |
| Package width | 584 mm |
|---|---|
| Package depth | 472 mm |
| Package height | 229 mm |
| Package weight | 17.7 kg |
