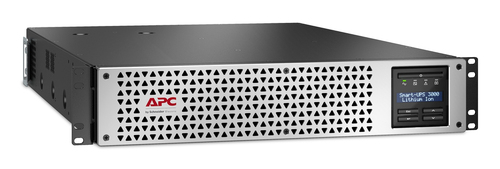

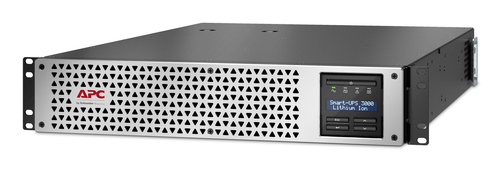

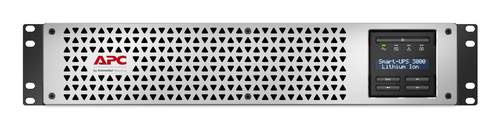

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 2880VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA L5-30P input, 6 NEMA 5-15R and 2 NEMA 5-20R outlets. It has a preinstalled Network Management Card for UPS network-based monitoring and management. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMTL UPS has a 5-year warranty on the UPS and Lithium-ion battery. The Smart-UPS is compliant with the Trade Agreements Act (TAA) requirements.
Specifications
Features
UPS topology
Line-Interactive
Output power capacity
3 kVA
Output power
2700 W
Waveform
Sine
Input operation voltage (min)
120 V
Input operation voltage (max)
120 V
Input frequency
50/60 Hz
Output operation voltage (min)
120 V
Output operation voltage (max)
120 V
Output frequency
50/60 Hz
Surge energy rating
459 J
Heat dissipation
348 BTU/h
Crest factor
3:1
Output voltage Total Harmonic Distortion (THD)
5%
Noise level
41 dB
Ports & interfaces
AC outlet types
NEMA L5-20R
AC outlets quantity
2 AC outlet(s)
USB port
Yes
Serial interface
Yes
SmartConnect port
Yes
Battery
Battery technology
Lithium-Ion (Li-Ion)
Battery life (max)
10 year(s)
Battery recharge time
3 h
Design
Form factor
Rackmount
Rack capacity
2U
Cable length
2.4 m
Product colour
Black, Silver
Display type
LCD
International Protection (IP) code
IP20
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 35 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3048 m
Non-operating altitude
0 - 7620 m
Certificates
Certification
NOM
Weight & dimensions
Width
432 mm
Depth
683 mm
Height
86 mm
Weight
34.2 kg
Packaging data
Package width
980 mm
Package depth
600 mm
Package height
254 mm
Package weight
42.7 kg
