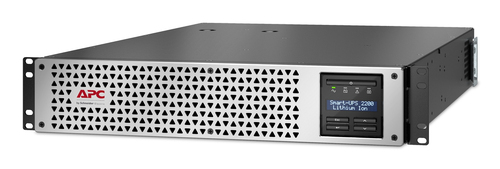

APC SMTL2K2RM2UCL uninterruptible power supply (UPS) Line-Interactive 1 kVA 1980 W 7 AC outlet(s)
Part number SMTL2K2RM2UCL
SMART-UPS LITHIUM-ION 2200VA 120V W/ SMARTCONNECT PORT L5-20R
2200VA/1920W line interactive pure sine wave 2U rackmount UPS
Ideal for small edge environment, back office, network infrastructure and IDF/MDF closets
Lithium-ion battery minimizes the need to replace battery during the lifetime of UPS
Cloud-based remote power monitoring via SmartConnect Ethernet Port
Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
Manufacturer
APC BY SCHNEIDER ELECTRIC
Part number
SMTL2K2RM2UCL
Condition
New
Category
Power & Rack Equipment › Power Equipment
1GPA category
Hardware
Overview
Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Specifications
Features
UPS topology
Line-Interactive
Output power capacity
1 kVA
Output power
1980 W
Waveform
Sine
Input operation voltage (min)
82 V
Input operation voltage (max)
144 V
Input frequency
50/60 Hz
Output operation voltage (min)
110 V
Output operation voltage (max)
125 V
Output frequency
50/60 Hz
Automatic Voltage Regulation (AVR)
Yes
Surge energy rating
530 J
Response time
6 ms
Noise level
55 dB
Audible alarm(s)
Yes
Audible alarm modes
Alarm when on battery, Low battery alarm
Ports & interfaces
AC outlet types
NEMA L5-20R, NEMA 5-20R
Power plug
NEMA 5-20R
AC outlets quantity
7 AC outlet(s)
USB port
Yes
USB port type
USB Type-A
Serial interface
Yes
Serial interface type
RJ-45
Ethernet LAN (RJ-45) ports
1
SmartSlot
Yes
Battery
Battery technology
Lithium-Ion (Li-Ion)
Battery life (max)
10 year(s)
Battery recharge time
2 h
Design
Form factor
Rackmount
Rack capacity
2U
Cable length
2.4 m
Product colour
Black
Display type
LCD
LED indicators
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Non-operating altitude
0 - 7620 m
Certificates
Compliance certificates
RoHS
Certification
CSA C22.2 NO. 107.3, FCC Part 15 Class A, NOM, UL 1778, UL 1973
Weight & dimensions
Width
432 mm
Depth
683 mm
Height
86 mm
Weight
31.9 kg
Packaging data
Package width
980 mm
Package depth
600 mm
Package height
254 mm
Package weight
40.7 kg
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
