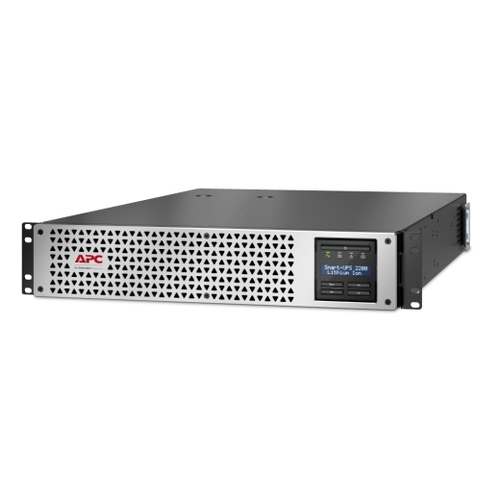

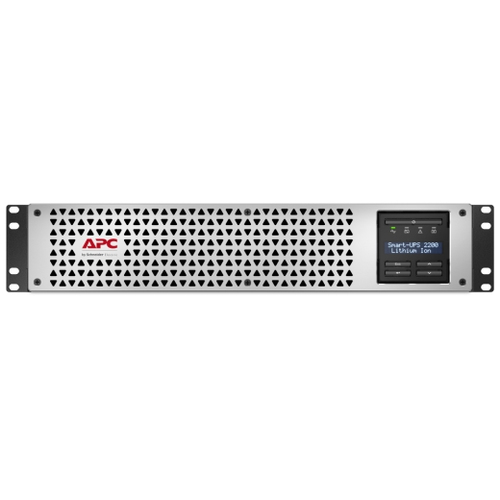

APC SMTL2200RM2UC uninterruptible power supply (UPS) Line-Interactive 2.2 kVA 1920 W 8 AC outlet(s)
Part number SMTL2200RM2UC
SMART-UPS LITHIUM-ION 2200VA 120V WITH SMARTCONNECT PORT
Line-Interactive
2.2 kVA 1920 W
Waveform: Sine
8 AC outlet(s)
Lithium-Ion (Li-Ion)
Rackmount Black, Silver
Manufacturer
APC BY SCHNEIDER ELECTRIC
Part number
SMTL2200RM2UC
Condition
New
Category
Power & Rack Equipment › Power Equipment
1GPA category
Hardware
Overview
Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Specifications
Features
UPS topology
Line-Interactive
Output power capacity
2.2 kVA
Output power
1920 W
Waveform
Sine
Input operation voltage (min)
82 V
Input operation voltage (max)
144 V
Input frequency
50/60 Hz
Output operation voltage (min)
120 V
Output operation voltage (max)
120 V
Output frequency
50/60 Hz
Output voltage regulation
5%
Surge energy rating
530 J
Efficiency
96%
Noise level
55 dB

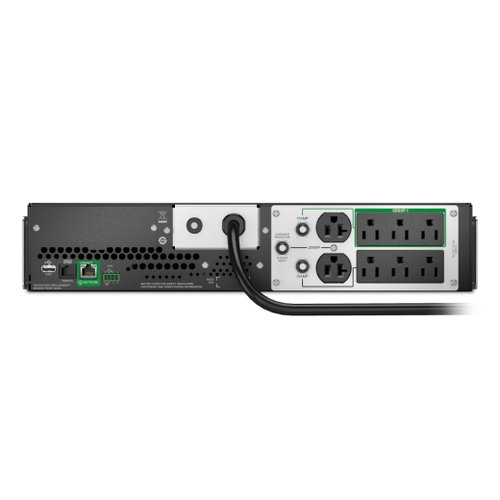

Ports & interfaces
AC outlet types
NEMA 5–15R, NEMA 5–20R
AC outlets quantity
8 AC outlet(s)
USB port
Yes
Serial interface
Yes
Serial interface type
RJ-45
Ethernet LAN (RJ-45) ports
1
SmartSlot
Yes
Battery
Battery technology
Lithium-Ion (Li-Ion)
Typical backup time at full load
6 min
Typical backup time at half load
12 min
Design
Form factor
Rackmount
Rack capacity
2U
Product colour
Black, Silver
Display type
LCD
LED indicators
Yes
International Protection (IP) code
IP20
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 7620 m
Certificates
Certification
CSA C22.2 No 107.1, CULus, FCC part 15 class A, UL 1778, UL 1973
Weight & dimensions
Width
432.1 mm
Depth
683 mm
Height
86.1 mm
Weight
31.9 kg
Packaging data
Package width
600 mm
Package depth
980.4 mm
Package height
254 mm
Package weight
39.2 kg
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
