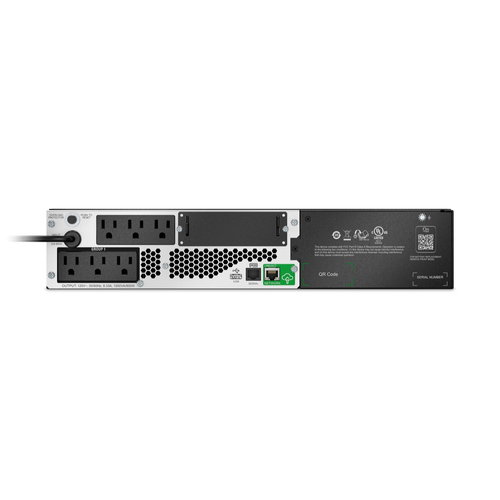

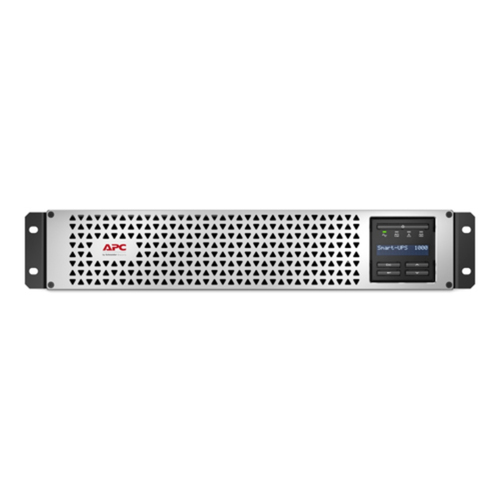

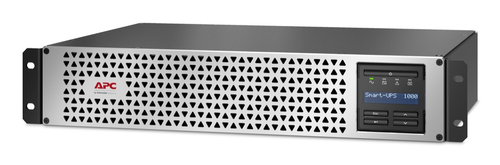

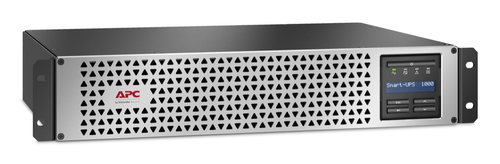

APC SMTL1000RM2UC uninterruptible power supply (UPS) Line-Interactive 1 kVA 800 W 6 AC outlet(s)

Part number SMTL1000RM2UC

SMART-UPS LI-ION SHORT DEPTH 1000VA 120V WITH SMARTCONNECT

Line-Interactive
1 kVA 800 W
Waveform: Sine
6 AC outlet(s)
Lithium-Ion (Li-Ion)
Rackmount Black

Manufacturer: APC BY SCHNEIDER ELECTRIC
Part number: SMTL1000RM2UC
Condition: New
Category: Power & Rack Equipment › Power Equipment
1GPA category: Hardware

Overview

Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.

Specifications

Features
UPS topology	Line-Interactive
Output power capacity	1 kVA
Output power	800 W
Waveform	Sine
Input operation voltage (min)	75 V
Input operation voltage (max)	154 V
Input frequency	50/60 Hz
Output operation voltage (min)	120 V
Output operation voltage (max)	120 V
Output frequency	50/60 Hz
Output voltage regulation	5%
Surge energy rating	680 J
Response time	6 ms
Noise level	41 dB
Audible alarm(s)	Yes
Audible alarm modes	Alarm when on battery, Low battery alarm

Ports & interfaces
AC outlet types	NEMA 5–15R
Power plug	NEMA 5-15P
AC outlets quantity	6 AC outlet(s)
USB port	Yes
USB port type	USB Type-A
Serial interface	Yes
Serial interface type	RJ-45
Ethernet LAN (RJ-45) ports	1
SmartSlot	Yes

Battery
Battery technology	Lithium-Ion (Li-Ion)
Battery life (max)	10 year(s)
Battery recharge time	3 h

Design
Form factor	Rackmount
Rack capacity	2U
Cable length	2.44 m
Product colour	Black
Display type	LCD
LED indicators	Yes

Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 35 °C
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 7500 m

Certificates
Compliance certificates	RoHS
Certification	CSA C22.2 NO. 107.3, FCC Part 15 Class A, NOM, UL 1778, UL 1973

Weight & dimensions
Width	438 mm
Depth	318 mm
Height	86 mm
Weight	16.3 kg

Packaging data
Package width	584 mm
Package depth	472 mm
Package height	229 mm
Package weight	18.6 kg

Logistics data
Products per pallet	16 pc(s)

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
