Overview

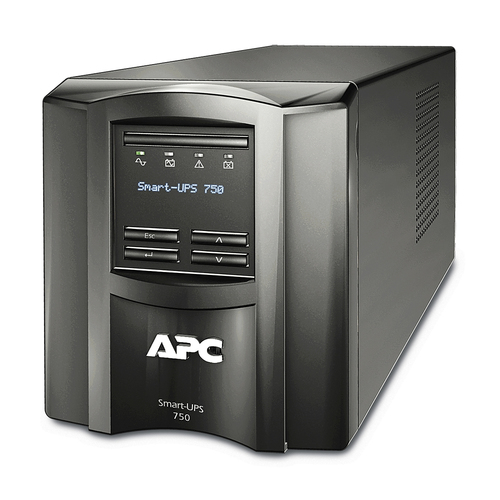

The APC Smart-UPS 750VA 120V Shipboard (SMT750X93) is a robust and reliable uninterruptible power supply (UPS) designed specifically for marine and shipboard applications. This UPS ensures continuous power supply during outages, protecting critical equipment and preserving data integrity.
Specifications
Features
| UPS topology | Line-Interactive |
|---|
| Output power capacity | 0.75 kVA |
|---|
| Output power | 500 W |
|---|
| Waveform | Sine |
|---|
| Input operation voltage (min) | 82 V |
|---|
| Input operation voltage (max) | 144 V |
|---|
| Input frequency | 50/60 Hz |
|---|
| Output operation voltage (max) | 120 V |
|---|
| Output frequency | 50/60 Hz |
|---|
| Surge energy rating | 593 J |
|---|
| Response time | 6 ms |
|---|
| Number of input phases | 1 |
|---|
| Number of output phases | 1 |
|---|
| Single-phase input voltage supported | 120 V |
|---|
| Noise level | 41 dB |
|---|
| Audible alarm(s) | Yes |
|---|
Ports & interfaces

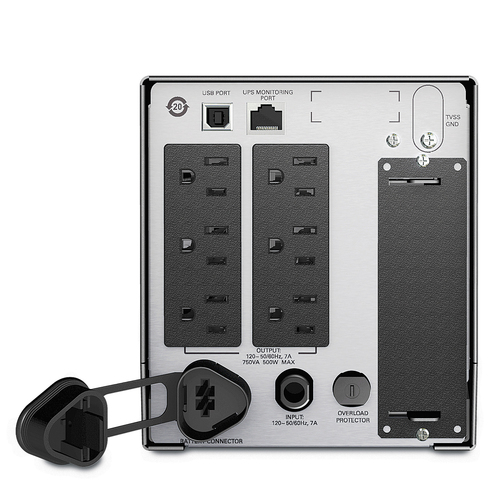

| AC outlet types | NEMA 5-15R |
|---|
| Power plug | NEMA 5-15P |
|---|
| AC outlets quantity | 6 AC outlet(s) |
|---|
| USB port | Yes |
|---|
| USB port type | USB Type-B |
|---|
Battery
| Battery replacement accessibility | End-user |
|---|
| Battery technology | Sealed Lead Acid (VRLA) |
|---|
| Battery capacity | 172 Ah |
|---|
| Typical backup time at full load | 5 min |
|---|
| Typical backup time at half load | 15 min |
|---|
| Battery life (max) | 5 year(s) |
|---|
| Battery recharge time | 3 h |
|---|
Design
| Form factor | Tower |
|---|
| Product colour | Black |
|---|
| Control type | Buttons |
|---|
| Display type | LED |
|---|
| LED indicators | Yes |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Storage temperature (T-T) | -20 - 55 °C |
|---|
| Operating relative humidity (H-H) | 0 - 95% |
|---|
| Storage relative humidity (H-H) | 0 - 95% |
|---|
| Operating altitude | 0 - 3000 m |
|---|
| Non-operating altitude | 0 - 15000 m |
|---|
Technical details
| Sustainable packaging | No |
|---|
| Packaging recycled materials | Recycled cardboard |
|---|
| SCIP number | b2b22a56-41f2-497e-9ea6-cf093b3b8bd3 |
|---|
| Preferred mounting position | no preference |
|---|
| Take-back system | No |
|---|
| Packaging without single use plastic | No |
|---|
Certificates
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
|---|
| Compliance certificates | RoHS, REACH, WEEE |
|---|
| Certification | CSA C22.2 No 107.1 |
|---|
Packaging content
| Manual | Yes |
|---|
Sustainability
| Doesn't contain | Mercury |
|---|
Weight & dimensions
| Width | 138 mm |
|---|
| Depth | 369 mm |
|---|
| Height | 161 mm |
|---|
| Weight | 12.5 kg |
|---|
Packaging data
| Package width | 499 mm |
|---|
| Package depth | 278 mm |
|---|
| Package height | 301 mm |
|---|
| Package weight | 14 kg |
|---|
Logistics data
| Customs product code (TARIC) | 8504409590 |
|---|
| Total carbon footprint (kg of CO2e) | 548.4165222831 |
|---|
| Warranty period | 3 year(s) |
|---|
| Country of origin | United States |
|---|
Other features
| Input connection type | NEMA 5-15P |
|---|
| Output connection type | 6 NEMA5-15R |
|---|
| Output voltage | 120 V |
|---|
| Mounting | front |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
