APC BY SCHNEIDER ELECTRIC

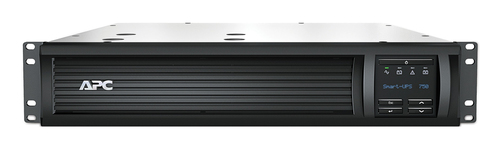

APC SMT750RM2UCNC uninterruptible power supply (UPS) Line-Interactive 0.75 kVA 0.4 W 6 AC outlet(s)

Part number SMT750RM2UCNC

SMART-UPS 750VA LCD RM 2U 120V W/SMARTCONNECT PORT NETWORK CARD

  • Line-Interactive
  • 0.75 kVA 0.4 W
  • Waveform: Sine
  • 6 AC outlet(s)
  • Lead-Acid
  • Rackmount Black
Manufacturer
APC BY SCHNEIDER ELECTRIC
Part number
SMT750RM2UCNC
Condition
New
Category
Power & Rack Equipment › Power Equipment
1GPA category
Hardware

Overview

Description

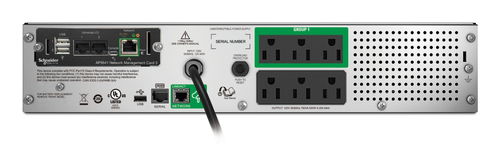

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 750VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 6 NEMA 5-15R outlets. It has a preinstalled Network Management Card for UPS network-based monitoring and management. It comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.

Specifications

Features
UPS topologyLine-Interactive
Output power capacity0.75 kVA
Output power0.4 W
WaveformSine
Input operation voltage (min)110 V
Input operation voltage (max)125 V
Input frequency50/60 Hz
Output operation voltage (min)110 V
Output operation voltage (max)125 V
Output frequency50/60 Hz
Automatic Voltage Regulation (AVR)Yes
Surge energy rating680 J
Response time10 ms
Heat dissipation70 BTU/h
Output voltage Total Harmonic Distortion (THD)5%
Noise level41 dB
Audible alarm(s)Yes
Audible alarm modesAlarm when on battery, Low battery alarm
Ports & interfaces
AC outlet typesNEMA 5-15R
Power plugNEMA 5-15P
AC outlets quantity6 AC outlet(s)
USB portYes
USB 2.0 ports quantity3
USB port typeUSB Type-A
Serial interfaceYes
Serial ports quantity1
Ethernet LAN (RJ-45) ports1
SmartSlotYes
Battery
Battery technologyLead-Acid
Battery life (max)6 year(s)
Battery recharge time3 h
Design
Form factorRackmount
Rack capacity2U
Cable length2.4 m
Product colourBlack
Display typeLCD
LED indicatorsYes
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 45 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 15240 m
Certificates
Compliance certificatescULus
Packaging content
Rack mount kitYes
Cables includedUSB cable
Quick installation guideYes
Sustainability
Sustainability certificatesENERGY STAR
Weight & dimensions
Width432 mm
Depth409 mm
Height86 mm
Weight17.7 kg
Packaging data
Package width570 mm
Package depth535 mm
Package height235 mm
Package weight22.8 kg

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
