Overview
Description

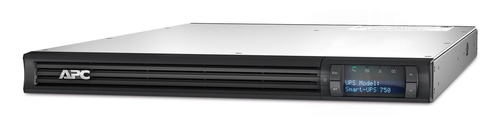

This APC Smart-UPS is designed for small and medium businesses to maintain business uptime and continuity. The 750VA line interactive 1U rackmount provides pure sine wave power with a higher power factor to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 4x NEMA 5-15R outlets. It comes with PowerChute Software, which provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It provides surge protection against lightning strikes, power sags, brownouts, and surges. The SMT UPS has a 3-year warranty, and the built-in lead acid battery has a 2-year warranty. This UPS includes intelligent battery management with replacement suggestions, temperature-adjusted charging, self-tests, and battery disconnect notifications.
Specifications
Features
| UPS topology | Line-Interactive |
|---|
| Output power capacity | 0.75 kVA |
|---|
| Output power | 600 W |
|---|
| Waveform | Sine |
|---|
| Input operation voltage (min) | 120 V |
|---|
| Input operation voltage (max) | 120 V |
|---|
| Input frequency | 50/60 Hz |
|---|
| Output operation voltage (min) | 120 V |
|---|
| Output operation voltage (max) | 120 V |
|---|
| Output frequency | 50/60 Hz |
|---|
| Automatic Voltage Regulation (AVR) | Yes |
|---|
| Maximum current | 6.25 A |
|---|
| Surge energy rating | 540 J |
|---|
| Response time | 8 ms |
|---|
| Heat dissipation | 88 BTU/h |
|---|
| Output voltage Total Harmonic Distortion (THD) | 5% |
|---|
| Noise level | 46 dB |
|---|
| Audible alarm(s) | Yes |
|---|
| Audible alarm modes | Alarm when on battery, Low battery alarm |
|---|
Ports & interfaces

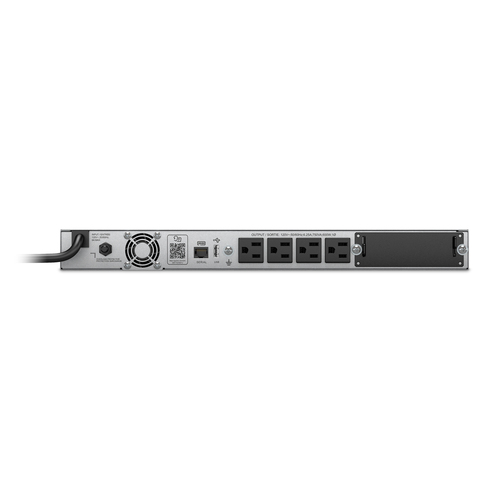

| AC outlet types | NEMA 5-15R |
|---|
| Power plug | NEMA 5-15P |
|---|
| AC outlets quantity | 4 AC outlet(s) |
|---|
| USB 2.0 ports quantity | 1 |
|---|
| USB port type | USB Type-A |
|---|
| Serial interface | Yes |
|---|
| Serial ports quantity | 1 |
|---|
| SmartSlot | Yes |
|---|
Battery
| Battery technology | Lead-Acid |
|---|
| Battery life (max) | 5 year(s) |
|---|
| Battery recharge time | 5 h |
|---|
Design
| Form factor | Rackmount |
|---|
| Rack capacity | 1U |
|---|
| Cable length | 2.4 m |
|---|
| Product colour | Black |
|---|
| Display type | LCD |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Storage temperature (T-T) | -15 - 45 °C |
|---|
| Operating relative humidity (H-H) | 0 - 95% |
|---|
| Storage relative humidity (H-H) | 0 - 95% |
|---|
| Operating altitude | 0 - 3000 m |
|---|
| Non-operating altitude | 0 - 15240 m |
|---|
Certificates
| Certification | CSA |
|---|
Packaging content
| Manual | Yes |
|---|
Weight & dimensions
| Width | 432 mm |
|---|
| Depth | 502 mm |
|---|
| Height | 44 mm |
|---|
| Weight | 15.8 kg |
|---|
Packaging data
| Package width | 440 mm |
|---|
| Package depth | 502 mm |
|---|
| Package height | 44 mm |
|---|
| Package weight | 15.8 kg |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
