APC BY SCHNEIDER ELECTRIC

APC Smart-UPS, Line Interactive, 750VA, Tower, 230V, 6x IEC C13 outlets, SmartSlot, AVR, LCD

Part number SMT750I

SMT750I - UPS - TOWER - LINE-INTERACTIVE - 230V - 500WATT - 750VA - SMARTSLOT, U

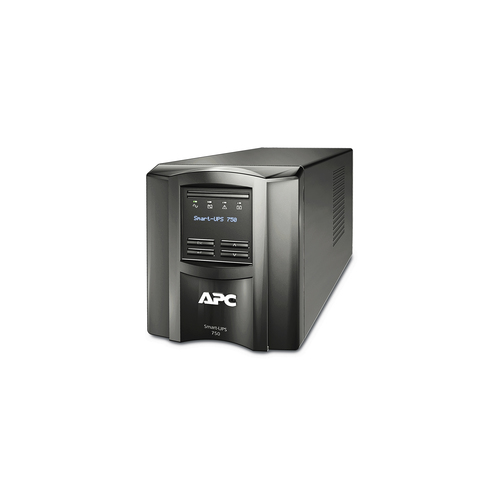

750VA/500W line interactive pure sine wave tower UPS
Ideal for servers, storage, network closets, business VoIP & desktops, retail POS
Automatic Voltage Regulation helps correct utility voltage
Graceful shutdown using serial or USB cables via PowerChute Business Edition

Manufacturer: APC BY SCHNEIDER ELECTRIC
Part number: SMT750I
Condition: New
Category: Power & Rack Equipment › Power Equipment
1GPA category: Hardware

Overview

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 750VA line interactive tower UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with IEC 320 C14 input, 6x IEC 320 C13 outlets, and 2x IEC jumper cables. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.

Specifications

Features
UPS topology	Line-Interactive
Output power capacity	0.75 kVA
Output power	500 W
Waveform	Sine
Input operation voltage (min)	151 V
Input operation voltage (max)	302 V
Input frequency	50/60 Hz
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Output frequency regulation	47 - 53, 57 - 63 Hz
Surge energy rating	540 J
Output voltage Total Harmonic Distortion (THD)	5%
Noise level	40 dB
Audible alarm(s)	Yes
Audible alarm modes	Low battery alarm

Ports & interfaces

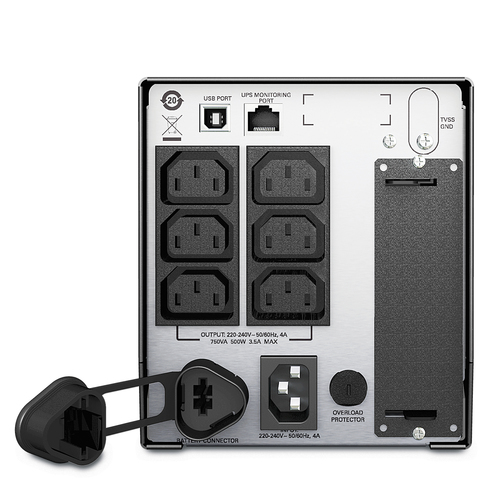

AC outlet types	C13 coupler, IEC Jumpers
Power plug	C14 coupler
AC outlets quantity	8 AC outlet(s)
Number of output IEC jumpers	2
USB port	Yes
SmartSlot	Yes

Battery
Battery technology	Sealed Lead Acid (VRLA)
Number of batteries supported	1
Battery recharge time	3 h
Replacement battery cartridge	RBC48

Design
Form factor	Mini Tower
Cable length	1.83 m
Product colour	Black
Display type	LCD

Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m

Certificates
Compliance certificates	RoHS
Certification	CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, UL 1778, VDE, REACH

Packaging content
Cables included	RS-232, USB cable

Sustainability
Sustainability certificates	Green Premium

Weight & dimensions
Width	138 mm
Depth	359 mm
Height	158 mm
Weight	13.2 kg

Packaging data
Resource CD	Yes
Software CD	Yes
Package width	278 mm
Package depth	499 mm
Package height	301 mm
Package weight	14.2 kg

Logistics data
Harmonized System (HS) code	85078000
Total carbon footprint (kg of CO2e)	659.22

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
