Products › Power & Rack Equipment
APC BY SCHNEIDER ELECTRIC

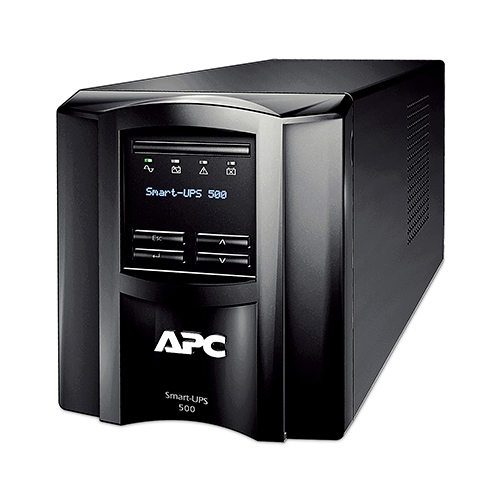

APC SMT500J uninterruptible power supply (UPS) Line-Interactive 0.5 kVA 360 W 6 AC outlet(s)
Part number SMT500J
SMART-UPS 500VA LCD 100V
- Line-Interactive
- 0.5 kVA 360 W
- Waveform: Sine
- 6 AC outlet(s)
- Sealed Lead Acid (VRLA) 12 V 7.2 Ah
- Mini Tower Black
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- SMT500J
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Specifications
Features
| UPS topology | Line-Interactive |
|---|
| Output power capacity | 0.5 kVA |
|---|
| Output power | 360 W |
|---|
| Waveform | Sine |
|---|
| Input frequency | 50/60 Hz |
|---|
| Automatic Voltage Regulation (AVR) | Yes |
|---|
| Maximum current | 5 A |
|---|
| Number of input phases | 1 |
|---|
| Number of output phases | 1 |
|---|
| Efficiency | 97% |
|---|
| EMI/RFI noise filtering | Yes |
|---|
| Noise level | 45 dB |
|---|
| Surge protection | Yes |
|---|
Ports & interfaces
| AC outlet types | NEMA 5–15P |
|---|
| AC outlets quantity | 6 AC outlet(s) |
|---|
| USB port | Yes |
|---|
| RS-232 ports | 1 |
|---|
Battery
| Battery technology | Sealed Lead Acid (VRLA) |
|---|
| Battery capacity | 7.2 Ah |
|---|
| Battery voltage | 12 V |
|---|
| Battery recharge time | 4 h |
|---|
Design
| Form factor | Mini Tower |
|---|
| Product colour | Black |
|---|
| Display type | LCD |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Storage temperature (T-T) | -15 - 45 °C |
|---|
| Operating relative humidity (H-H) | 0 - 95% |
|---|
| Storage relative humidity (H-H) | 0 - 95% |
|---|
| Operating altitude | 0 - 3000 m |
|---|
| Non-operating altitude | 0 - 15000 m |
|---|
Certificates
| Compliance certificates | RoHS |
|---|
Weight & dimensions
| Width | 140 mm |
|---|
| Depth | 359 mm |
|---|
| Height | 167 mm |
|---|
| Weight | 13 kg |
|---|
Packaging data
| Package weight | 15 kg |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
