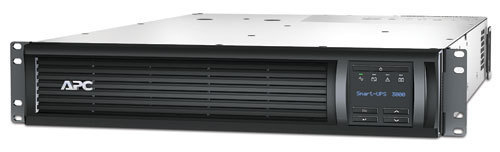

APC Smart-UPS 3000VA RM 2U LCD 208V uninterruptible power supply (UPS) 3 kVA 2700 W 2 AC outlet(s)
Part number SMT3000RMT2U
SMART UPS 3000VA RM 2U LCD 208V
- 3 kVA 2700 W
- 2 AC outlet(s)
- Rackmount Black
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- SMT3000RMT2U
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
Energy meter
Provides actual kilowatt hours of usage for energy conscious users.
Outlet group control
Turn on/off, reboot or shut down select outlet groups to save dispatching technicians to remote locations (for UPSs with switched outlet groups).
Sequenced shutdown and restart
Configure select outlet groups to shut down and turn on in a pre-determined order (for UPSs with switched outlet groups).
Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Single switched outlet group
Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
Wide input voltage range
Designed for harsh electrical environments to save battery life.
StruxureWare
Central compatible Enables centralized management via StruxureWare Central.
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
High online efficiency
Reduces utlility costs, generates less heat.
LED Indicators
Provide easy-to-read status of the unit and utility power conditions.
Cold-start capable
Provides temporary battery power when the utility power is out.
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Specifications
| Output power capacity | 3 kVA |
|---|---|
| Output power | 2700 W |
| Input operation voltage (min) | 141 V |
| Input operation voltage (max) | 255 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (max) | 208 V |
| Surge energy rating | 320 J |
| Noise level | 55 dB |
| AC outlet types | NEMA L6-20R |
|---|---|
| AC outlets quantity | 2 AC outlet(s) |
| USB 2.0 ports quantity | 1 |
| Battery recharge time | 3 h |
|---|
| Form factor | Rackmount |
|---|---|
| Rack capacity | 2U |
| Product colour | Black |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Certification | FCC Part 15 Class A, UL 1778 |
|---|
| Width | 480 mm |
|---|---|
| Depth | 690 mm |
| Height | 86 mm |
| Weight | 44.3 kg |
| Package weight | 51.7 kg |
|---|
| Package dimensions (WxDxH) | 600 x 980 x 254 mm |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
