Products › Power & Rack Equipment

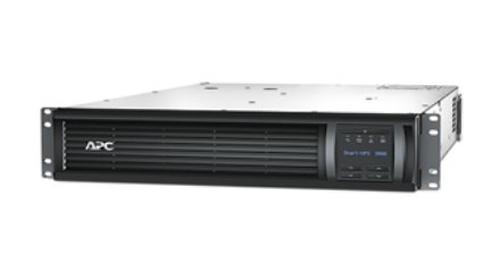

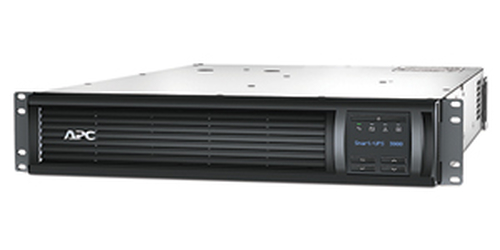

APC SMT3000RMJ2U uninterruptible power supply (UPS) 3 kVA 2700 W 8 AC outlet(s)
Part number SMT3000RMJ2U
APC SMART-UPS 3000VA RM 2U LCD 100V
- 3 kVA 2700 W
- 8 AC outlet(s)
- Rackmount Black
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- SMT3000RMJ2U
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
Energy meter
Provides actual kilowatt hours of usage for energy conscious users.
Outlet group control
Turn on/off, reboot or shut down select outlet groups to save dispatching technicians to remote locations (for UPSs with switched outlet groups).
Sequenced shutdown and restart
Configure select outlet groups to shut down and turn on in a pre-determined order (for UPSs with switched outlet groups).
Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Single switched outlet group
Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
Sine wave output
Eliminates humming and heat generated when powering tubelights and fans.
StruxureWare Central compatible
Enables centralized management via StruxureWare Central.
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
LED Indicators
Provide easy-to-read status of the unit and utility power conditions.
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Disconnected battery notification
Warns when a battery is not available to provide backup power.
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Specifications
| Output power capacity | 3 kVA |
|---|---|
| Output power | 2700 W |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 100 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 100 V |
| Output operation voltage (max) | 100 V |
| Maximum current | 24 A |
| Surge energy rating | 459 J |
| Efficiency | 97.6% |
| Emergency Power Off (EPO) | Yes |
| Noise level | 55 dB |
| Audible alarm(s) | Yes |
| AC outlet types | NEMA 5–15R, NEMA 5–20R |
|---|---|
| Power plug | NEMA L5-30P |
| AC outlets quantity | 8 AC outlet(s) |
| USB 2.0 ports quantity | 1 |
| Typical backup time at full load | 2 min |
|---|---|
| Typical backup time at half load | 8 min |
| Battery recharge time | 4 h |
| Form factor | Rackmount |
|---|---|
| Rack capacity | 2U |
| Cable length | 2.44 m |
| Product colour | Black |
| Display type | LCD |
| LED indicators | Battery replacement |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Compliance certificates | RoHS |
|---|---|
| Certification | UL, VCCI |
| Width | 432 mm |
|---|---|
| Depth | 661 mm |
| Height | 86 mm |
| Weight | 44 kg |
| Package weight | 52 kg |
|---|
| Package dimensions (WxDxH) | 600 x 980 x 254 mm |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
