APC Smart-UPS uninterruptible power supply (UPS) Line-Interactive 9 AC outlet(s)
Part number SMT3000RMI2U

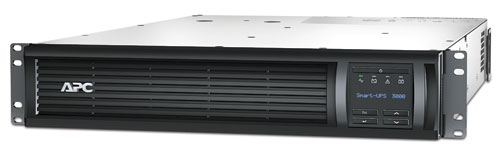

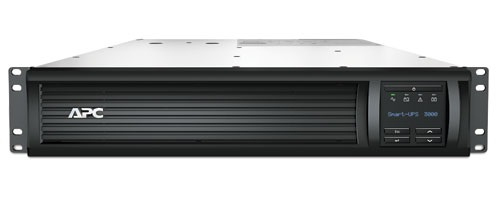

APC SMART-UPS 3000VA LCD RM 2U 230V
- Line-Interactive
- Waveform: Sine
- 9 AC outlet(s)
- Sealed Lead Acid (VRLA)
- Rackmount Black
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- SMT3000RMI2U
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
Energy meter
Provides actual kilowatt hours of usage for energy conscious users.
Outlet group control
Turn on/off, reboot or shut down select outlet groups to save dispatching technicians to remote locations (for UPSs with switched outlet groups).
Sequenced shutdown and restart
Configure select outlet groups to shut down and turn on in a pre-determined order (for UPSs with switched outlet groups).
Audible alarms
Provide notification of changing flywheel conditions
InfraStruXure Central compatible
Enables centralized management via APC InfraStruXure® Central.
Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Single switched outlet group
Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
Wide input voltage range
Designed for harsh electrical environments to save battery life.
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
High online efficiency
Reduces utlility costs, generates less heat.
LED Indicators
Provide easy-to-read status of your utility power conditions, UPS and battery.
Cold-start capable
Provides temporary battery power when the utility power is out.
Specifications
| UPS topology | Line-Interactive |
|---|---|
| Waveform | Sine |
| Input operation voltage (min) | 151 V |
| Input operation voltage (max) | 302 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Automatic Voltage Regulation (AVR) | Yes |
| Surge energy rating | 320 J |
| Hold time (min) | 4 ms |
| Hold time (max) | 8 ms |
| Efficiency | 99% |
| Noise level | 55 dB |
| Audible alarm(s) | Yes |
| Auto-restart | Yes |

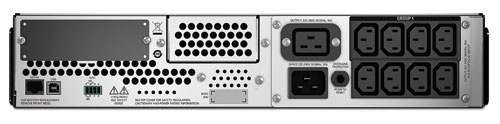

| AC outlet types | C13 coupler, C19 coupler |
|---|---|
| Power plug | C20 coupler |
| AC outlets quantity | 9 AC outlet(s) |
| Number of output IEC jumpers | 3 |
| USB port | Yes |
| Battery technology | Sealed Lead Acid (VRLA) |
|---|---|
| Battery capacity | 547 VAh |
| Typical backup time at full load | 3.2 min |
| Typical backup time at half load | 11.5 min |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 3 h |
| Hot-swap battery | Yes |
| Automatic battery test | Yes |
| Cold start | Yes |
| Form factor | Rackmount |
|---|---|
| Rack capacity | 2U |
| Cable length | 2 m |
| Product colour | Black |
| LED indicators | Status |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Compliance certificates | RoHS |
|---|---|
| Certification | CE, EAC, EN 60950, EN/IEC 62040-1, EN/IEC 62040-2, GS Mark, IRAM, RCM, VDE, WEEE, REACH, PEP, EOLI |
| Rack mount kit | Yes |
|---|---|
| Cables included | RS-232, USB cable |
| Quick installation guide | Yes |
| Sustainability certificates | ENERGY STAR |
|---|
| Width | 480 mm |
|---|---|
| Depth | 683 mm |
| Height | 86 mm |
| Weight | 44.3 kg |
| Software CD | Yes |
|---|---|
| Package width | 600 mm |
| Package depth | 980 mm |
| Package height | 254 mm |
| Package weight | 51.7 kg |
| Products per pallet | 8 pc(s) |
|---|---|
| Total carbon footprint (kg of CO2e) | 2980.14 |
| Nominal output voltage | 230 V |
|---|---|
| Nominal input voltage | 230 V |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
