APC BY SCHNEIDER ELECTRIC

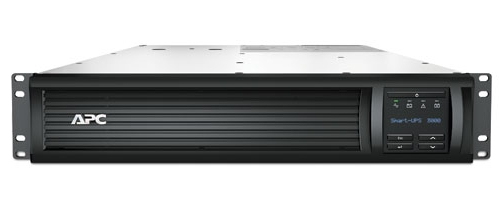

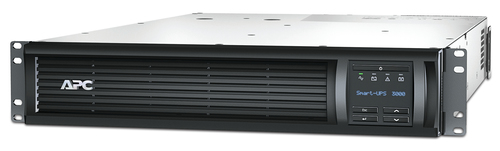

APC SMT3000RM2UC uninterruptible power supply (UPS) Line-Interactive 2.88 kVA 2700 W 8 AC outlet(s)

Part number SMT3000RM2UC

SMART UPS 3000VA LCD RM 2U 120V WITH SMARTCONNECT

Line-Interactive
2.88 kVA 2700 W
Waveform: Sine
8 AC outlet(s)
Sealed Lead Acid (VRLA)
Rackmount Black

Manufacturer: APC BY SCHNEIDER ELECTRIC
Part number: SMT3000RM2UC
Condition: New
Category: Power & Rack Equipment › Power Equipment
1GPA category: Hardware

Overview

Reliable Backup Power and Protection for Your Valuable IT Equipment

Protect your servers, switches, routers and networking devices while providing battery backup power with Smart-UPS SMT3000RM2UC with APC SmartConnect, the first cloud-enabled UPS for distributed IT. The service-free cloud monitoring feature is accessible from any internet-connected device, and maximizes the life and performance of your UPS by providing proactive advice and life-cycle recommendations so you can remotely monitor your power infrastructure from anywhere.

An Overview of Smart-UPS and the SmartConnect App

APC SmartConnect makes Smart-UPS more adaptable and easier to deploy than ever before, enabling you to view the status of your UPS through a secure web portal. Through this intuitive remote management interface, you’ll receive automatic notifications, firmware updates, and advanced support; providing you with added value – and more importantly – added peace of mind.

Secure, remote monitoring

Connected Smart-UPS support remote monitoring through a secure web portal, so you can always be up to date on the status of your power infrastructure

Proactive lifecycle alerts

Maximize the life span of the UPS and protect your investment with proactive alerts for firmware upgrade, device maintenance, and warranty protection.

Cloud enabled as standard

Smart-UPS models with SmartConnect are cloud-enabled and have a built-in Ethernet port, making it easy and cost effective to monitor your UPS online

Simple to Use Interface

Our simple web interface is designed to support both system administrators and non-tech users alike, with clear notifications in plain language

Specifications

Features
UPS topology	Line-Interactive
Output power capacity	2.88 kVA
Output power	2700 W
Waveform	Sine
Input operation voltage (min)	75 V
Input operation voltage (max)	154 V
Input frequency	50/60 Hz
Output operation voltage (min)	110 V
Output operation voltage (max)	127 V
Output frequency	50/60 Hz
Automatic Voltage Regulation (AVR)	Yes
Surge energy rating	459 J
Output voltage Total Harmonic Distortion (THD)	5%
Noise level	55 dB
Surge protection	Yes
Audible alarm(s)	Yes
Web-based management	Yes
Auto-restart	Yes
Temperature voltage compensation	Yes

Ports & interfaces

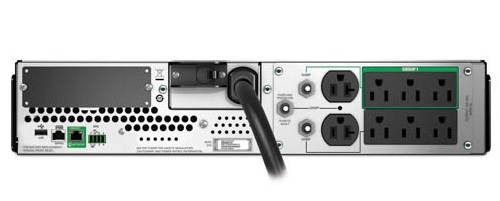

AC outlet types	NEMA 5-15R, NEMA 5–20R
Power plug	NEMA L5-30P
AC outlets quantity	8 AC outlet(s)
USB port	Yes
USB 2.0 ports quantity	1
SmartSlot	Yes

Battery
Battery technology	Sealed Lead Acid (VRLA)
Number of batteries supported	1
Battery life (max)	5 year(s)
Battery recharge time	3 h
Hot-swap battery	Yes
Automatic battery test	Yes

Design
Form factor	Rackmount
Rack capacity	2U
Cable length	2.44 m
Product colour	Black
Display type	LCD
LED indicators	Status

Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m

Certificates
Certification	FCC, CSA, UL

Packaging content
Cables included	RS-232, USB cable
Quick installation guide	Yes

Sustainability
Sustainability certificates	ENERGY STAR

Weight & dimensions
Width	480 mm
Depth	683 mm
Height	86 mm
Weight	44.3 kg

Packaging data
Screws included	Yes
Resource CD	Yes
Software CD	Yes
Package width	600 mm
Package depth	980 mm
Package height	254 mm
Package weight	51.7 kg

Logistics data
Products per pallet	8 pc(s)
Harmonized System (HS) code	85078000

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
