APC BY SCHNEIDER ELECTRIC

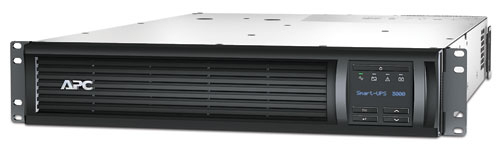

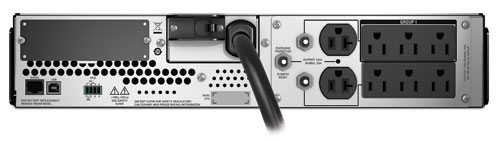

APC SMT3000RM2U uninterruptible power supply (UPS) 3 kVA 2700 W 8 AC outlet(s)

Part number SMT3000RM2U

APC SMART-UPS 3000VA RM 2U LCD 120V

  • 3 kVA 2700 W
  • 8 AC outlet(s)
  • Sealed Lead Acid (VRLA)
  • Rackmount Black
Manufacturer
APC BY SCHNEIDER ELECTRIC
Part number
SMT3000RM2U
Condition
New
Category
Power & Rack Equipment › Power Equipment
1GPA category
Hardware

Overview

Intuitive LCD interface

Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.

Predictive replace battery date

Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.

Green mode

Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.

Energy meter

Provides actual kilowatt hours of usage for energy conscious users.

Outlet group control

Turn on/off, reboot or shut down select outlet groups to save dispatching technicians to remote locations (for UPSs with switched outlet groups).

Sequenced shutdown and restart

Configure select outlet groups to shut down and turn on in a pre-determined order (for UPSs with switched outlet groups).

InfraStruXure Central compatible

Enables centralized management via APC InfraStruXure® Central.

Pure sine wave output on battery

Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.

Single switched outlet group

Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.

Sine wave output

Eliminates humming and heat generated when powering tubelights and fans.

Battery failure notification

Provides early-warning fault analysis on batteries enabling timely preventive maintenance

LED Indicators

Provide easy-to-read status of the unit and utility power conditions.

Hot-swappable batteries

Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

Disconnected battery notification

Warns when a battery is not available to provide backup power.

Specifications

Features
Output power capacity3 kVA
Output power2700 W
Input operation voltage (min)75 V
Input operation voltage (max)154 V
Input frequency50/60 Hz
Output operation voltage (min)120 V
Output operation voltage (max)120 V
Surge energy rating459 J
Efficiency98%
Noise level55 dB
Audible alarm(s)Yes
Ports & interfaces
AC outlet typesNEMA 5–15R, NEMA 5–20R
AC outlets quantity8 AC outlet(s)
Battery
Battery technologySealed Lead Acid (VRLA)
Battery recharge time3 h
Design
Form factorRackmount
Rack capacity2U
Cable length2.44 m
Product colourBlack
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 45 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 15000 m
Certificates
CertificationCSA,FCC 15 A,UL 1778
Weight & dimensions
Width480 mm
Depth683 mm
Height86 mm
Weight44.3 kg
Packaging data
Package weight51.7 kg
Other features
Battery typeRBC43
InterfaceUSB
Nominal output voltage120 V
Nominal input voltage120 V
Package dimensions (WxDxH)600 x 980 x 254 mm

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
