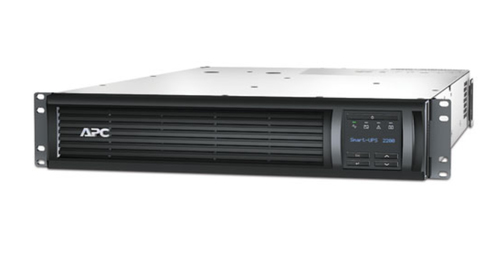

APC Smart-UPS 2200VA LCD RM 2U 120V US uninterruptible power supply (UPS) 2.2 kVA 1980 W 8 AC outlet(s)
Part number SMT2200RMUS
SMART-UPS 2200VA LCD RM 2U 120V
- 2.2 kVA 1980 W
- Waveform: Sine
- 8 AC outlet(s)
- Sealed Lead Acid (VRLA)
- Rackmount Black
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- SMT2200RMUS
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
Energy meter
Provides actual kilowatt hours of usage for energy conscious users.
Sequenced shutdown and restart
Configure select outlet groups to shut down and turn on in a pre-determined order (for UPSs with switched outlet groups).
Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Single switched outlet group
Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
StruxureWare Central compatible
Enables centralized management via StruxureWare Central.
High online efficiency
Reduces utlility costs, generates less heat.
SmartSlot
Customize UPS capabilities with management cards.
Cold-start capable
Provides temporary battery power when the utility power is out.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Specifications
| Output power capacity | 2.2 kVA |
|---|---|
| Output power | 1980 W |
| Waveform | Sine |
| Input operation voltage (min) | 75 V |
| Input operation voltage (max) | 154 V |
| Input frequency | 50/60 Hz |
| Surge energy rating | 530 J |
| Efficiency | 98% |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 5% |
| Noise level | 55 dB |
| Audible alarm(s) | Yes |
| Audible alarm modes | Battery replacement |

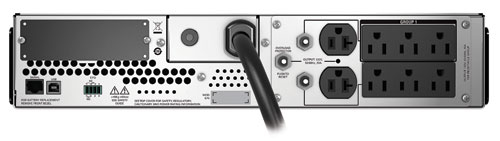

| AC outlet types | NEMA 5–15R, NEMA 5–20R |
|---|---|
| Power plug | NEMA 5-20P |
| AC outlets quantity | 8 AC outlet(s) |
| USB 2.0 ports quantity | 1 |
| Battery technology | Sealed Lead Acid (VRLA) |
|---|---|
| Typical backup time at full load | 5.4 min |
| Typical backup time at half load | 15.2 min |
| Battery recharge time | 3 h |
| Replacement battery cartridge | RBC43 |
| Form factor | Rackmount |
|---|---|
| Rack capacity | 2U |
| Cable length | 2.44 m |
| Product colour | Black |
| Display type | LCD |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Width | 480 mm |
|---|---|
| Depth | 683 mm |
| Height | 86 mm |
| Weight | 42.3 kg |
| Package weight | 49.7 kg |
|---|
| Nominal output voltage | 120 V |
|---|---|
| Nominal input voltage | 120 V |
| Output connection type | 6 x NEMA 5-15R & 2 x NEMA 5-20R |
| Package dimensions (WxDxH) | 600 x 980 x 254 mm |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
