APC BY SCHNEIDER ELECTRIC

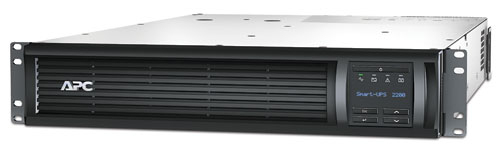

APC Smart-UPS 2200VA uninterruptible power supply (UPS) 2.2 kVA 1980 W 8 AC outlet(s)

Part number SMT2200RM2U

SMART-UPS 2200VA LCD RM 2U 120V

  • 2.2 kVA 1980 W
  • 8 AC outlet(s)
  • Sealed Lead Acid (VRLA)
  • Rackmount Black
Manufacturer
APC BY SCHNEIDER ELECTRIC
Part number
SMT2200RM2U
Condition
New
Category
Power & Rack Equipment › Power Equipment
1GPA category
Hardware

Overview

Intuitive LCD interface

Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.

Predictive replace battery date

Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.

Green mode

Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.

Energy meter

Provides actual kilowatt hours of usage for energy conscious users.

Sequenced shutdown and restart

Configure select outlet groups to shut down and turn on in a pre-determined order (for UPSs with switched outlet groups).

InfraStruXure Central compatible

Enables centralized management via APC InfraStruXure® Central.

Pure sine wave output on battery

Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.

Single switched outlet group

Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.

High online efficiency

Reduces utlility costs, generates less heat.

SmartSlot

Customize UPS capabilities with management cards.

Cold-start capable

Provides temporary battery power when the utility power is out.

Temperature-compensated battery charging

Prolongs battery life by regulating the charge voltage according to battery temperature.

Specifications

Features
Output power capacity2.2 kVA
Output power1980 W
Input frequency50/60 Hz
Surge energy rating530 J
Efficiency98%
Noise level55 dB
Audible alarm(s)Yes
Ports & interfaces

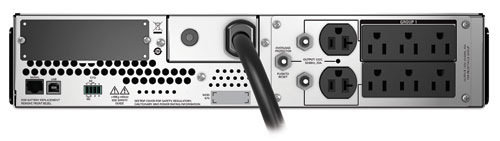

AC outlet typesNEMA 5–15R, NEMA 5–20R
AC outlets quantity8 AC outlet(s)
Battery
Battery technologySealed Lead Acid (VRLA)
Battery recharge time3 h
Design
Form factorRackmount
Rack capacity2U
Cable length2.44 m
Product colourBlack
LED indicatorsYes
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 45 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 15000 m
Certificates
Compliance certificatesRoHS
CertificationCSA,FCC 15 A,UL 1778
Weight & dimensions
Width480 mm
Depth683 mm
Height86 mm
Weight42.3 kg
Packaging data
Package weight49.7 kg
Other features
Battery typeRBC43
InterfaceUSB
Nominal output voltage120 V
Nominal input voltage120 V
Package dimensions (WxDxH)600 x 980 x 254 mm
