APC SMT2200J uninterruptible power supply (UPS) 2.2 kVA 1980 W 10 AC outlet(s)
Part number SMT2200J
APC SMART-UPS 2200VA LCD 100V
- 2.2 kVA 1980 W
- Waveform: Sine
- 10 AC outlet(s)
- Sealed Lead Acid (VRLA)
- Tower Black
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- SMT2200J
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview

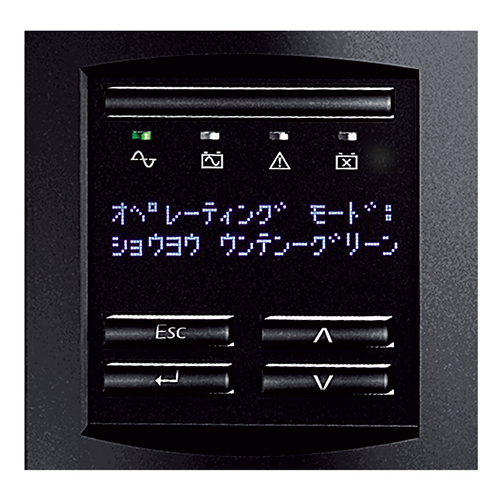

Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
High frequency design
Reduces or eliminates bulky transformers resulting in lighter units for ease of handling.
Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
Energy meter
Provides actual kilowatt hours of usage for energy conscious users.
Single switched outlet group
Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
High online efficiency
Reduces utlility costs, generates less heat.
EPO
Attach the device to an Emergency Power Off (EPO) system so that power can be turned off in an emergency situation.
Pure sinewave battery backup
Prevents interruptions, lost pre-sets, missed DVR recordings, lost multimedia server data and premature projector bulb wear and tear when the power goes out.
SmartSlot
Customize UPS capabilities with management cards.
Field-replaceable power distribution panel
Ensures compatibility with equipment that has different plug types.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Specifications
| Output power capacity | 2.2 kVA |
|---|---|
| Output power | 1980 W |
| Waveform | Sine |
| Input operation voltage (min) | 70 V |
| Input operation voltage (max) | 127 V |
| Input frequency | 50/60 Hz |
| Maximum current | 24 A |
| Surge energy rating | 680 J |
| Efficiency | 97.4% |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 5% |
| Noise level | 55 dB |
| Audible alarm(s) | Yes |
| AC outlet types | NEMA 5–15R, NEMA 5–20R |
|---|---|
| AC outlets quantity | 10 AC outlet(s) |
| Battery technology | Sealed Lead Acid (VRLA) |
|---|---|
| Typical backup time at full load | 6.7 min |
| Typical backup time at half load | 24.1 min |
| Battery recharge time | 4 h |
| Form factor | Tower |
|---|---|
| Cable length | 1.83 m |
| Product colour | Black |
| Display type | LCD |
| LED indicators | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Compliance certificates | RoHS |
|---|---|
| Certification | UL 1778, VCCI Class A REACH |
| Width | 197 mm |
|---|---|
| Depth | 544 mm |
| Height | 435 mm |
| Weight | 56 kg |
| Package weight | 64 kg |
|---|
| Nominal output voltage | 100 V |
|---|---|
| Nominal input voltage | 100 V |
| Electrical output connections | 8 x NEMA 5-15R & 2 x NEMA 5-20R |
| Package dimensions (WxDxH) | 381 x 762 x 559 mm |
